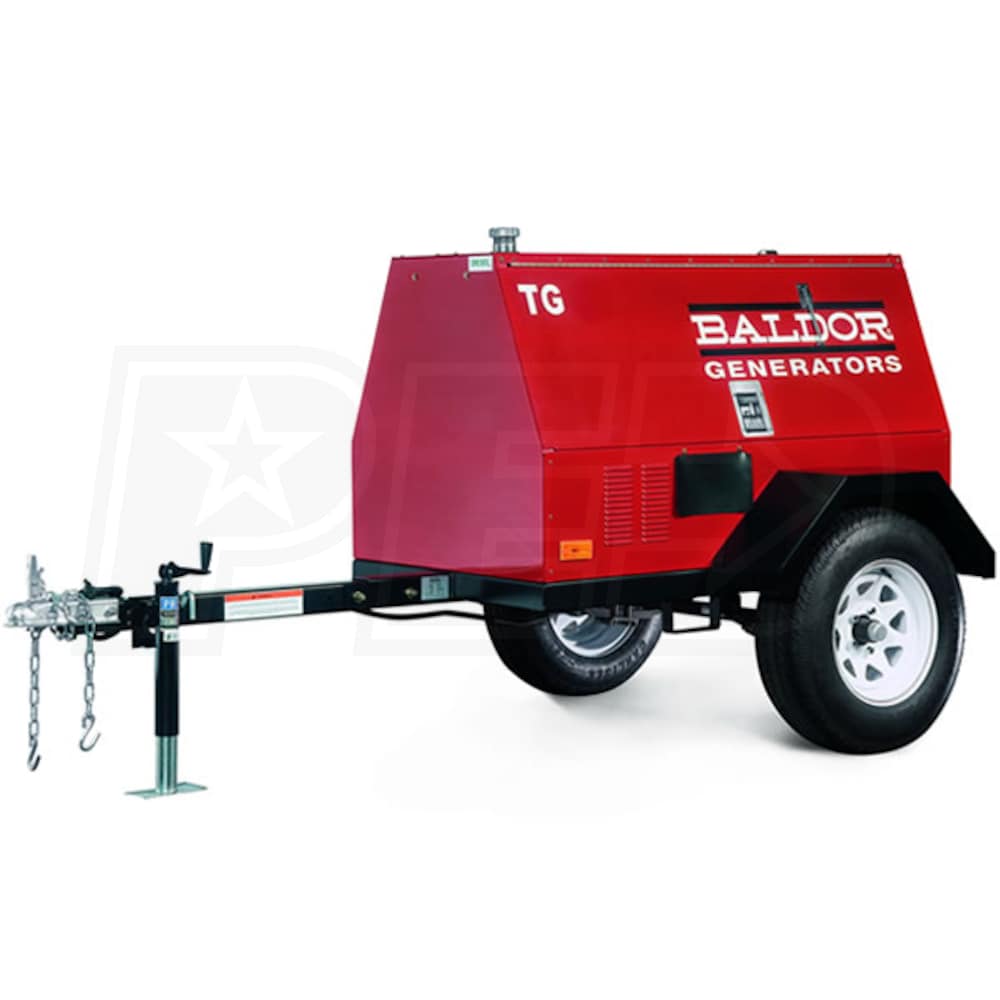

Baldor TG10T - 10kW Industrial Towable Diesel Generator (Light Tower Ready)

Model:

TG10T

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Baldor TG10T - 10kW Industrial Towable Diesel Generator (Light Tower Ready)
Baldor TG10T - 10kW Industrial Towable Diesel Generator (Light Tower Ready)
Model: TG10T
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Tow-Behind

Run Watts

10,000 Rated Watts

Surge Watts

10,000
Starting Watts

Fuel

Diesel

Engine

Kubota

  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • Accomodates Baldor Light Tower (TGLMT)
  • 4 x 1000 Metal Halide light tower is sold separately
  • 1.26L Liquid-Cooled Kubota Diesel Engine (Tier 4 Compliant)
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Large 50-Gallon Internal Fuel Tank
  • Provides up to 83 hours of run time @ 1/2 load
  • Brushless Alternator
  • For long life and low maintenanc while providing <5% THD
  • Digital Genset Controller
  • Monitiors engine/genset faults, running hours & battery volts
  • Side Mounted Weatherproof Receptacles
  • Recessed panel design provides protection from the elements
  • Internally Mounted Circuit Breakers
  • Provides added protection to all receptacles on genset
  • Single Axle Trailer w/ Front Leveling Jack
  • Combined with a high quality suspension & saftey lights
  • Includes
  • Intergal Fork Lift Pockets & Engine Starting Battery

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA L14-30R
TG10T
specs product image PID-10908
Overview
Weight
1080 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
114 Inches
Product Width
54 Inches
Product Height
57 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10000 Watts
Surge Watts
10000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Tank Size
50 Gallons
Run Time @ 50% Load
83 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Battery
Included (550 CCA)
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12v Auto Start
HP
17.6 HP
CC
1261 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
2
