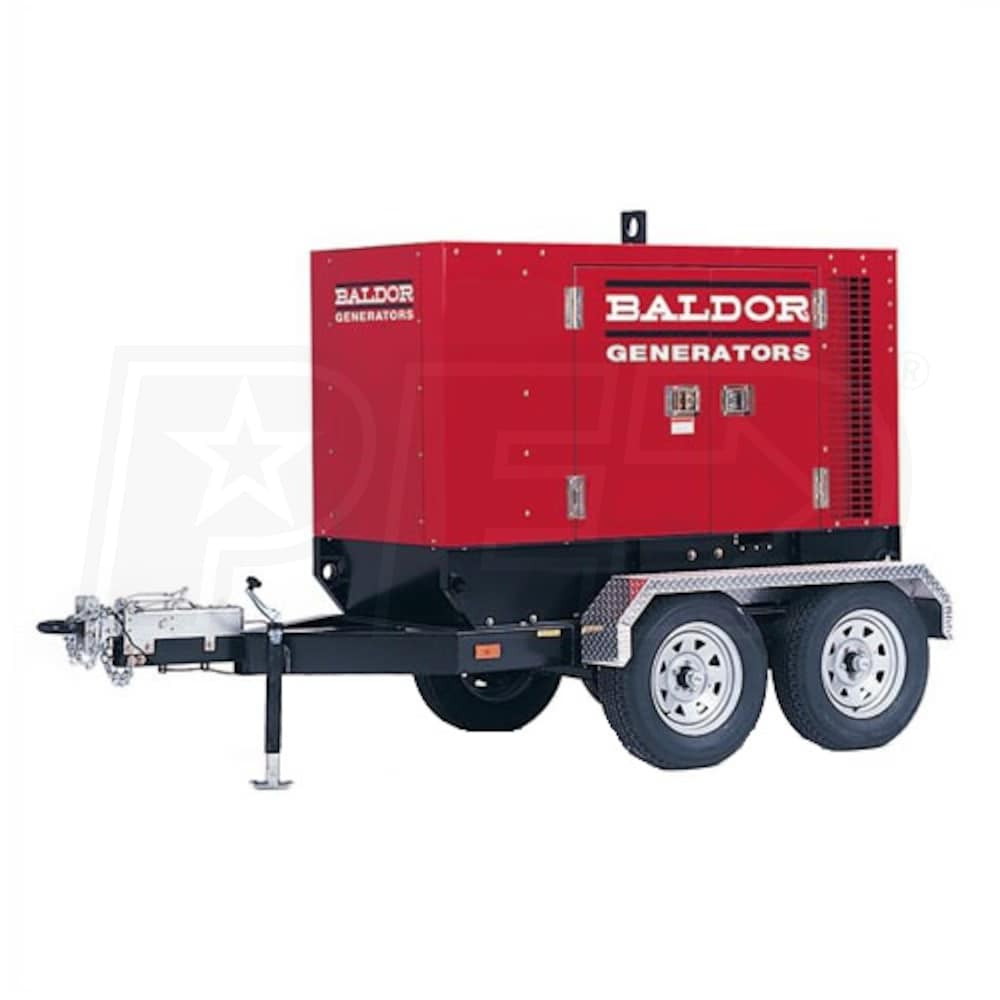

Baldor TS25T - 20kW Industrial Towable Diesel Generator w/ Trailer

Model:

TS25T

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Baldor TS25T - 20kW Industrial Towable Diesel Generator w/ Trailer
Baldor TS25T - 20kW Industrial Towable Diesel Generator w/ Trailer
Model: TS25T
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Tow-Behind

Run Watts

20,000 Rated Watts

Surge Watts

20,000
Starting Watts

Fuel

Diesel

Engine

John Deere

  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • 2.4L John Deere Turbocharged Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Large 50-Gallon Integral Single-Wall XLPE Fuel Tank
  • Provides up to 50 hours of run time @ 1/2 load
  • Manual or Automatic Start w/ Start/Stop/Auto Switch
  • Can be used w/ automatic transfer switch for standby applications
  • Digital Genset Controller w/ Analog Gauges & Meters
  • Easily monitor oil pressure, coolant temp and battery volts
  • Generator output volts, hertz and amps w/ phase selection
  • Voltage Selectable Switch For Main Voltage Selections
  • Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
  • Added Features:
  • XL Access Doors, Single Point Lifting Eye and Alarm Horn
  • High Water Temp Shutdown, Low Oil Pressure Shutdown
  • Fuel-Water Separator, Illuminated Control Panel
  • Starting Battery Included
  • Single Axle Trailer w/ 2-Inch Ball Hitch
  • Crane recommended for delivery

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
TS25T
specs product image PID-4344
Overview
Weight
2530 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
130 Inches
Product Width
62 Inches
Product Height
73 Inches
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
Diesel
Tank Size
50 Gallons
Run Time @ 50% Load
50 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included (675 CCA)
Grade Type
Professional
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
48 HP
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
CS6364/5 - 50-Amp Twistlock
2
