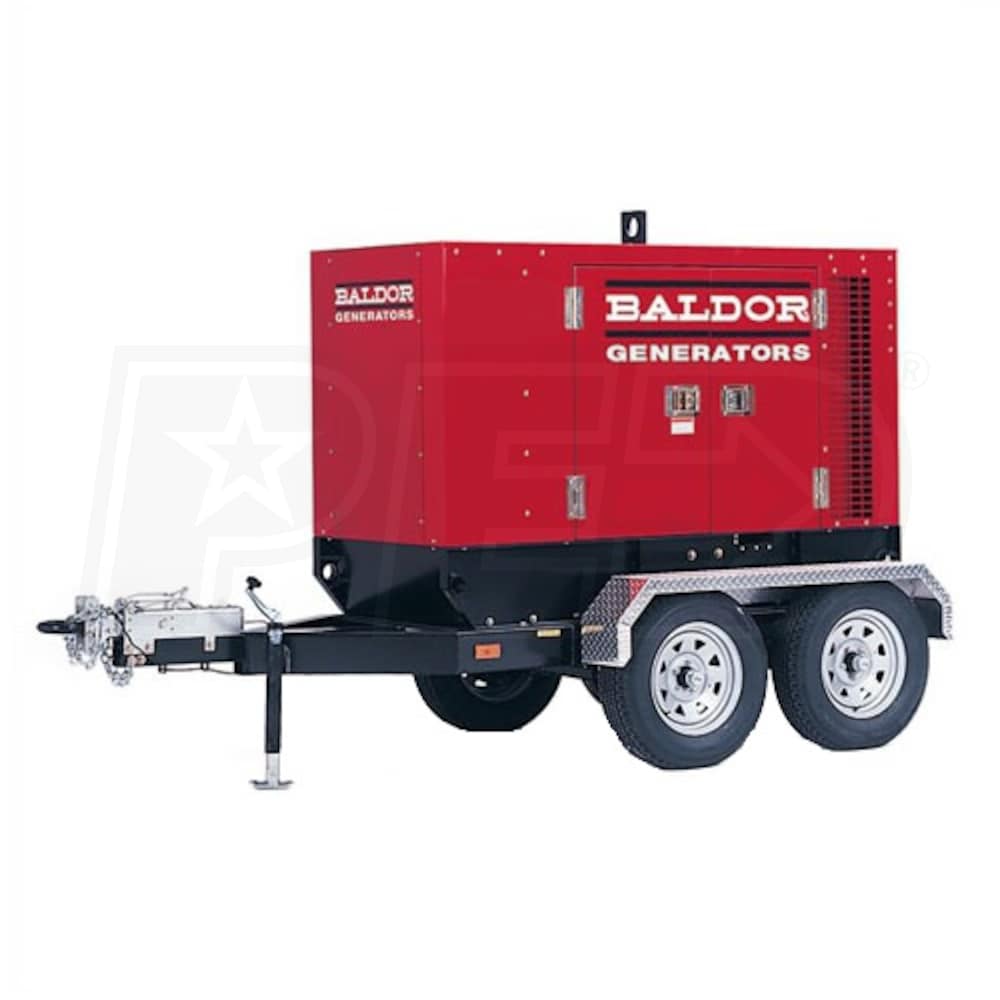

Baldor TS60T - 49kW Industrial Towable Diesel Generator w/ Trailer

Model:

TS60T

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Baldor TS60T - 49kW Industrial Towable Diesel Generator w/ Trailer
Baldor TS60T - 49kW Industrial Towable Diesel Generator w/ Trailer
Model: TS60T
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Tow-Behind

Run Watts

49,000 Rated Watts

Surge Watts

49,000
Starting Watts

Fuel

Diesel

Engine

John Deere

  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • 2.4L John Deere Turbocharged Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Large 80-Gallon Integral Single-Wall XLPE Fuel Tank
  • Provides up to 36 hours of run time @ 1/2 load
  • Manual or Automatic Start w/ Start/Stop/Auto Switch
  • Can be used w/ automatic transfer switch for standby applications
  • Digital Genset Controller w/ Analog Gauges & Meters
  • Easily monitor oil pressure, coolant temp and battery volts
  • Generator output volts, hertz and amps w/ phase selection
  • Voltage Selectable Switch For Main Voltage Selections
  • Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
  • Added Features:
  • XL Access Doors, Single Point Lifting Eye and Alarm Horn
  • High Water Temp Shutdown, Low Oil Pressure Shutdown
  • Fuel-Water Separator, Illuminated Control Panel
  • Starting Battery Included
  • Dual-Axle Trailer w/ Hydraulic Brakes & 2-Inch Ball Hitch
  • Crane recommended for delivery

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
TS60T
specs product image PID-7278
Overview
Weight
3590 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
146 Inches
Product Width
62 Inches
Product Height
87 Inches
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
49000 Watts
Surge Watts
49000 Watts
Fuel Type
Diesel
Tank Size
80 Gallons
Run Time @ 50% Load
36 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
80 HP
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
3
CS6364/5 - 50-Amp Twistlock
3
