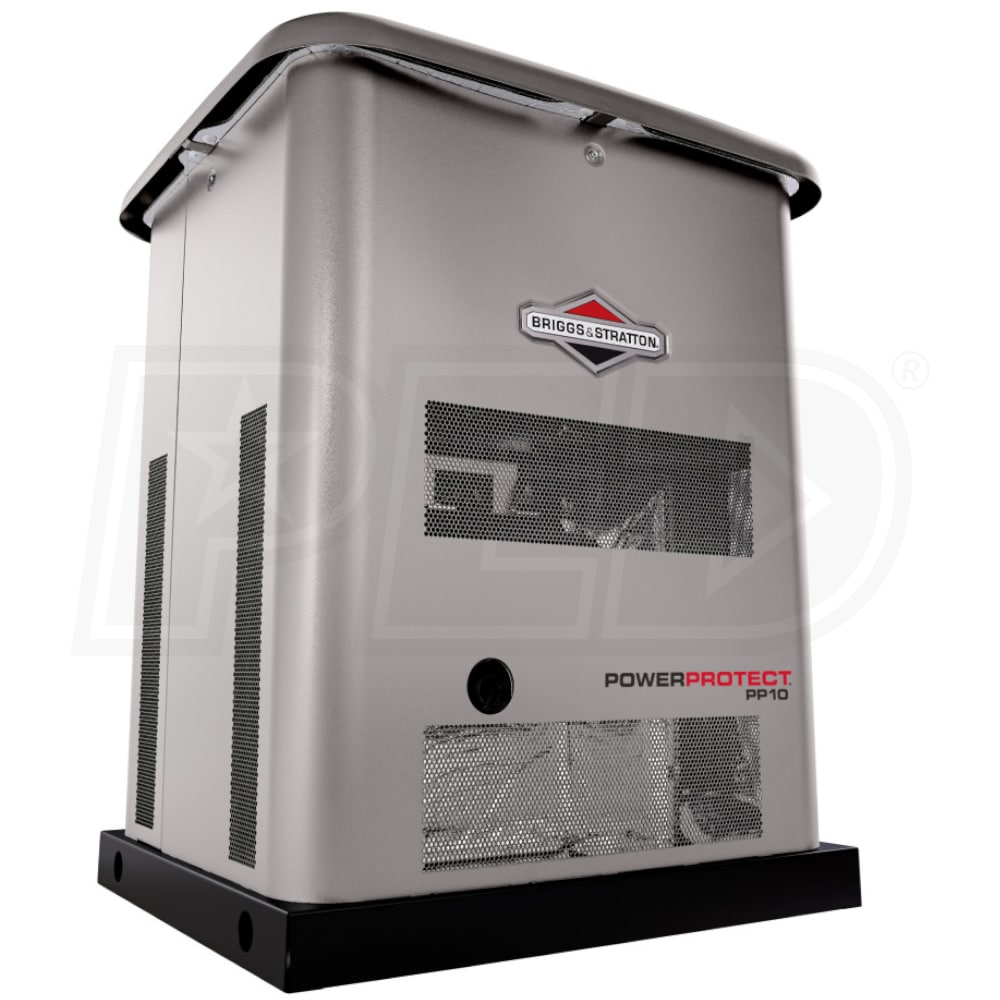

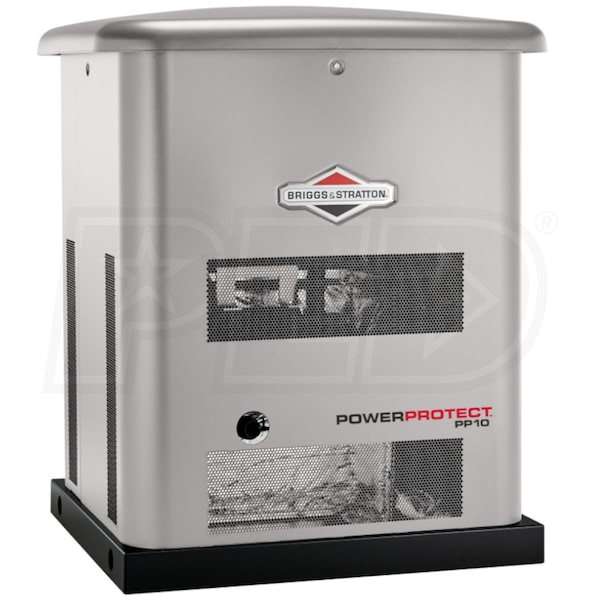

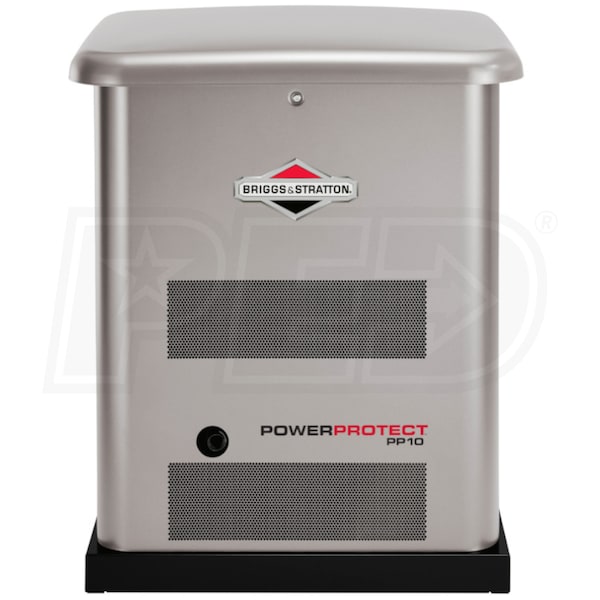

Briggs & Stratton Power Protect™ PP10 - 10kW Steel Home Standby Generator

Model:

040684

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Briggs & Stratton Power Protect™ PP10 - 10kW Steel Home Standby Generator
Briggs & Stratton Power Protect™ PP10 - 10kW Steel Home Standby Generator
Model: 040684
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

10,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Briggs and Stratton Vanguard



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 10kW (LP) / 8kW (NG) Automatic Standby Generator
  • Automatically starts when utility power is lost
  • Industry Leading 6-Year Warranty
  • Parts, labor & travel covered for 6-Years
  • Compact Size
  • 50% Smaller than competitive generators in its class
  • Advance Power Management (Transfer Switch Sold Separately)
  • Combine with ATS to manage up to two 3-Ton AC units
  • Briggs & Stratton V-Twin Commercial Grade Vanguard® Engine
  • Provides years of long lasting, reliable standby power
  • Streamlined, Space Saving Design
  • Sleek, compact profile blends in next to central AC unit
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18" from structure
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Auto Fuel Shutoff & Easier Maintenance
  • Provides added safety during an emergency
  • More service access & user-friendly control panel
  • Includes Schaeffer® Full Synthetic Generator Oil
  • Provides enhanced cold weather protection to -20°F.
  • Includes Battey Charger
  • Requires Starting Battery (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

040684
specs product image PID-115521
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
272 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
6 Years
Product Style
Standby Generator
Product Length
28 Inches
Product Width
24.5 Inches
Product Height
34.8 Inches
UPC
011675406844
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
8000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
111 ft³/hr
NG Fuel Consumption @ 100% Load
169 ft³/hr
LP Fuel Consumption @ 50% Load
1.2 gallons/hr
LP Fuel Consumption @ 100% Load
1.9 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Steel
Circuit Breaker Size
50 Amps
A/C Ton Rating
3-Tons
Mounting Pad
Steel (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Prime Power
No
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
Consumer Engine Warranty
6 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
