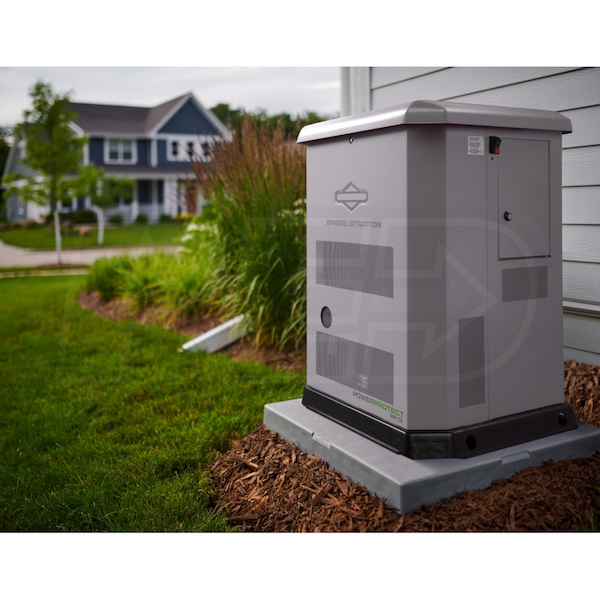

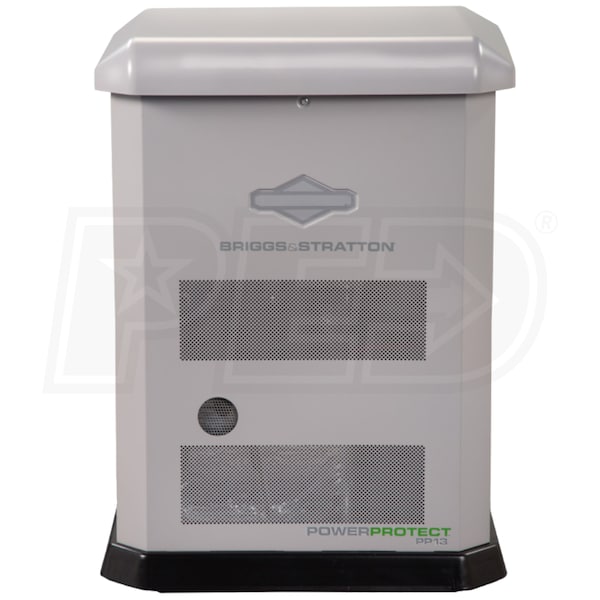

Briggs & Stratton PowerProtect™ PP13 - 13kW Standby Generator System (100A 16-Circuit)
Model:
040742
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
13,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
- B&S PP13 - 13kW (LP) / 11.5kW (NG) Home Standby Generator System
- Automatically powers your home in seconds after sensing an outage*
- Compact Size
- 39% Smaller than competitive generators in its class
- NGMax™ Technology
- Provides more power on natural gas compared to PP12
- Runs on Natural Gas (NG) or Liquid Propane (LP)
- Simple field conversion for easier installations

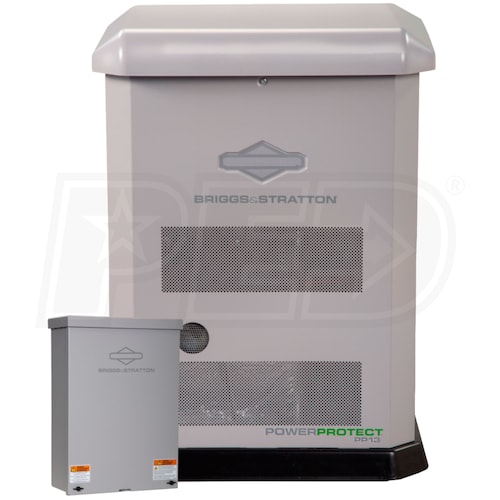

- 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center
- Select up to 16-priority circuits; Rated at 100-Amps @ 240-Volts
- NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
- ACCM-II Power Control Module Transfer Switch (2 x 4-Ton AC)
- Computer controlled load management power switching
- Expand your generators range by prioritizing powered circuit
- Commercial-Grade Vanguard® Air-Cooled Engine
- Full-pressure lubrication system w/ spin-on oil filter
- Advanced debris management for enhanced durability
- Premium Alternator - Less Than 5% THD
- Improved frequency (HZ) regulation for cleaner power
- Flexible Placement (Please Verify Local Building Codes)
- Tested against tough National Fire Protection Agency standards
- Can be placed as close as 18" from structure
- New Upgraded Control System
- LCD display w/ multi-line text graphics
- Eco-Cise™ Weekly Test Mode
- Low idle mode w/ 16-second weekly test cycle
- Dura-Zen™ Coated, Corrosion Resistant Aluminum Enclosure & Base
- Certified to withstand hurricane-force winds up to 186 mph
- Independent 3-Stage Battery Charger
- Provides optimized charge for longer battery life
- Includes Schaeffer® Full Synthetic Generator Oil
- Provides enhanced cold weather protection to -20°F
- 7 Year Best in Class Warranty
- Covers parts, labor, and travel for 7-Years
- Assembled & Engineered In The USA
- From foreign and domestic parts
- Requires Starting Battery (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040742
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
315 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
7 Years
Product Style
Standby Generator
Product Length
28.5 Inches
Product Width
25.5 Inches
Product Height
37.6 Inches
UPC
011675407421
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
13000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
11500 Watts
LP Power Capacity
13000 Watts
NG Fuel Consumption @ 50% Load
119 ft³/hr
NG Fuel Consumption @ 100% Load
212 ft³/hr
LP Fuel Consumption @ 50% Load
1.7 gallons/hr
LP Fuel Consumption @ 100% Load
2.9 gallons/hr
Rated Amps
54.2 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Hour Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included (540 CCA)
Enclosure
Steel
Circuit Breaker Size
70 Amps
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Prime Power
No
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
7 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
