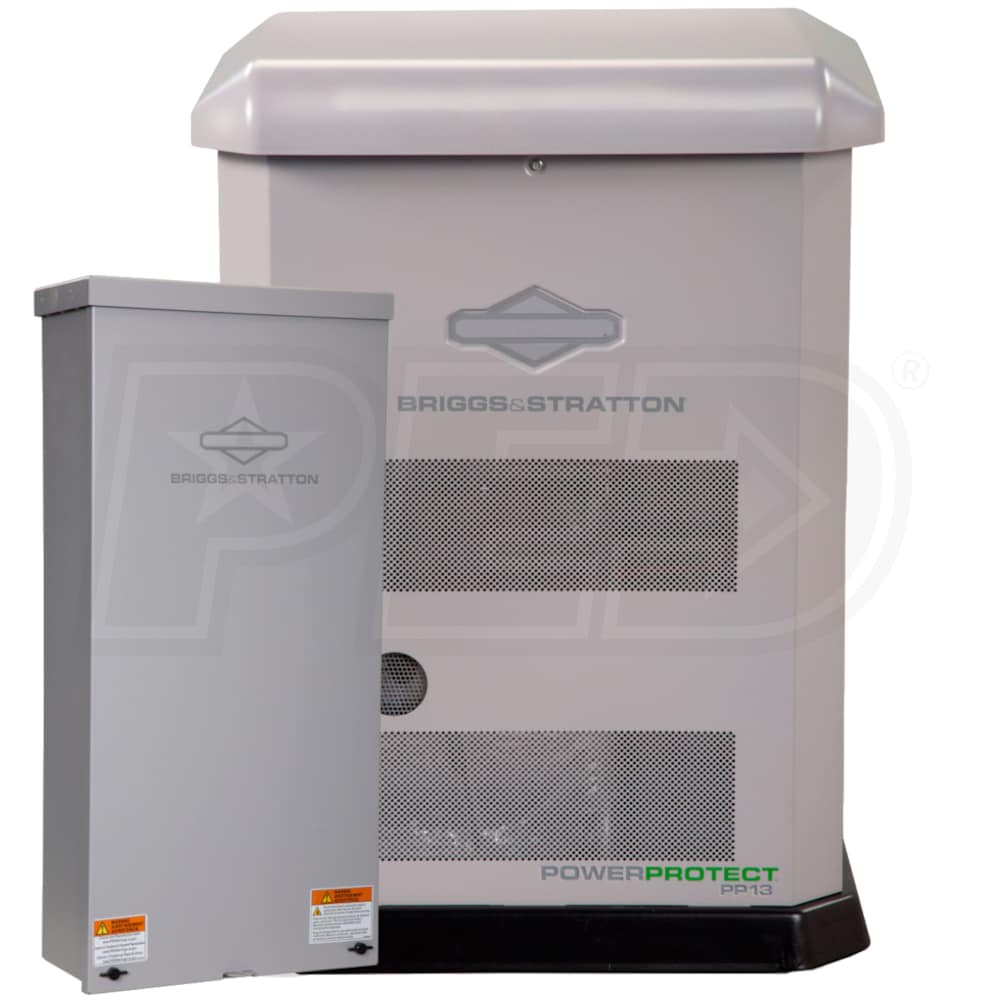

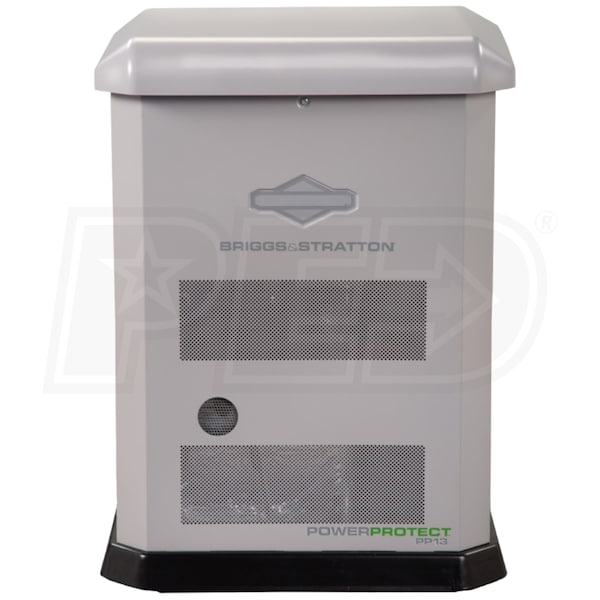

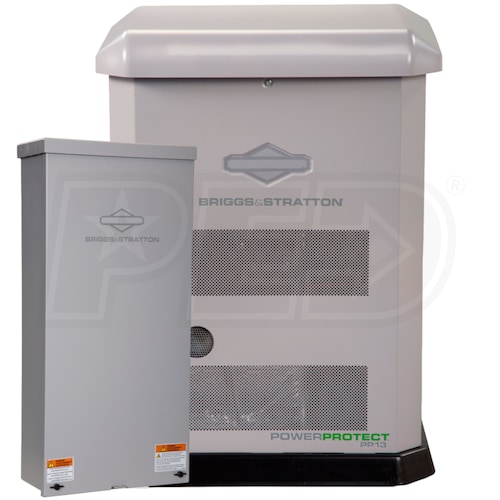

Briggs & Stratton Power Protect™ PP13 - 13kW Generator System (200A Service Disc. + Symphony Choice Kit )
Model:
040743
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
13,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
- B&S PP13 - 13kW (LP) / 11.5kW (NG) Home Standby Generator System
- Automatically powers your home in seconds after sensing an outage*
- 7 Year Best in Class Warranty
- Covers parts, labor, and travel for 7 Years - No Hidden Fees
- Compact Size
- 39% Smaller than competitive generators in its class
- NGMax™ Technology
- Provides more power on natural gas compared to PP12
- Runs on Natural Gas (NG) or Liquid Propane (LP)
- Simple field conversion for easier installations
- Symphony® Power Management
- Prioritize the power needs of your home
- Set and change priorities of high wattage appliances*
- *Requires modules (Sold Separately)
- 200-Amp Service Entrance Rated Automatic Transfer Switch
- Power all circuits without a sub-panel
- NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
- Commercial-Grade Vanguard® Air-Cooled Engine
- Full-pressure lubrication system w/ spin-on oil filter
- Advanced debris management for enhanced durability
- Premium Alternator - Less Than 5% THD
- Improved frequency (HZ) regulation for cleaner power
- Flexible Placement (Please Verify Local Building Codes)
- Tested against tough National Fire Protection Agency standards
- Can be placed as close as 18" from structure
- New Upgraded Control System
- LCD display w/ multi-line text graphics
- Eco-Cise™ Weekly Test Mode
- Low idle mode w/ 16-second weekly test cycle
- Dura-Zen™ Coated, Corrosion Resistant Aluminum Enclosure & Base
- Certified to withstand hurricane-force winds up to 186 mph
- Independent 3-Stage Battery Charger
- Provides optimized charge for longer battery life
- Includes Schaeffer® Full Synthetic Generator Oil
- Provides enhanced cold weather protection to -20°F
- Assembled & Engineered In The USA
- From foreign and domestic parts
- Requires Starting Battery (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040743
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
315 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
7 Years
Product Style
Standby Generator
Product Length
28.5 Inches
Product Width
25.5 Inches
Product Height
37.6 Inches
UPC
011675407438
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
13000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
11500 Watts
LP Power Capacity
13000 Watts
NG Fuel Consumption @ 50% Load
119 ft³/hr
NG Fuel Consumption @ 100% Load
212 ft³/hr
LP Fuel Consumption @ 50% Load
1.7 gallons/hr
LP Fuel Consumption @ 100% Load
2.9 gallons/hr
Rated Amps
54.2 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Hour Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
Circuit Breaker Size
70 Amps
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Prime Power
No
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
7 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
