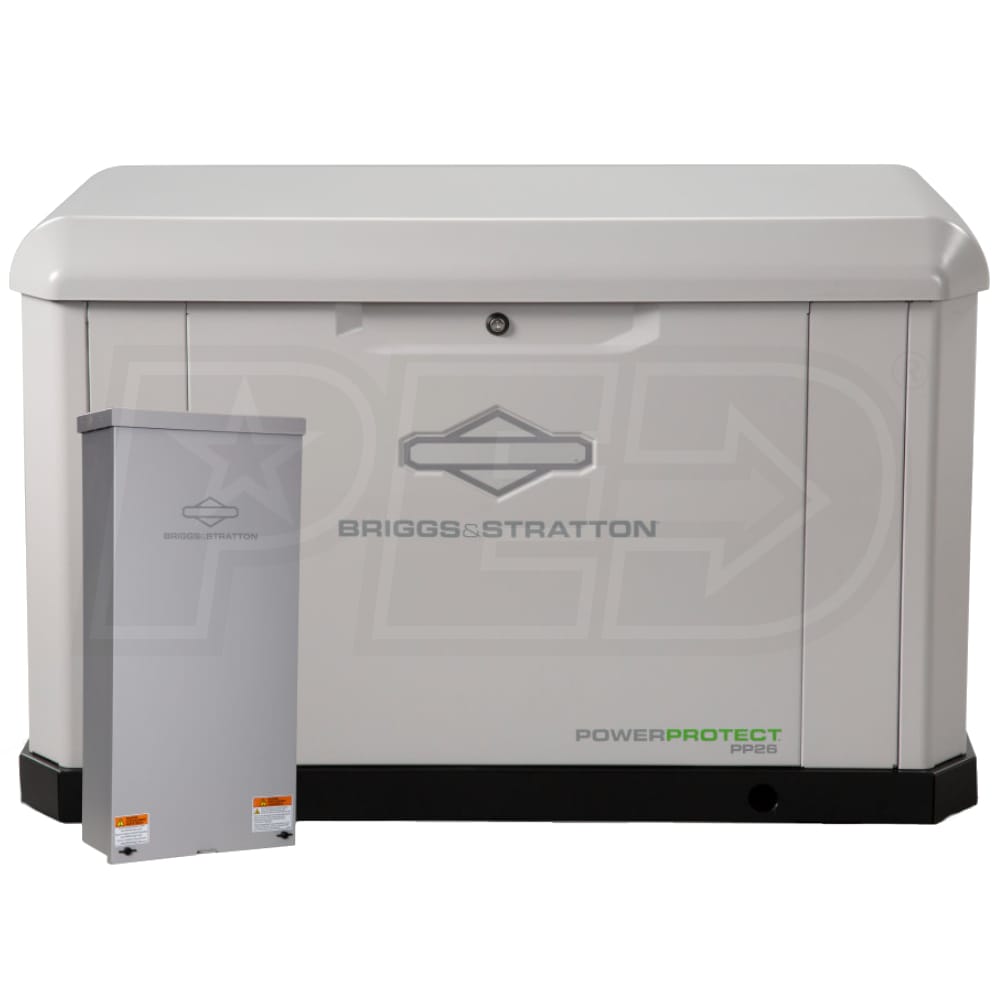

Briggs & Stratton Power Protect™ PP26 - 26/24kW (LP/NG) Standby Gen (400A Split Service - Service Disc. + Symphony Power Mgmt.)
Model:
040802
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
26,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Power Protectâ„¢ PP26 - 26kW (LP) /24kW (NG) Air-Cooled Standby Generator
- Automatically powers your home in seconds after sensing an outage
- 7-Year Limited Warranty
- Parts, labor and travel included for the entire term - That’s up to a $849 value!
- NGMax™ Technology
- Now get 24kW of power when using natural gas
- 400-Amp Service Entrance Auto Transfer Switch (NEMA 3R)
- A UL Listed solution for 2 x 200-Amp Service Breakers
- Easy install - one less switch, less wiring/time, fewer expenses
- Symphony® Power Management
- Prioritize the power needs of your home
- Symphony® Standby Generator Management App
- Set and change priorities of high wattage appliances*
- Monitor your generator's status all from with the touch of a button
- *Requires modules (Sold Separately)
- Runs on Natural Gas (NG) or Liquid Propane (LP)
- Simple field conversion for easier installations
- Super High Output, Commercial-Grade Vanguard Engine
- CDI (Capacitive Discharge Ignition) coils for optimum starting and performance
- Full-pressure lubrication system w/ spin-on oil filter
- Briggs & Stratton Alternator - Less Than 5% THD
- Improved frequency (HZ) regulation for cleaner power
- Automatic Voltage Regulation (+/-1%)
- Helps prevent damaging voltage spikes
- Eco-Ciseâ„¢ Weekly Test Mode
- Low idle mode w/ 16-second weekly test cycle
- Dura-Zenâ„¢ Coated, Corrosion Resistant Aluminum Enclosure & Base
- Certified to withstand hurricane-force winds up to 175 mph
- Flexible Placement (Please Verify Local Building Codes)
- Tested against tough National Fire Protection Agency standards
- Can be placed as close as 18" from structure
- Toolless Panel Removal
- Designed for easier serviceability and maintenance
- Independent 3-Stage Battery Charger
- Provides optimized charge for longer battery life
- Includes Schaeffer® Full Synthetic Generator Oil
- Provides enhanced cold weather protection to -20°F
- Assembled and Engineered In The USA
- From global and domestic parts
- ^*^Suitable for Off-Grid Use or Demand Response Programs^*^
- Certified for non-emergency use
- Partner with your utility company's demand response program
- Receive rewards for helping reduce the overall load on the power grid
- Requires Starting Battery (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040802
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
540 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
7 Years
Product Style
Standby Generator
Product Length
46.5 Inches
Product Width
26.8 Inches
Product Height
28.4 Inches
UPC
011675408022
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
26000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
24000 Watts
LP Power Capacity
26000 Watts
NG Fuel Consumption @ 50% Load
206 ft³/hr
NG Fuel Consumption @ 100% Load
323 ft³/hr
LP Fuel Consumption @ 50% Load
2.6 gallons/hr
LP Fuel Consumption @ 100% Load
4.7 gallons/hr
Rated Amps
108.3 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Hour Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
400-Amps
Battery
Not Included (540 CCA)
Enclosure
Aluminum
Circuit Breaker Size
125 Amps
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Prime Power
No
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
Consumer Engine Warranty
7 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
