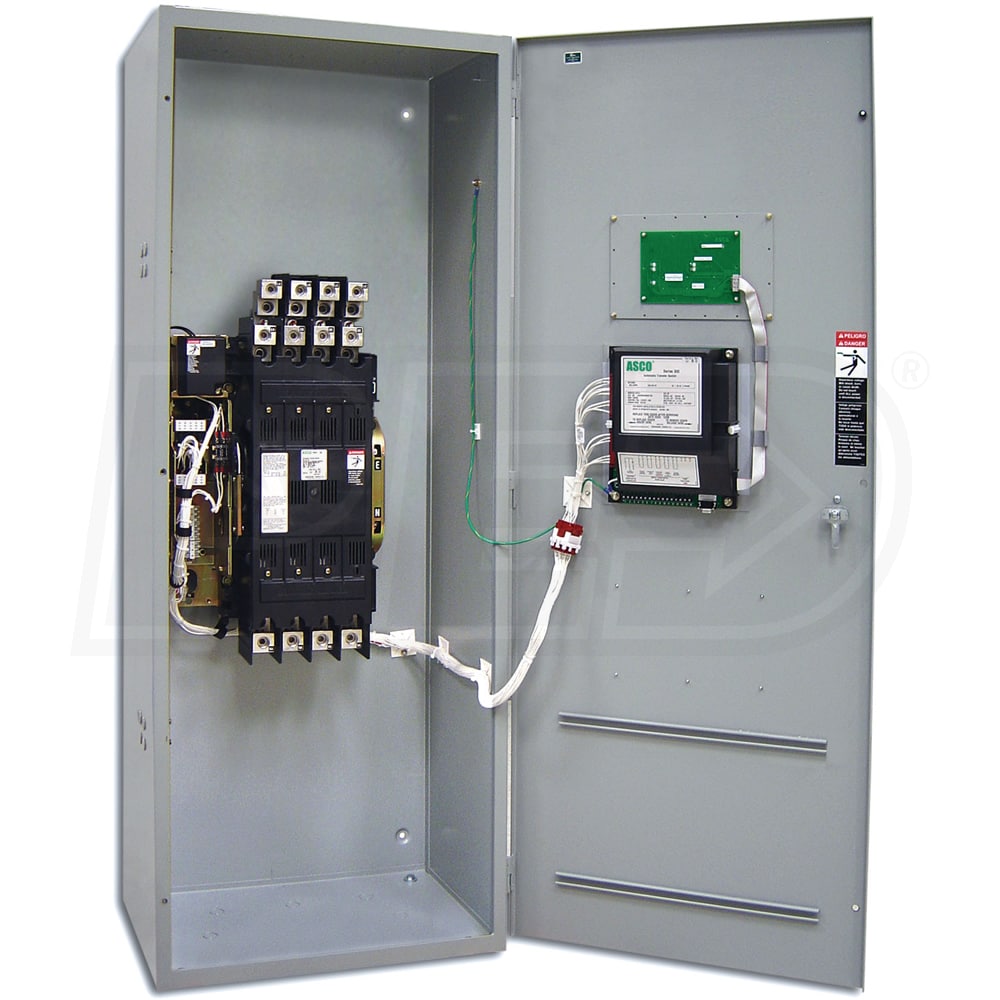

Briggs & Stratton By ASCO Series 285 - 600-Amp Automatic Transfer Switch (120/240V Single-Phase)
Model:
071117
+
Share This Product
Features
Type
Standard
Amp Rating
600
Load Mgmt.
Not Compatible
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- 600-Amp 285 Series By ASCO Automatic Transfer Switch (120/240V Single-Phase)
- Compatible with Briggs & Stratton Liquid Cooled generators
- NEMA 3R Outdoor Rated Enclosure
- Approved for indoor or outdoor installations
- Standard Installation
- Requires a sub-panel for overload protection
- True Double-Throw Contacts w/ Inherent Mechanical Interlocking
- Prevents connection of generator and utility source for maximum safety
- Terminals For Connection of Neutral and Ground Conductors
- Allows for easier installation
- Convenient Control Interface w/ Symbols & Visual Indicators
- Makes it easy to see transfer switch and power source status
- Built-In Auxiliary Contacts For Switch Position Indication
- Provides immediate indication when the switch positions changes
- Additional Features:
- Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
- Listed to UL 1008 for optional standby systems
- Please See Spec Sheet For Additional Compliance & Safety Standards
- 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
071117
Overview
Consumer Warranty
3 Years
UPC
011675711177
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Max Utility Input
600 Amps
Max Generator Input
600 Amps
UL Listed
Yes
