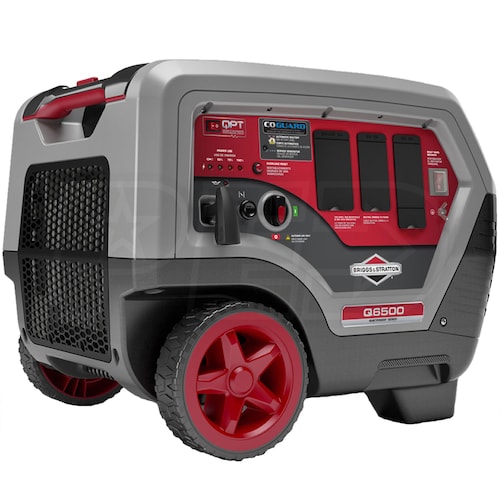

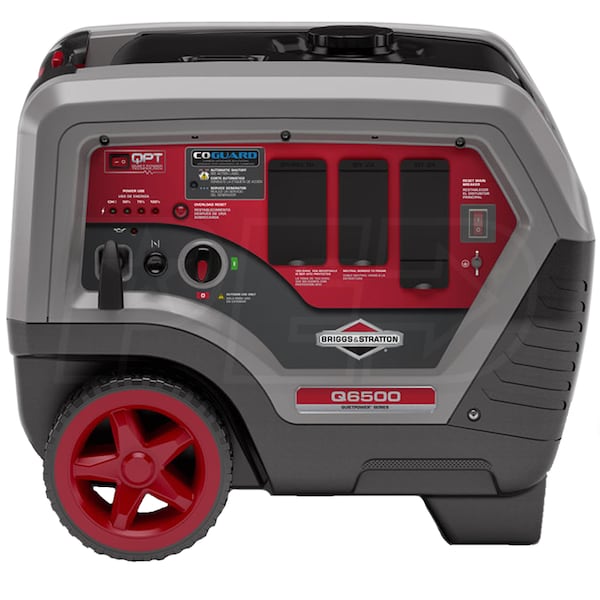

Briggs & Stratton Q6500 - 5000 Watt QuietPower™ Series Portable Inverter Generator w/ CO Guard (49-State)

Model:

30761

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Briggs & Stratton Q6500 - 5000 Watt QuietPower™ Series Portable Inverter Generator w/ CO Guard (49-State)
Briggs & Stratton Q6500 - 5000 Watt QuietPower™ Series Portable Inverter Generator w/ CO Guard (49-State)
Model: 30761
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

5,000 Rated Watts

Surge Watts

6,500
Starting Watts

Fuel

Gasoline

Engine

Briggs and Stratton OHV

  • ***NOT FOR RV USE***
  • Briggs & Stratton Q6500 QuietPower™ Series Inverter Generator
  • Lighter, quieter and more compact than a standard generator
  • Safely power computers, TVs and other sensitive electronics
  • CO Guard Carbon Monoxide Shutdown
  • Shuts down your generator when harmful CO levels accumulate
  • QuietPower Series Inverter Technology
  • Maintains steady, accurate, & clean power output
  • Automatic idle controls adjust engine RPM based on required load
  • 306cc Briggs & Stratton OHV 4-Cycle Engine

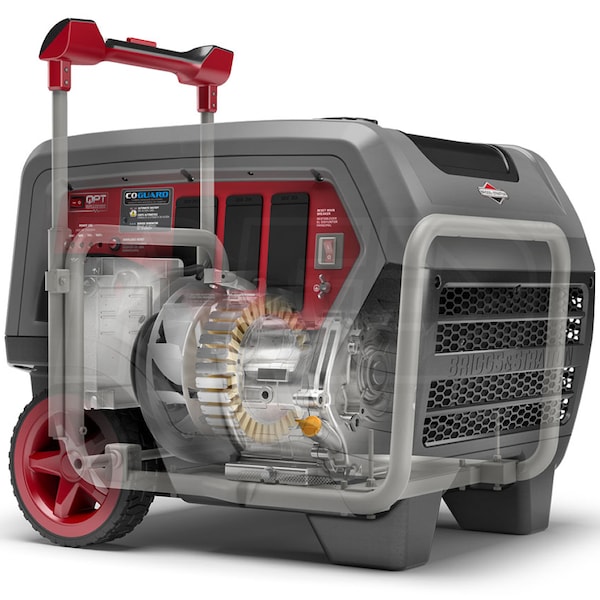

  • Integrated engine/alternator design for highly efficient operation
  • Low Oil Shutdown w/ Low Oil LED
  • Provides added safety to extend engine life
  • 5-Gallon Fuel Tank w/ Fuel Gauge & Power Usage Meter
  • Allows for up to 14-hours of run time @ 25% load
  • Makes it easy to monitor available power
  • Fully-Enclosed, Noise-Reducing Shell
  • More than 60% quieter compared to standard open-frame generators
  • Compact, Lightweight Design
  • 45% more compact and 30% lighter than standard generators
  • Allows for easy, hassle free moving and storage
  • 30-Amp 120/240V (L14-30R) Twistlock Outlet***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
  • Keeps your appliances protected while preventing overload to generator
  • Telescoping Handle & 8" Wheels
  • Makes this generator extremely easy to move around your property
  • Also Includes Oil, Quick Start Guide and Manual
  • 2-Year Limited Warranty
  • Non-CARB Compliant - Not For Sale In California
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
USB
USB
30761
specs product image PID-112242
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
128 Pounds
CARB Compliant
No
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
25.5 Inches
Product Width
21.1 Inches
Product Height
21.43 Inches
UPC
011675307615
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
20.8 Amps
Portability Kit
Never Flat Wheels
Tank Size
5 Gallons
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Recreational
CO Sensing
Yes
Engine
Engine Brand
Briggs and Stratton OHV
Starting System
Recoil Start
CC
306 CC
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
USB
2
