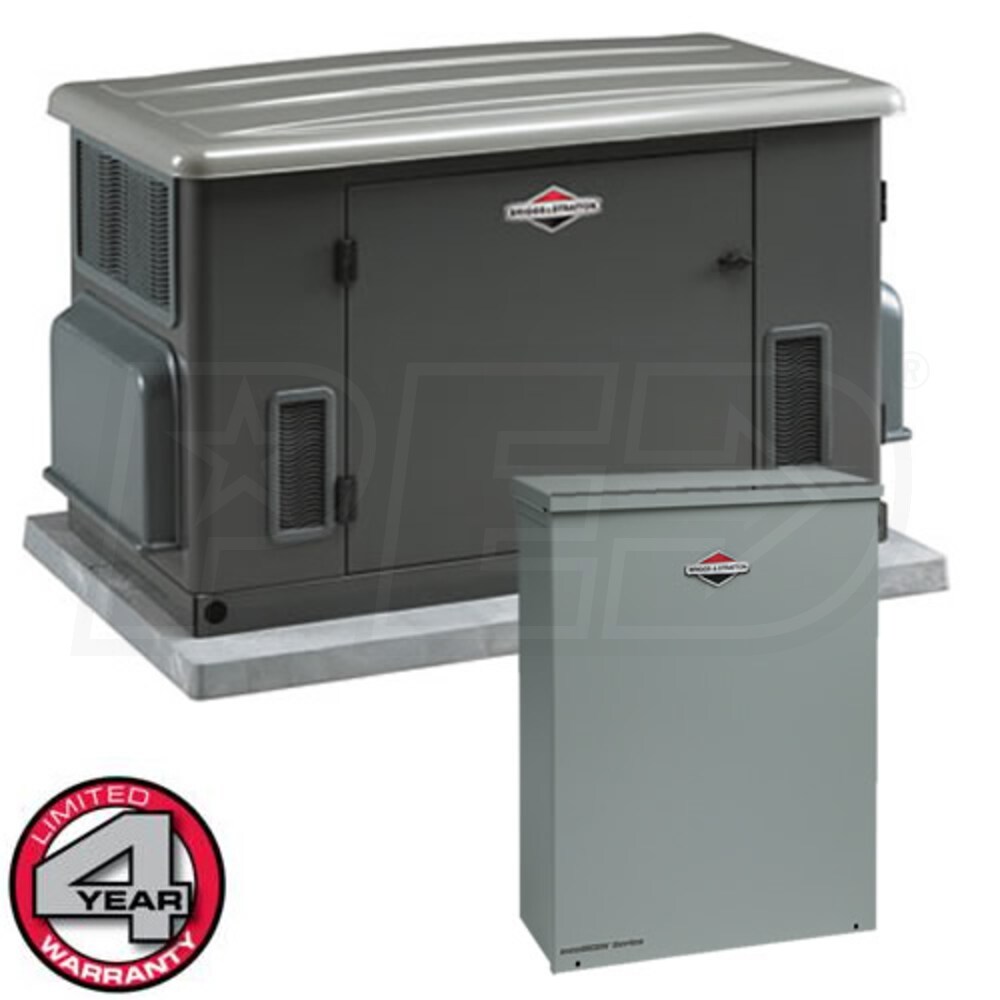

Briggs & Stratton 40302PACK-C - 12kW Home Standby Generator System (100-Amp ATS w/ ACCM)

Model:

40302PACK-C

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 40302PACK-C - 12kW Home Standby Generator System (100-Amp ATS w/ ACCM)
Briggs & Stratton 40302PACK-C - 12kW Home Standby Generator System (100-Amp ATS w/ ACCM)
Model: 40302PACK-C
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

12,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Briggs and Stratton Vanguard

  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 12kW Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • Briggs & Stratton V-Twin Commercial Grade Engine
  • Provides years of long lasting, reliable standby power
  • Sound Shield™ Technology
  • Ensures ultra-quiet, neighbor-friendly operation (Only 65 dB)
  • Additional Generator Features
  • Polymer installation pad & synthetic oil simplifies installation
  • 100-Amp Automatic Transfer Switch (71047)
  • 16 Circuit design allows for you to select priority circuits
  • Rated at 100-Amps @ 240v
  • AC Power Control Module (ACCM-II) Transfer Switch
  • Computer controlled load management power switching
  • Expand your generator's range by prioritizing powered circuits
  • NEMA 3R Enclosure
  • Flexibility in mounting locations - indoor or outdoor
  • Industry Leading 3 Year Consumer Warranty (parts & labor)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

40302PACK-C
specs product image PID-6614
Overview
Weight
503 Pounds
Consumer Warranty
4 Years
Product Style
Standby Generator
Product Length
50 Inches
Product Width
34 Inches
Product Height
31 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
102 ft³/hr
LP Fuel Consumption @ 50% Load
1.13 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included (350 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (16-Circuit)
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
HP
20 HP
CC
627 CC
Consumer Engine Warranty
4 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
20A 120V
8
30A 240V
1
40A 240V
1
50A 240V
2
