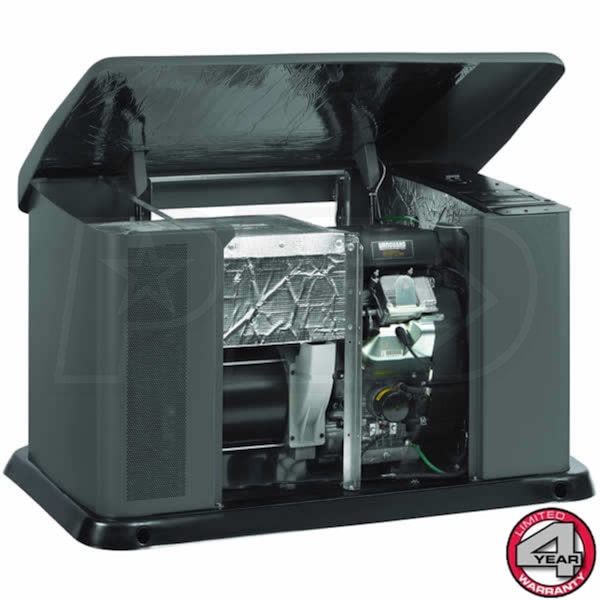

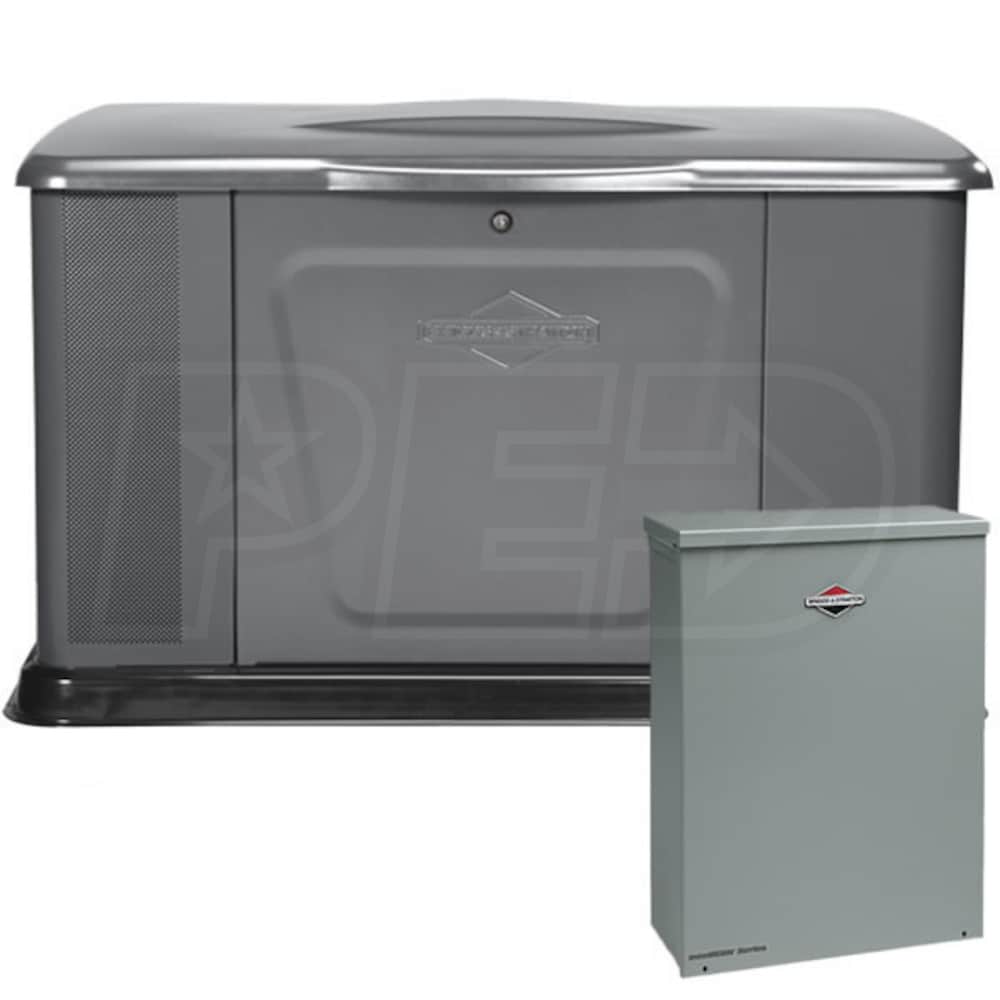

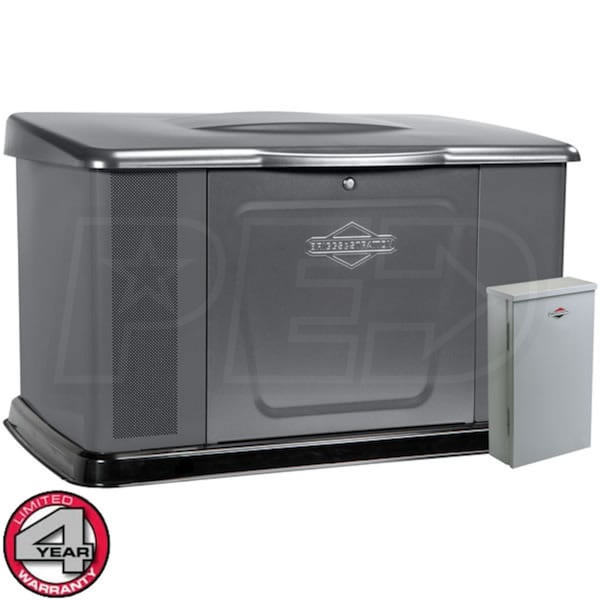

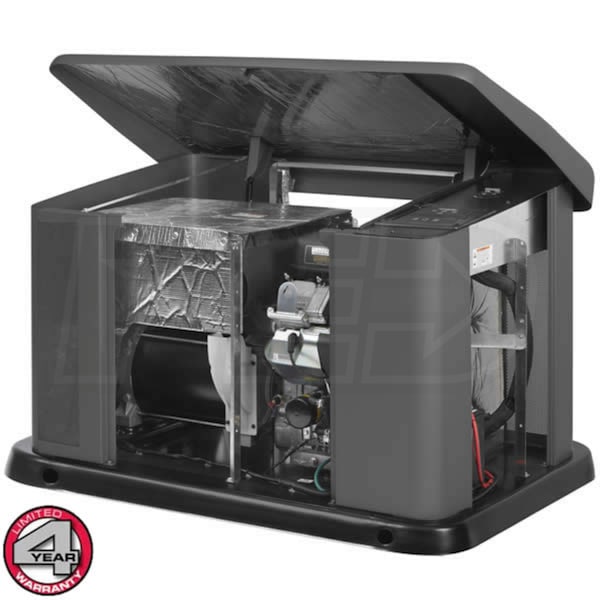

Briggs & Stratton 16kW Standby Generator System (200A Service Disconnect + AC Shedding)
Model: 40401
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
16,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

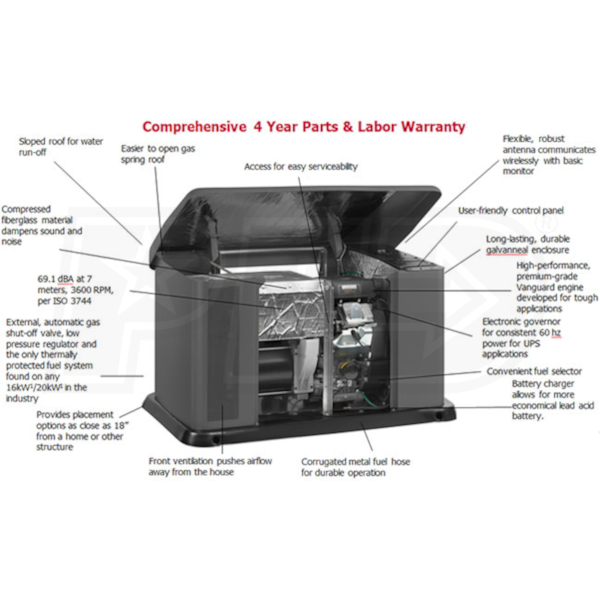

- Fully Automatic Operation - Includes Automatic Transfer Switch
- 16kW (LP) /14.4kW (NG) Automatic Start Power Generator
- Runs off LP or Natural Gas - no gas cans to fill and store
- 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
- Provides years of long lasting, reliable standby power
- ACCM-II Power Control Module Transfer Switch (2 x 4-Ton AC)
- Computer controlled load management power switching
- Expand your generators range by prioritizing powered circuits
- Galvanneal Steel Enclosure
- Automotive rust proofing paint process reduces corrosion
- Front Air Ventilation
- Pushes engine exhaust out the front, away from the home
- Flexible Placement (Please Verify Local Building Codes)
- Tested against tough National Fire Protection Agency standards
- Can be placed as close as 18" from structure
- 200-Amp Service Entrance Rated Automatic Transfer Switch (71046)
- Offers ability to power all circuits without a sub-panel
- Rated at 200-Amps @ 240-Volts (NEMA 3R)
- Turnkey Extras: Auto Battery Charger & Hour Meter
- Industry Leading 5-Year Parts, Labor & Travel Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
40401
Overview
Weight
484 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
UPC
011675404017
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Surge Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
14000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
163 ft³/hr
NG Fuel Consumption @ 100% Load
244 ft³/hr
LP Fuel Consumption @ 50% Load
1.97 gallons/hr
LP Fuel Consumption @ 100% Load
3.14 gallons/hr
Rated Amps
67 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
