Briggs & Stratton 12kW Standby Generator System (200A Srvc Disc. + Power Mgmt.) (Scratch & Dent)
Model:
40531-SD
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
12,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

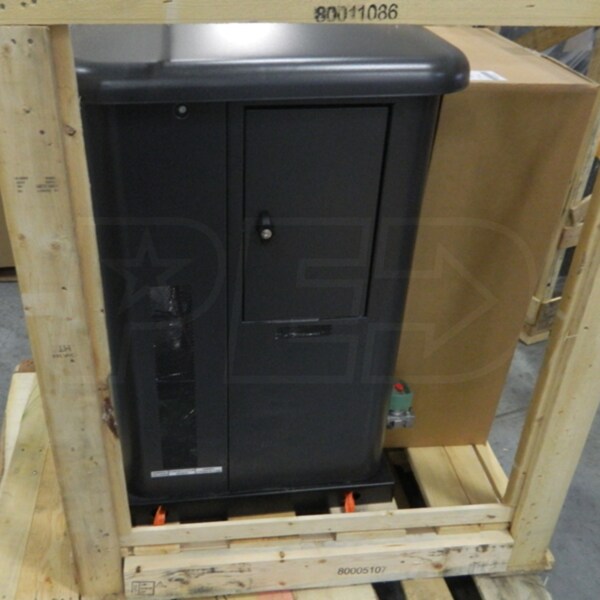

- *Scratch & Dent Model*

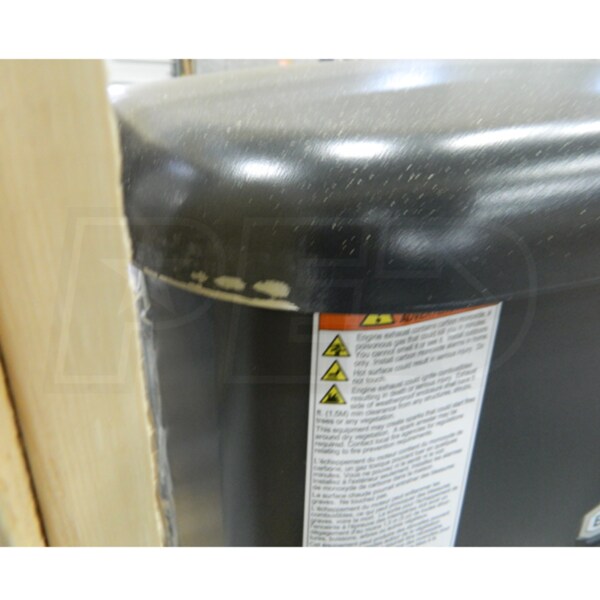

- Scratches on exterior panels
- Shipped to another customer and returned to us, cosmetic only, will not affect operation
- Briggs & Stratton's New 12kW Home Standby Generator System
- Automatically powers your home is seconds after sensing an outage
- Streamlined, Space-Saving Design In A Quieter Package
- Enclosure is 50% smaller and limits sound pressure to 69 dB(A)
- 200-Amp Service Entrance Rated Automatic Transfer Switch (71068)
- Power all circuits without a sub-panel; Rated at 200-Amps @ 240-Volts
- NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
- Symphony® II Power Management (Up To 8 High-Wattage Loads)
- Automatically manages & balances loads while preventing overload
- Uninterrupted, whole house power, with a smaller generator
- 627cc Briggs & Stratton Commercial-Grade Vanguard™ Engine
- Premium sintered iron cylinder sleeves for improved heat transfer
- Full lubrication w/ spin-on oil filter cleans oil & protects engine components
- Brushless Alternator (Less Than 5% THD)
- Provides clean, safe power that won't harm computers or electronics
- Automotive-Grade Galvaneal Steel Enclosure To Resist Rust
- Adv. powder coat paint process for protection from the elements
- Exclusive Front Exhaust Design For Flexible Placement
- Can be placed as close as 18" from structure* (Verify Local Building Codes)
- Industry Leading 5-Year Parts, Labor & Travel Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
40531-SD
Overview
Assembly Required
Yes
Weight
318 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
25 Inches
Product Width
28 Inches
Product Height
37.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Surge Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
117 ft³/hr
LP Fuel Consumption @ 50% Load
1.7 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
