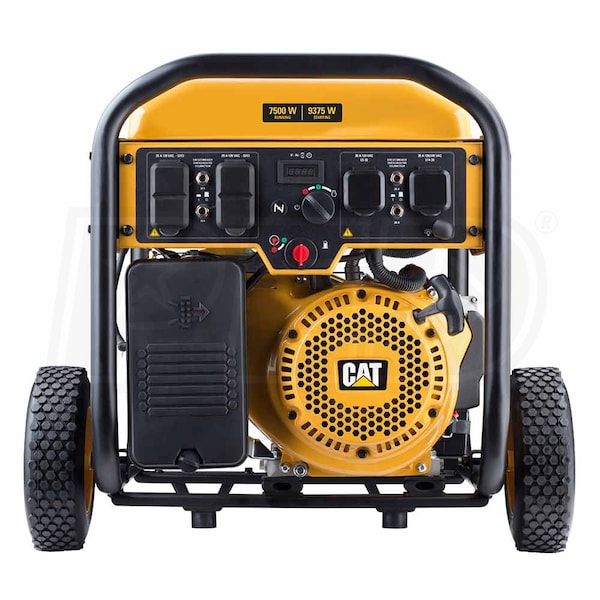

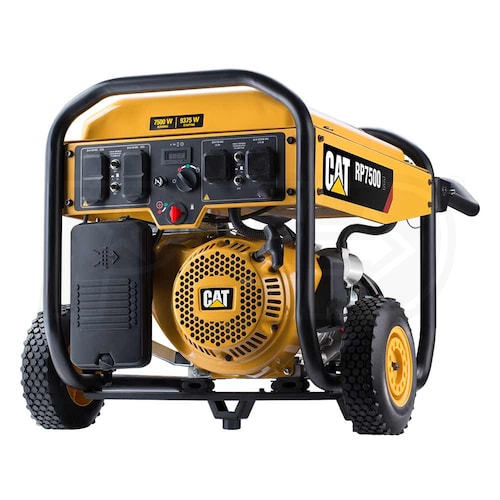

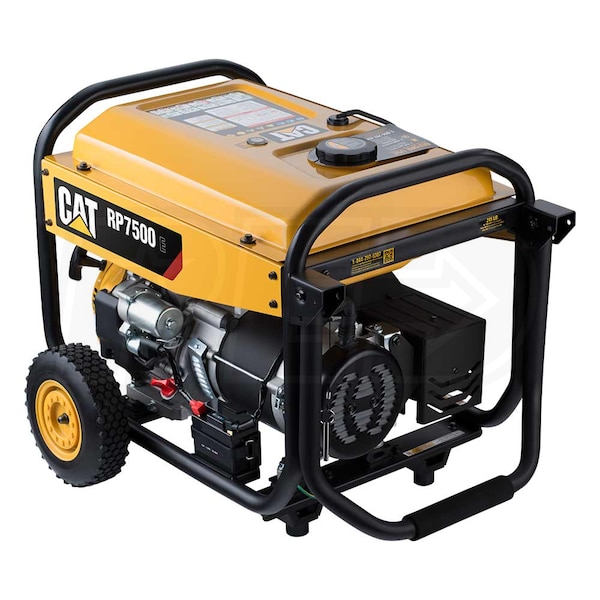

Caterpillar RP7500 E - 7500 Watt Electric Start Portable Generator (CSA unit)

Model:

502-3691

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Caterpillar RP7500 E - 7500 Watt Electric Start Portable Generator (CSA unit)
Caterpillar RP7500 E - 7500 Watt Electric Start Portable Generator (CSA unit)
Model: 502-3691
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

7,500 Rated Watts

Surge Watts

9,375
Starting Watts

Fuel

Gasoline

Engine

Caterpillar

  • Reliable Power When You Need It
  • Perfect for home, work, and play
  • Durable 420cc Caterpillar OHV Engine
  • Oversized 7.9 gallon metal gas tank w/ fuel gauge
  • Provides 11 hours of run time (50% load)
  • Low-oil shutdown protection
  • Electric Start With Recoil Backup
  • Lithium-Ion battery automatically charges when generator is running
  • No battery changer needed
  • Lasts up to 2 years between starts
  • Packaged Ready To Run
  • Easy to set up and operate
  • All-Steel Construction
  • Heavy-duty frame, never flat wheels, and hinged handle
  • Enhanced Safety Features
  • Covered outlets for enhanced weather protection
  • GFCI rated for added safety

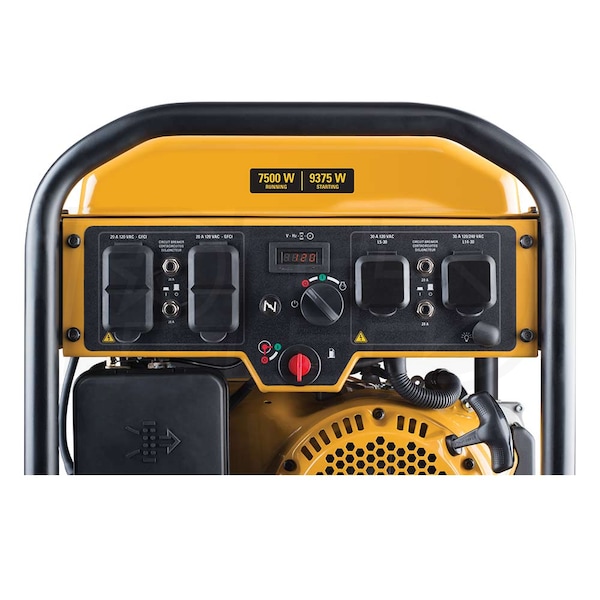

  • Easy-To-Use Control Panel
  • LED panel lighting for night operation
  • 4-in-1 digital display - voltage, frequency, running hours, & total hours
  • Start/stop, choke, & fuel shutoff control mounted
  • Standard 2-Year Limited Warranty Applies If Not Registered Within 30 Days
  • Longer-Term 3-Year Limited Warranty Applies When Registered Within 30 Days
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
502-3691
specs product image PID-80072
Overview
Assembly Required
Yes
Weight
192.5 Pounds
Certification
EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
32.9 Inches
Product Width
27.4 Inches
Product Height
24.7 Inches
UPC
815683020104
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31.25 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.9 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Mfg.
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Caterpillar
Starting System
12-Volt Key Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 (Must register within 30 days - 2 Years if not) Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
