CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (49-State) w/ 50-Amp Power Transfer Kit (Interchangeable Breakers)

Model:

EGD-502-3699KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (49-State) w/ 50-Amp Power Transfer Kit (Interchangeable Breakers)
CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (49-State) w/ 50-Amp Power Transfer Kit (Interchangeable Breakers)
Model: EGD-502-3699KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Portable

Run Watts

12,000 Rated Watts

Surge Watts

15,000
Starting Watts

Fuel

Gasoline

Engine

Caterpillar

  • Cat® RP 12000 E Semi-Pro Portable Generator Package
  • Includes what you need for emergency home back-up
  • Electric Start (Battery Included)
  • Allows for easy starting with the push of a button
  • Includes Smart battery charger
  • 670cc Caterpillar V-Twin OHV Engine
  • Suitable for powering more equipment and heavier loads
  • Fully-Pressurized Oil System
  • Provides added protection during operation
  • Extra-Large, 13.2-Gallon Metal Fuel Tank w/ Fuel Gauge
  • Allows for run-times over 11-hours @ 50% load
  • All-Copper Windings - Less Than 5% THD
  • Provides clean power suitable for sensitive electronics and tools
  • Low-Idle Mode
  • Optimizes fuel consumption and noise levels for less engine wear
  • 120/240V (L14-50R) 50-Amp & (14-30R) 30-Amp Outlets
  • Allows this generator to provide power to larger tools and manual transfer switches
  • (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
  • Helps prevent electrical shock, especially during wet conditions
  • Lighted Control Panel
  • Provides easy, one-sided operation
  • Removable Comfort Handle & Wheel Kit
  • 11" Solid steel wheels w/ solid rubber tires for easy transportation
  • Removable Lifting Eye
  • Makes this generator easy to move on the job site
  • Premium Muffler & USDA Approved Spark Arrestor
  • Helps reduce noise levels and provide safer operation in dry conditions
  • Includes Tool Kit & Engine Oil
  • Provides everything you need to get up and running, in the box
  • 3-Year Limited Warranty (Must Register within 30 Days)
  • Standard 2-Year Limited Warranty if not registered within 30 days
  • Product Includes
    • (1) CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (49-State) (502-3699)
    • (1) Reliance Controls 50-Amp (Straight Blade / Twistlock 120/240V) Generator Power Cord (25-Foot) (PC5025-14)

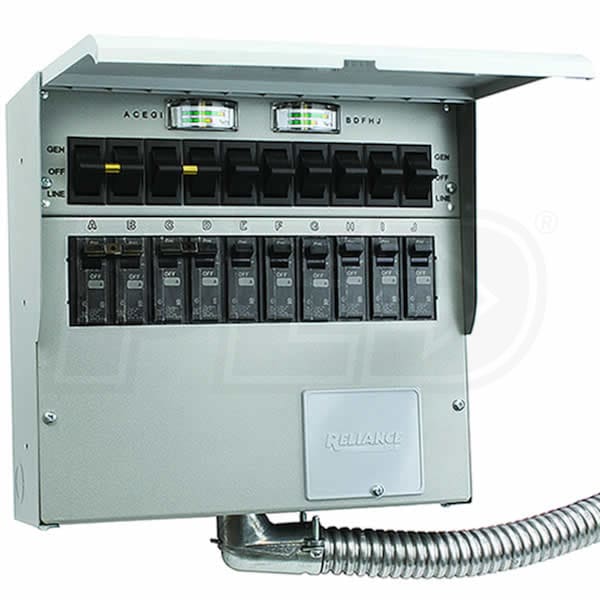

    • (1) Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A510C)
    • (1) Reliance Controls 50-Amp Power Inlet Box w/ Flip-Lid (PB50)
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Product Includes
  • (1) CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (49-State) (502-3699)
  • (1) Reliance Controls 50-Amp (Straight Blade / Twistlock 120/240V) Generator Power Cord (25-Foot) (PC5025-14)
  • (1) Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A510C)
  • (1) Reliance Controls 50-Amp Power Inlet Box w/ Flip-Lid (PB50)
EGD-502-3699KIT
specs product image PID-92597
Overview
Weight
353 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
35.7 Inches
Product Width
32.7 Inches
Product Height
35.8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
15000 Watts
Fuel Type
Gasoline
Rated Amps
50 Amps
Portability Kit
Never Flat Wheels
Tank Size
13.2 Gallons
Run Time @ 50% Load
11.7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Semi-Pro
Engine
Engine Brand
Caterpillar
Starting System
12-Volt Button Start
CC
670 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
RP12000E
Overview
Weight
353 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
35.7 Inches
Product Width
32.7 Inches
Product Height
35.8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
15000 Watts
Fuel Type
Gasoline
Rated Amps
50 Amps
Portability Kit
Never Flat Wheels
Tank Size
13.2 Gallons
Run Time @ 50% Load
11.7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Caterpillar
Starting System
12-Volt Button Start
CC
670 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
PC5025-14
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Maximum Wattage
12500 Watts
Plugs
NEMA 14-50R
1
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Prongs
Straight-Blade
Wire Gauge
6 Gauge
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2.5 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
6 Inches
Product Width
4 Inches
Product Height
3 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Plugs
CS6364/5 - 50-Amp Twistlock
1
