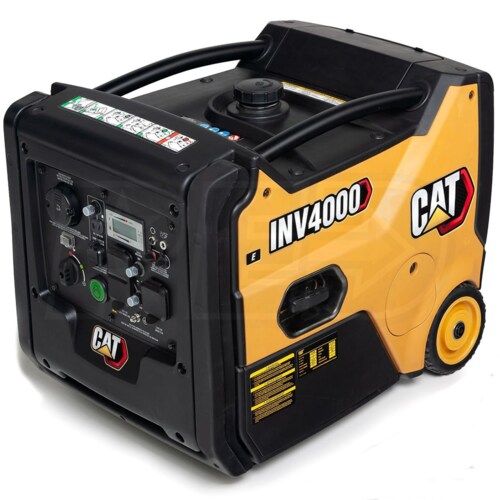

CAT INV4000 E CO - 3200 Watt Electric Start Portable Inverter Generator w/ CO DEFENSE (CARB)

Model:

INV4000 E CO

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
CAT INV4000 E CO - 3200 Watt Electric Start Portable Inverter Generator w/ CO DEFENSE (CARB)
CAT INV4000 E CO - 3200 Watt Electric Start Portable Inverter Generator w/ CO DEFENSE (CARB)
Model: INV4000 E CO
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

3,200 Rated Watts

Surge Watts

4,000
Starting Watts

Fuel

Gasoline

Engine

Caterpillar

  • CAT® INV4000 E CO Portable Inverter Generator
  • Provides clean, reliable power when and where you need it
  • Inverter Technology
  • Provides clean power with <3% Total Harmonic Distortion (THD)
  • Electric Push Button Start w/ Recoil Backup (Battery Included)
  • Lithium-Ion battery automatically charges when generator is running
  • Includes trickle-charger, to keep prepared for an outage
  • 212cc CAT® OHV 4-Cycle Engine
  • Fuel-efficient, durable design, with heavy-duty liners for extended life
  • Automatic Low-Oil Shutdown Protection
  • Helps prevent damage to the engine in a low-oil event
  • Engine Smart Control (ESC) Switch
  • Will vary engine speed to match the required power output
  • Helps conserve fuel, while reducing wear and noise
  • Multifunction LCD Smart Display
  • Easily monitor real-time power output and fuel usage
  • Also provides basic service and fault alerts
  • Service, overload, low oil and low battery voltage
  • 2.1-Gallon Fuel Tank w/ Low Fuel Level Indicator
  • Provides up to 8 hours of run time @ 50% load
  • 30-Amp 120-Volt (L5-30) Twistlock Outlet***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • CO DEFENSE™ Carbon Monoxide Sensing & Shutdown technology
  • For added protection to keep you safe
  • Parallel Capability
  • Allows you to increase your power with another CAT inverter
  • Circuit-Breaker Protected Outlets
  • Helps prevent against short circuit and overload conditions
  • 8.3-Amp 12-Volt DC Outlet
  • Ideal for charging batteries; Includes charging cables
  • Premium Muffler & USDA Approved Spark Arrestor
  • Reduces noise levels & provide safer operation in dry conditions
  • Never-Flat Wheels & Foldable Handle
  • Makes this generator easy to move over uneven terrain
  • Includes Tool Kit & Engine Oil
  • Everything you need to get up and running besides gas
  • 3-Year Limited Warranty (Must Register within 30 Days)
  • Standard 2-Year Limited Warranty if not registered within 30 days
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
8.3-Amp DC
NEMA 5-20R (GFCI)
NEMA L5-30R
USB
USB
INV4000 E CO
specs product image PID-105024
Overview
Weight
103.6 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
25.4 Inches
Product Width
18.5 Inches
Product Height
20.4 Inches
UPC
815683026373
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
3200 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
26.6 Amps
Portability Kit
Never Flat Wheels
Tank Size
2.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Cooling System
Air Cooled
Grade Type
Recreational
CO Sensing
Yes
Engine
Engine Brand
Caterpillar
Starting System
12-Volt Button Start w/ Recoil
CC
212 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Low Oil Alert/Shutdown
Yes
Plugs
8.3-Amp DC
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
USB
2
