Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
12,500 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Champion

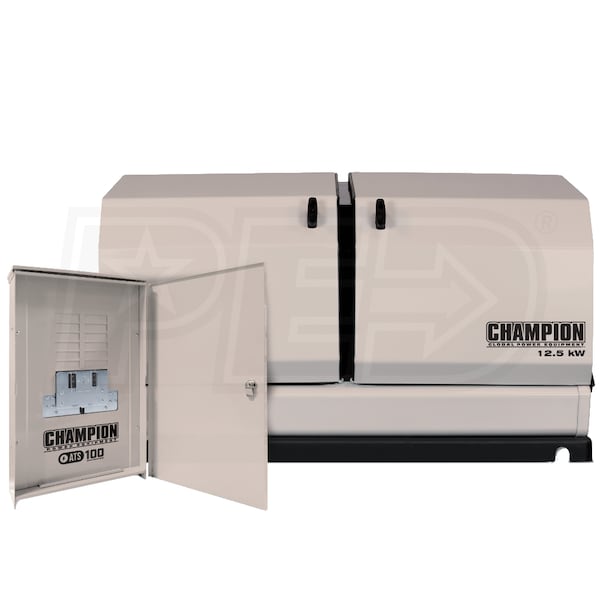

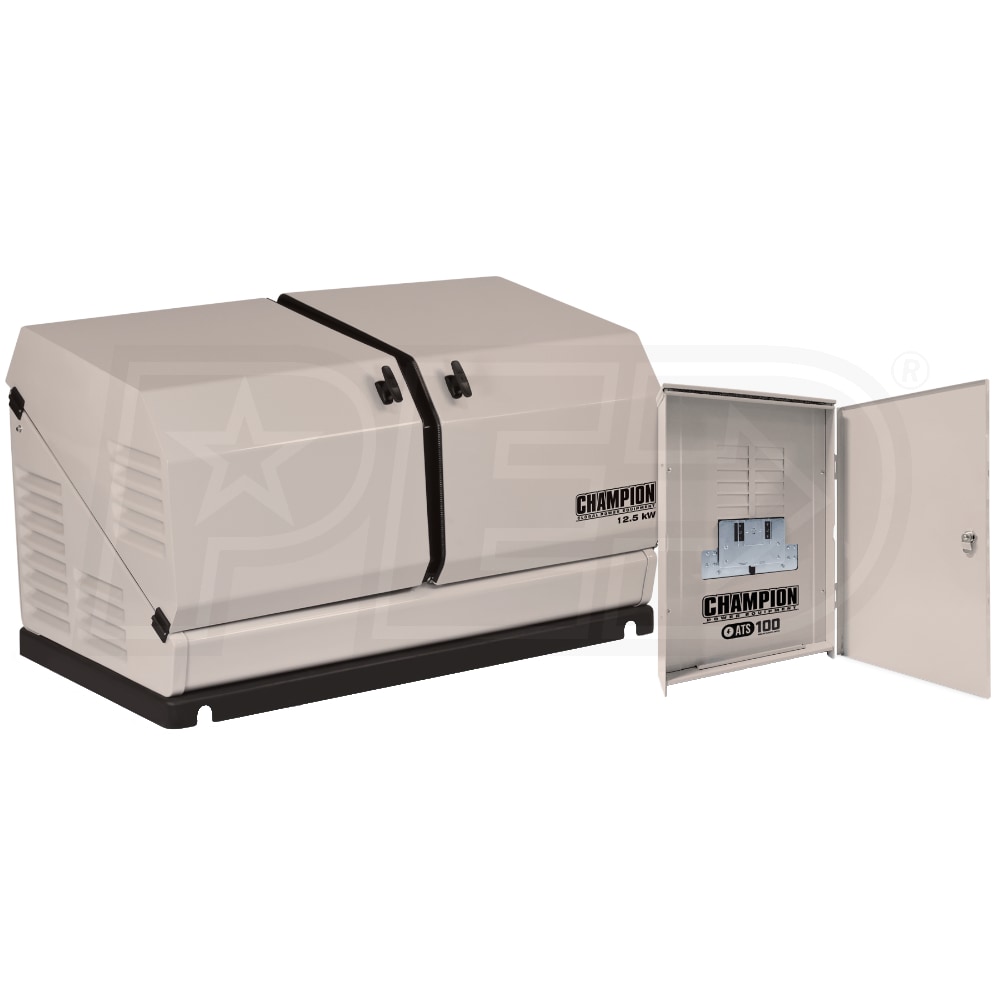

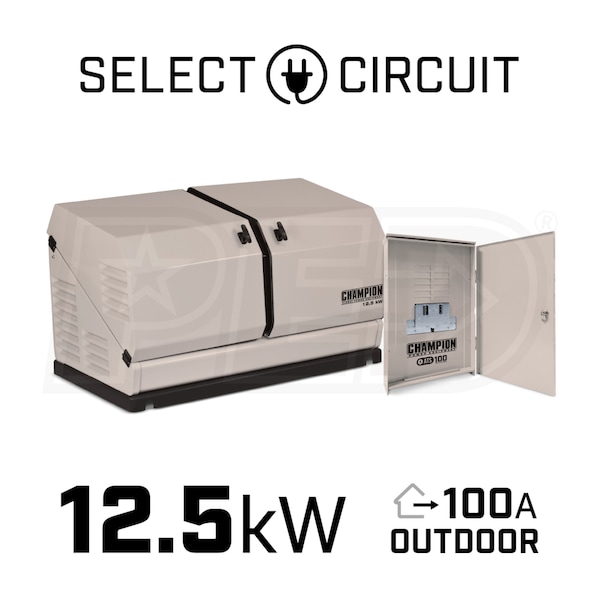

- Champion 12.5kW (LPG) / 11.kW (NG) Home Standby Generator System
- Enjoy totally automatic, seamless power to your home during an outage
- 10-Year Limited Warranty* w/ FREE Lifetime Technical Support
- Industry leading warranty keeps you protected for the long haul

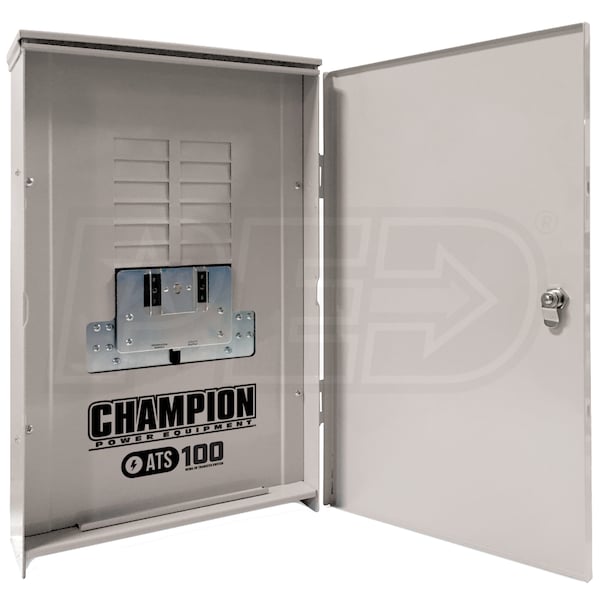

- The Simple Solution&traede; ATS100 Select Circuit Automatic Transfer Switch
- 100-Amp, NEMA 3R Outdoor enclosure
- 16-Circuit Load Center (12-Space, Allows up to 4 tandem breakers)
- Allows you to power select circuits during an outage
- Less Than 5% Total Harmonic Distortion (THD)
- Provides clean power safe for sensitive electronics

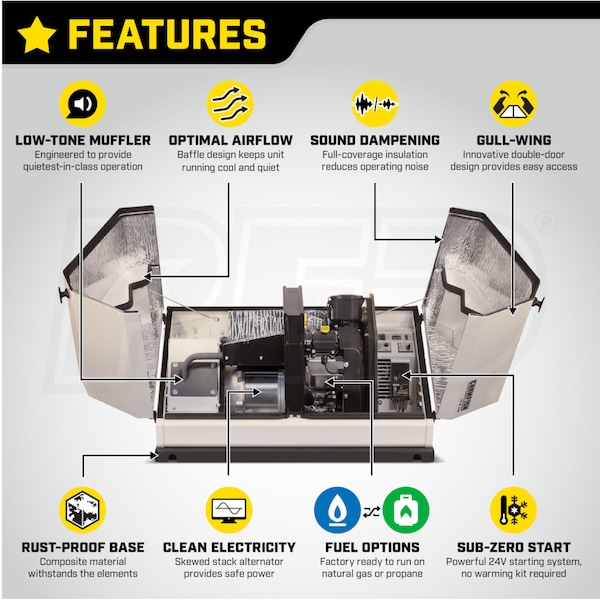

- Aluminum-Zinc Coated Steel Enclosure

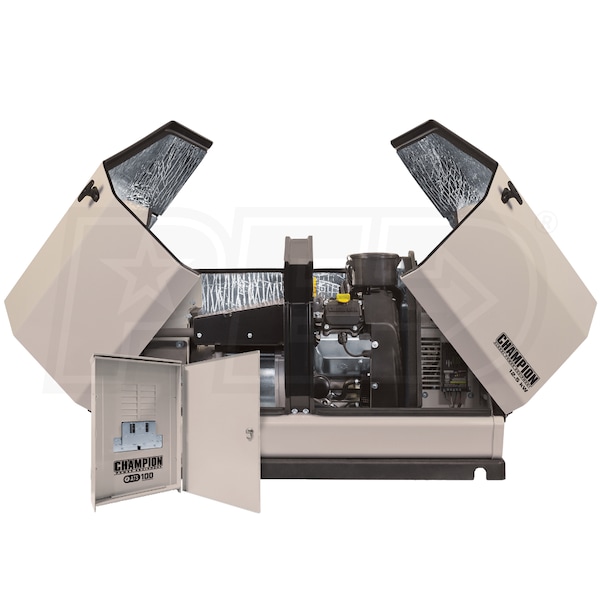

- Gullwing-style door makes servicing this generator an easy task
- Quiet Operation
- Operates at a residential-friendly 63 dBA noise level
- Advanced sound dampening and a specially designed low-tone muffler
- 24-Volt Starting System (Batteries Not Included)
- Operates in sub-zero or extreme heat (between -22° F and 104° F)
- Provides reliable, easy starting without a battery warmer or cold weather kit
- 717cc OHV Champion Engine
- Innovative advanced airflow design for cooler operating temperatures
- Also Includes:
- Battery Jumper Wire, Gas Inlet Flex Hose & Gas Inlet Hose
- Master Mixer Assembly & Keys for Door Lock
- *Note - 2-Year Limited Warranty For Automatic Transfer Switch
- *^*OIL NOT INCLUDED*^*
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
100179
Overview
Product Category
Generator - Standby
Weight
455.5 Pounds
CARB Compliant
Yes
Consumer Warranty
10 Years
Product Style
Standby Generator
Product Length
50 Inches
Product Width
30.1 Inches
Product Height
40.2 Inches
UPC
896682000298
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
11000 Watts
LP Power Capacity
12500 Watts
NG Fuel Consumption @ 50% Load
122.2 ft³/hr
NG Fuel Consumption @ 100% Load
198.1 ft³/hr
LP Fuel Consumption @ 50% Load
1.6 gallons/hr
LP Fuel Consumption @ 100% Load
2.6 gallons/hr
Rated Amps
52.1 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included
Enclosure
Steel
Circuit Breaker Size
52 Amps
A/C Ton Rating
4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
Grade Type
Emergency
Wi-Fi Remote Monitoring
No
Prime Power
No
Low THD
Yes
Engine
Engine Brand
Champion
Starting System
24-Volt Auto Start
CC
717 CC
Consumer Engine Warranty
10 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
