Features
Grade
Recreational
Style
Portable
Run Watts
3,650 Rated Watts
Surge Watts
4,500
Starting Watts
Fuel
Gasoline
Engine
Champion

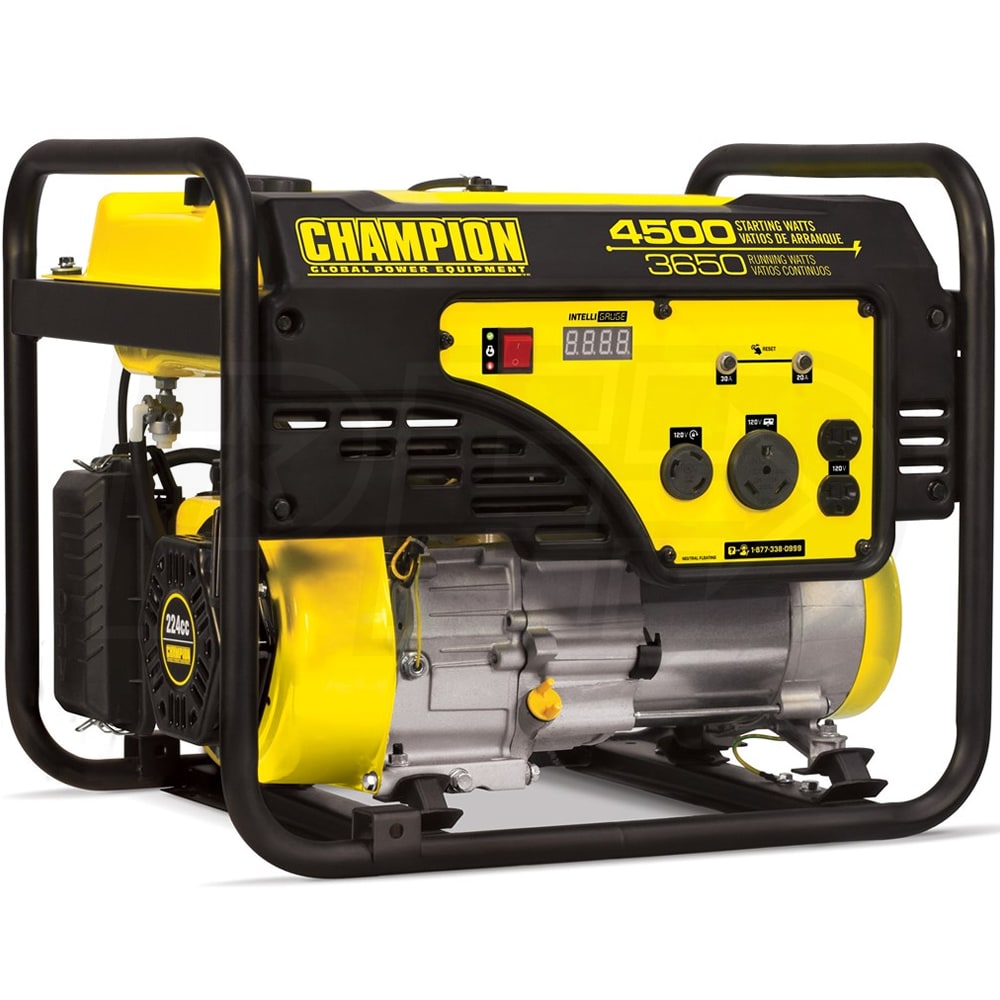

- Champion Power Equipment 3650 Watt Portable Generator

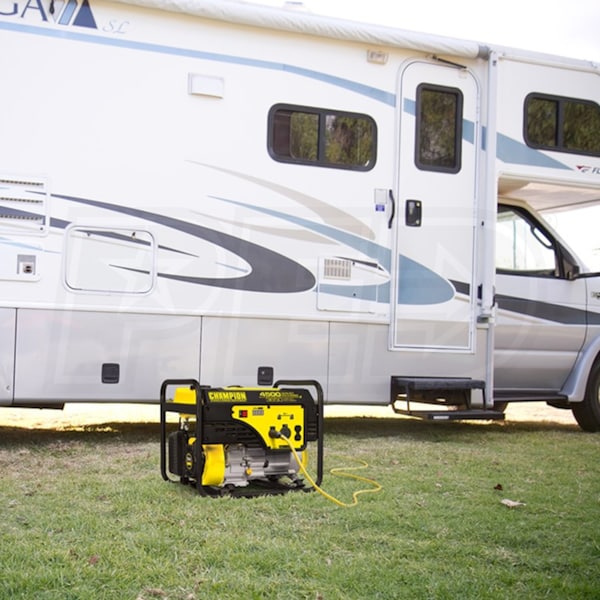

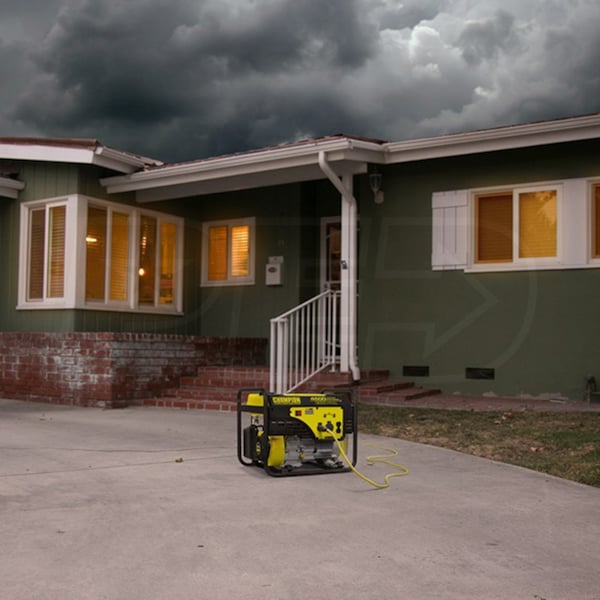

- Ideal for RV's, camping, hunting and home power outages
- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter

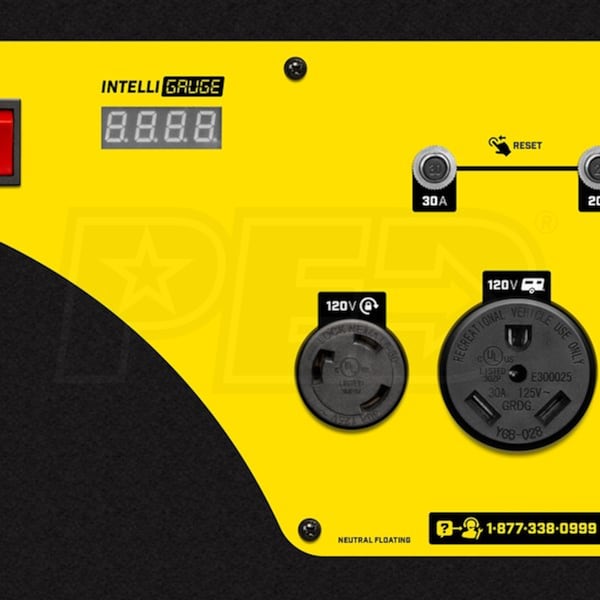

- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Sensor
- Cast iron sleeve for long life and easy maintenance
- Provides extended protection during long run times
- Recoil Starter w/ Cold-Start Technology
- Makes starting your generator easy, even when temps are low
- Volt Guard Overload Protection
- An extra layer of protection to keep your appliances safe
- 3.4-Gallon Metal Fuel Tank w/ Fuel-Shut Off Valve
- Provides up to 9 hours of runtime at 50% load
- (1) 120V (L5-30R) 30-amp Twistlock Outlet
- Maximize your power options by connecting to a manual transfer switch (MTS)
- 1" Full Tubular Wrap-Around Frame
- Steel frame protects the generator on all sides
- USDA-Approved Spark Arrestor
- Provides added safety when being used in dry areas
- Includes Engine Oil & Oil Funnel
- NON-CARB Compliant - Not Sold In California
- 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
100331
Overview
Weight
99.2 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.2 Inches
Product Width
18.1 Inches
Product Height
19.6 Inches
UPC
817198020099
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3650 Watts
Surge Watts
4500 Watts
Fuel Type
Gasoline
Rated Amps
30.4 Amps
Portability Kit
Sold Separately
Tank Size
3.4 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
