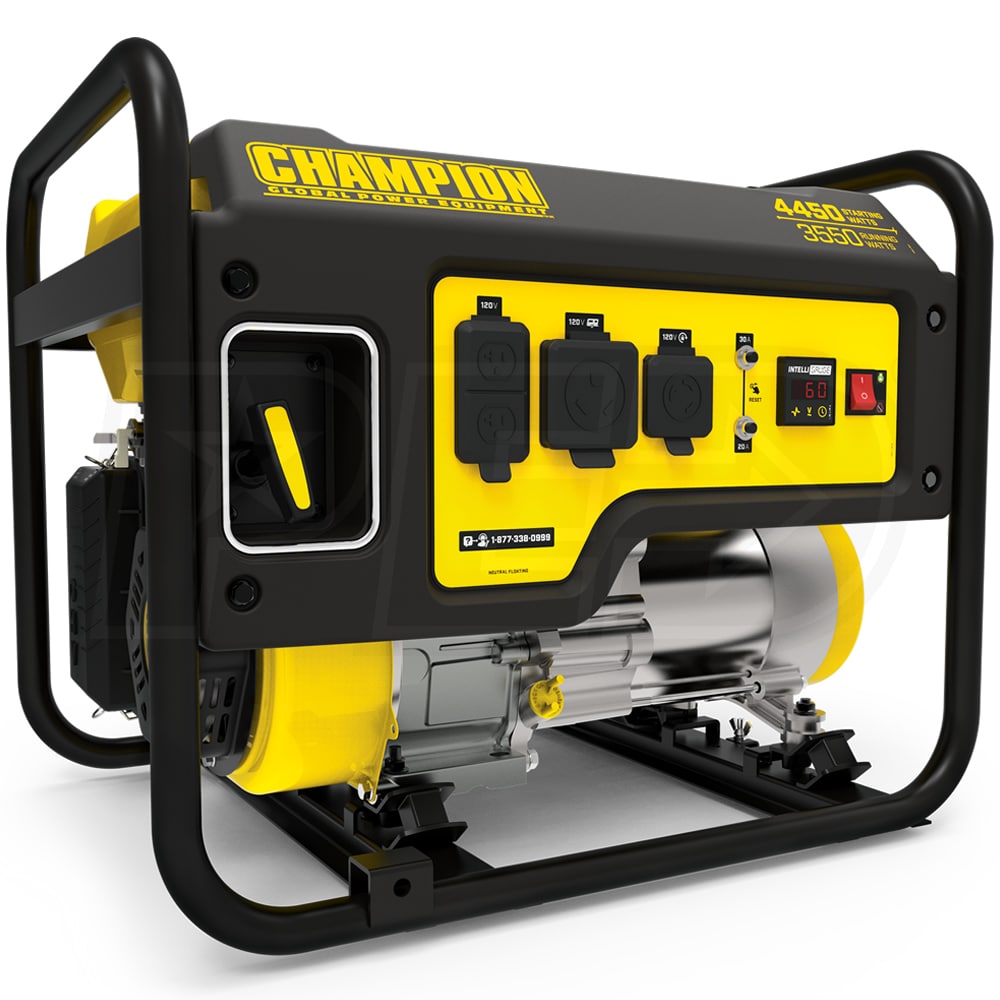

Champion 100406 - 3550 Watt Portable Generator w/ RV Outlet

Model:

100406

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100406 - 3550 Watt Portable Generator w/ RV Outlet
Champion 100406 - 3550 Watt Portable Generator w/ RV Outlet
Model: 100406
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

3,550 Rated Watts

Surge Watts

4,450
Starting Watts

Fuel

Gasoline

Engine

Champion

  • Champion Power Equipment 3550 Watt Portable Generator
  • Ideal for RV's, camping, hunting and traveling
  • 224cc Champion OHV 4-Stroke Engine
  • Cast iron sleeve provides extended engine life
  • Designed for easier starting in cold, winter weather
  • Low-Oil Shutdown
  • Provides added protection to extend the life of the generator
  • Built-In Volt Guard
  • Helps provide protection against power surges
  • 4-Gallon Fuel Tank
  • Allows for up to 10-hours of runtime at 50% load
  • RV Ready - TT-30 RV Receptacle (120V)
  • Easily connect your 30A RV cord (Not Included) for powering your RV
  • Intelligauge™ Digital Display
  • Monitor your voltage, frequency (Hz) & operating hours
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • Tubular Wrap-Around Frame
  • Steel frame protects the generator on all sides
  • Engine Oil NOT Included
  • NON-CARB Compliant - Not Sold In CA
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

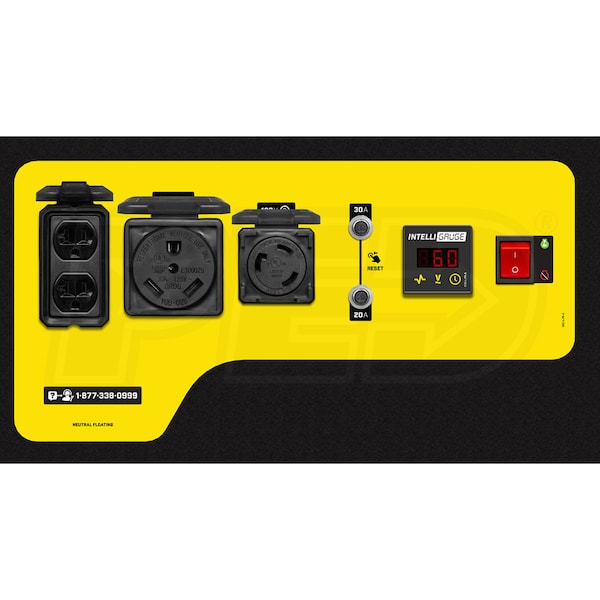

Plug Types
NEMA 5-20R (Wall-Type)
NEMA L5-30R
RV Ready 30-Amp
100406
specs product image PID-78773
Overview
Weight
100 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Length
23.6 Inches
Product Width
18.1 Inches
Product Height
19.6 Inches
UPC
817198020471
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3550 Watts
Surge Watts
4450 Watts
Fuel Type
Gasoline
Rated Amps
29.58 Amps
Tank Size
4 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
