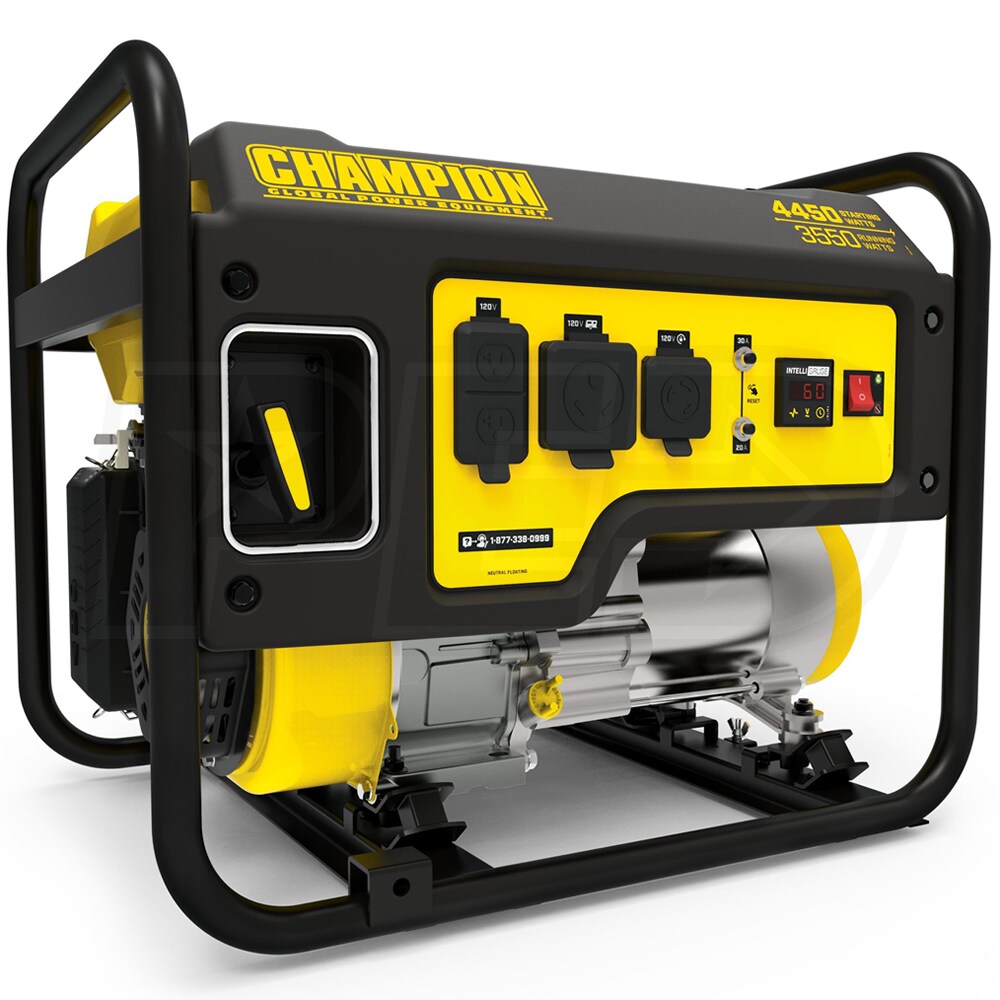

Champion 100407 - 3550 Watt Portable Generator w/ RV Outlet (CARB)

Model:

100407

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100407 -  3550 Watt Portable Generator w/ RV Outlet (CARB)
Champion 100407 - 3550 Watt Portable Generator w/ RV Outlet (CARB)
Model: 100407
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

3,550 Rated Watts

Surge Watts

4,450
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion 3550 Watt Portable Generator
  • 3-Year Limited Warranty - EPA/CARB 50 State Compliant
  • Power for your home, recreational activities & emergencies
  • 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Sensor
  • Cast iron sleeve for long life and easy maintenance
  • Provides extended protection during long run times
  • Recoil Starter w/ Cold-Start Technology
  • Makes starting your generator easy, even when temps are low
  • 4-Gallon Metal Fuel Tank w/ Fuel-Shut Off Valve
  • Provides up to 10 hours of runtime at 50% load
  • Intelligauge Digital Display
  • Easily monitor your voltage, frequency & operating hours
  • Volt Guard Overload Protection
  • An extra layer of protection to keep your generator safe
  • RV Ready - TT-30R Outlet
  • Power your RV without the need of an extra adapter
  • USDA-Approved Spark Arrestor
  • Minimizes risk of an errant spark igniting a dry environment
  • Includes Oil Funnel
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA L5-30R
RV Ready 30-Amp
100407
specs product image PID-105307
Overview
Weight
100.7 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.6 Inches
Product Width
18.1 Inches
Product Height
19.6 Inches
UPC
817198021706
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3550 Watts
Surge Watts
4450 Watts
Fuel Type
Gasoline
Rated Amps
29.6 Amps
Portability Kit
Never Flat Wheels
Tank Size
4 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
