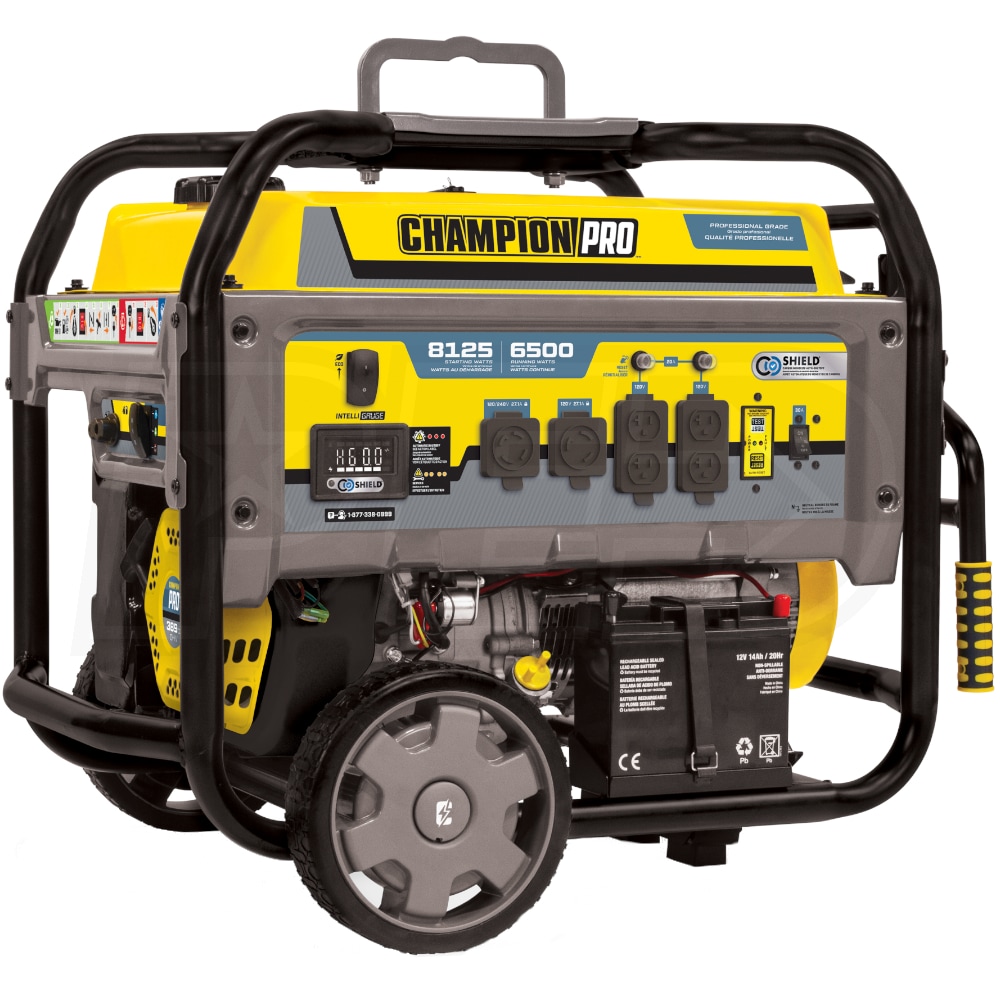

ChampionPRO 100430 - 6500 Watt Electric Start Professional Grade OSHA Compliant Protable Generator w/ CO Shield® (CARB)
Model:
100430
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts

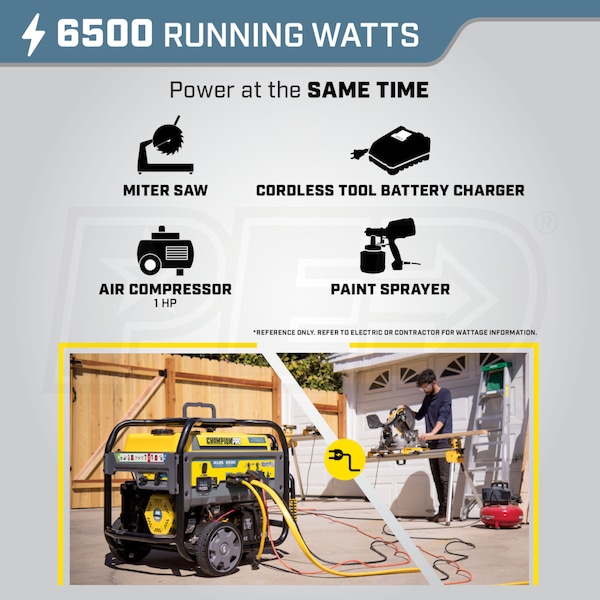

6,500 Rated Watts
Surge Watts
8,125
Starting Watts
Fuel
Gasoline
Engine
Champion
- ChampionPRO 6500 Watt Electric Start Portable Generator

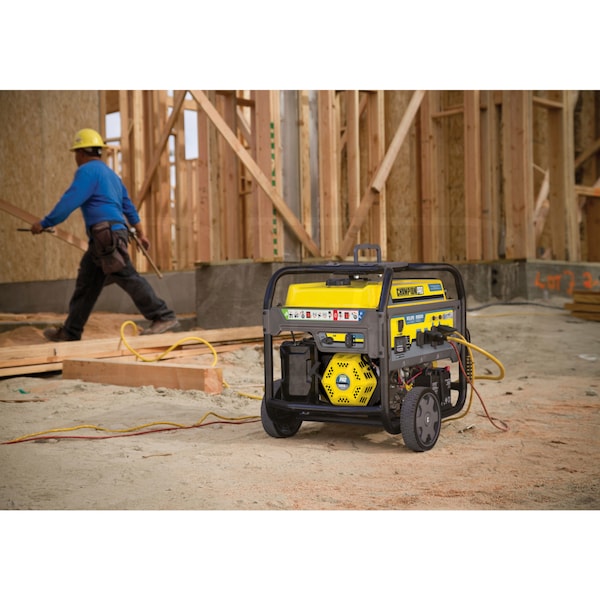

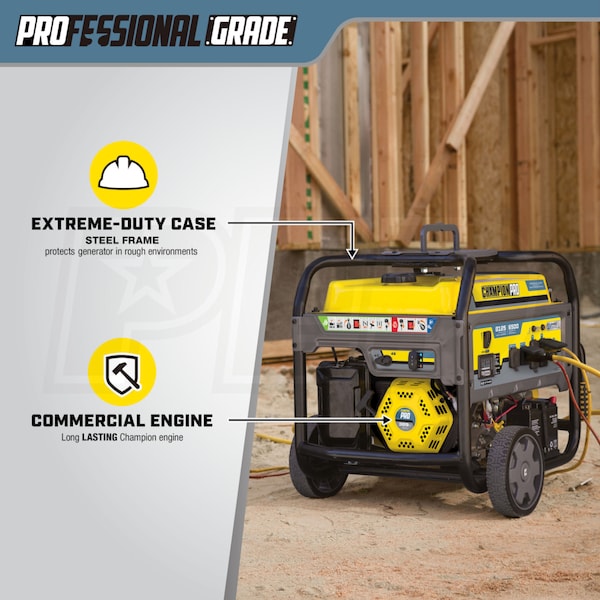

- Extreme-duty design for contractors and construction sites

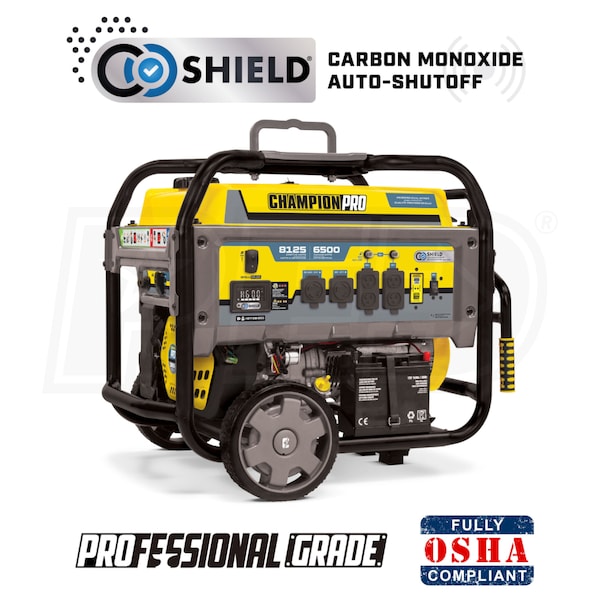

- CO Shield® Technology^*^
- Alerts and shuts off the generator automatically
- OSHA Compliant - Full Panel GFCI Protection
- Must use GFI type manual transfer switch for panel connection
- NOT FOR USE w/ Interlock Kits
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 389cc OHV Champion 4-Stroke Engine w/ Low Oil Sensor
- Cast iron sleeve for long life and easy maintenance
- Provides extended protection during long run times

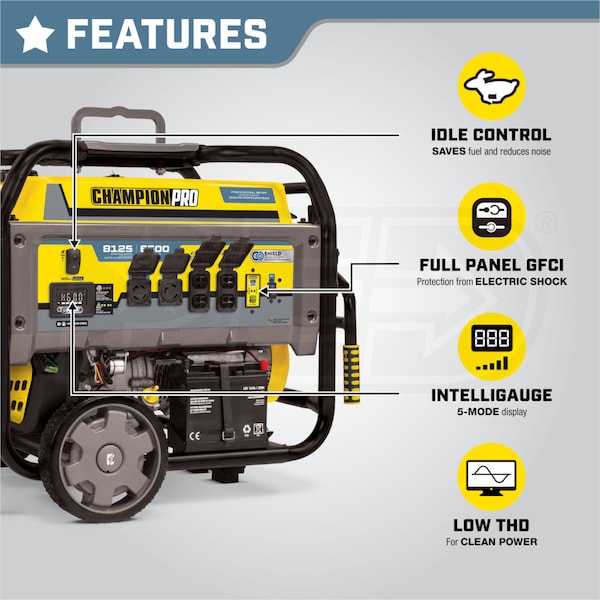

- Idle Control Switch
- Lowers engine RPMs to help conserve fuel during operation
- Cold-Start Technology
- Makes starting your generator easy, even when temps are low

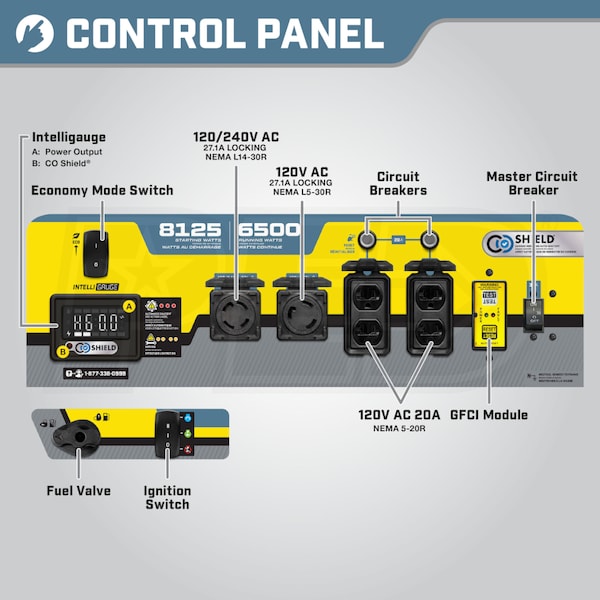

- 120/240V 30-Amp (L14-30R) & 120V 30-Amp (L5-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord (Included)
- (2) 120V Duplex Outlets & Circuit Breaker Protection
- Keeps your tools protected while preventing overload to generator
- Large 8.5-Gallon Fuel Tank
- Provides up to 12.5-hours of run time @ 50% load
- Volt Guard & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours

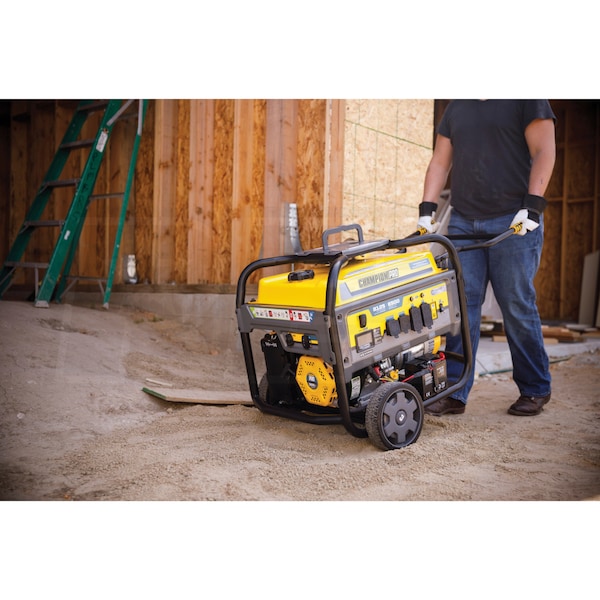

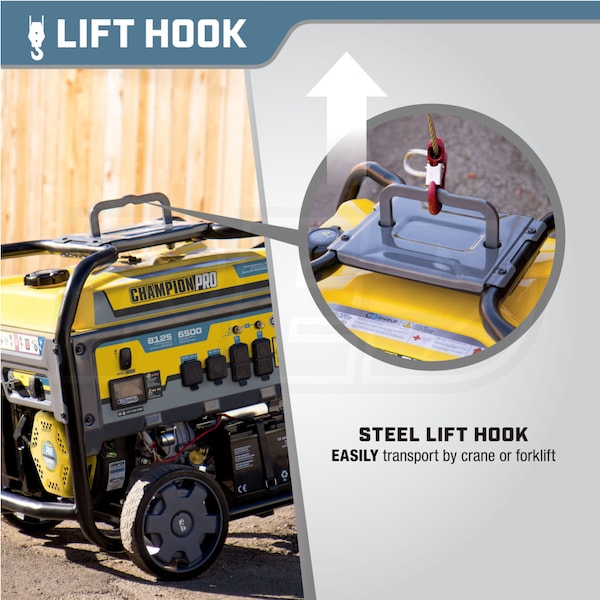

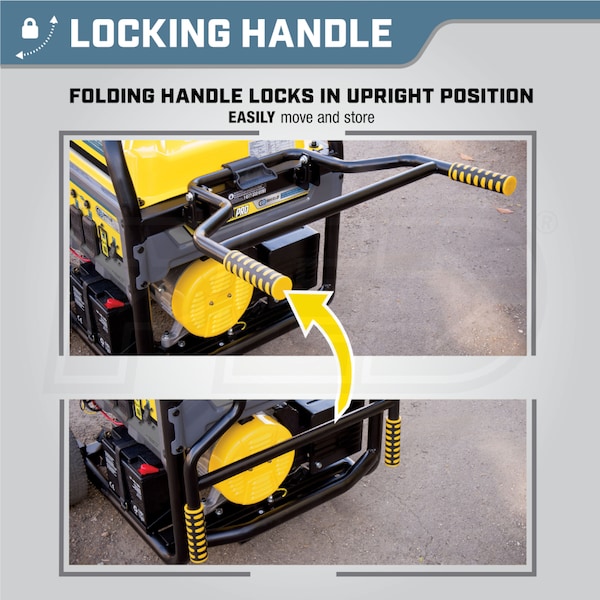

- Never Flat Tires, Fold-Down Locking Handle & Steel Lift Hook
- Makes this generator easy to move on even the most bumpy terrain
- Covered Outlets
- Provides added safety and helps keep dirt/debris out
- Includes Engine Oil & Oil Funnel
- 3-Year Limited Warranty - CARB Compliant / EPA Certified
- ***Note - Allows You To Get Maximum Power From Generator
- ^*^ Meets ANSI/PGMA G300-2018 Requirements
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
100430
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
220 Pounds
CARB Compliant
Yes
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
32.4 Inches
Product Width
27.8 Inches
Product Height
31.5 Inches
UPC
817198022321
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Surge Watts
8125 Watts
Fuel Type
Gasoline
Rated Amps
27.1 Amps
Portability Kit
Never Flat Wheels
Tank Size
8.5 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
CO Sensing
Yes
Low THD
No
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
389 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L5-30R
1
NEMA L14-30R
1
