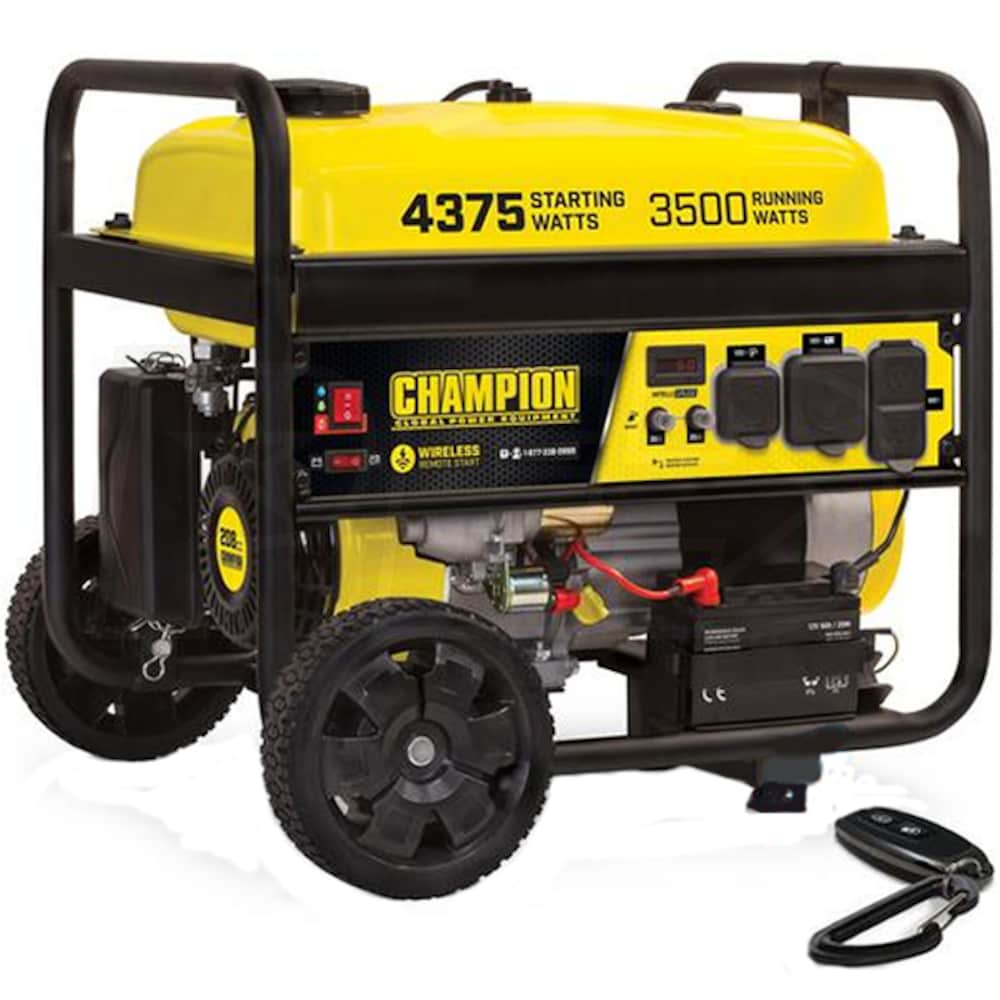

Champion 100558 - 3500 Watt Electric Start Portable Generator w/ RV Outlet & Wireless Remote (49-State)

Model:

100558

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100558 - 3500 Watt Electric Start Portable Generator w/ RV Outlet & Wireless Remote (49-State)
Champion 100558 - 3500 Watt Electric Start Portable Generator w/ RV Outlet & Wireless Remote (49-State)
Model: 100558
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

3,500 Rated Watts

Surge Watts

4,375
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion 3500 Watt Remote Start Portable Generator
  • Provides dependable power for home, RV's or emergencies
  • Push Button Electric Start (Battery Included) w/ Wireless Remote
  • Auto-choke design for easy one-touch starting
  • 208cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutdown
  • Cast iron sleeve for long life and easy maintenance
  • Provides added protection to extend the life of the generator
  • Built-In Volt Guard
  • Helps provide protection against power surges
  • 4.7-Gallon Fuel Tank
  • Allows for up to 12-hours of runtime at 50% load
  • RV Ready - TT-30 RV Receptacle (120V)
  • Easily connect your 30A RV cord (Not Included) for powering your RV

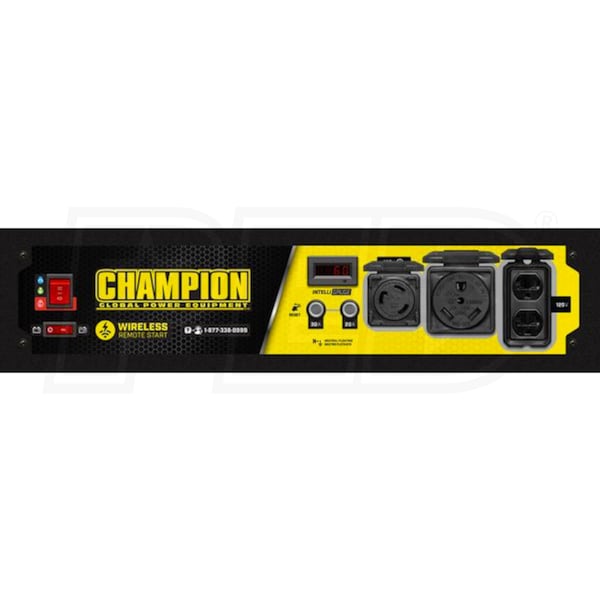

  • Intelligauge™ Digital Display
  • Monitor your voltage, frequency (Hz) & operating hours
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • Mobility Kit w/ Handle & 8" Never-Flat Wheels
  • Makes transporting and positioning as simple as possibl
  • Tubular Wrap-Around Frame
  • Steel frame protects the generator on all sides
  • Engine Oil NOT Included
  • NON-CARB Compliant - Not For Sale In California
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA L5-30R
RV Ready 30-Amp
100558
specs product image PID-103305
Overview
Assembly Required
Yes
Weight
118.8 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
24.9 Inches
Product Width
22.6 Inches
Product Height
22.4 Inches
UPC
817198021874
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4375 Watts
Fuel Type
Gasoline
Rated Amps
29 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.7 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
208 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
