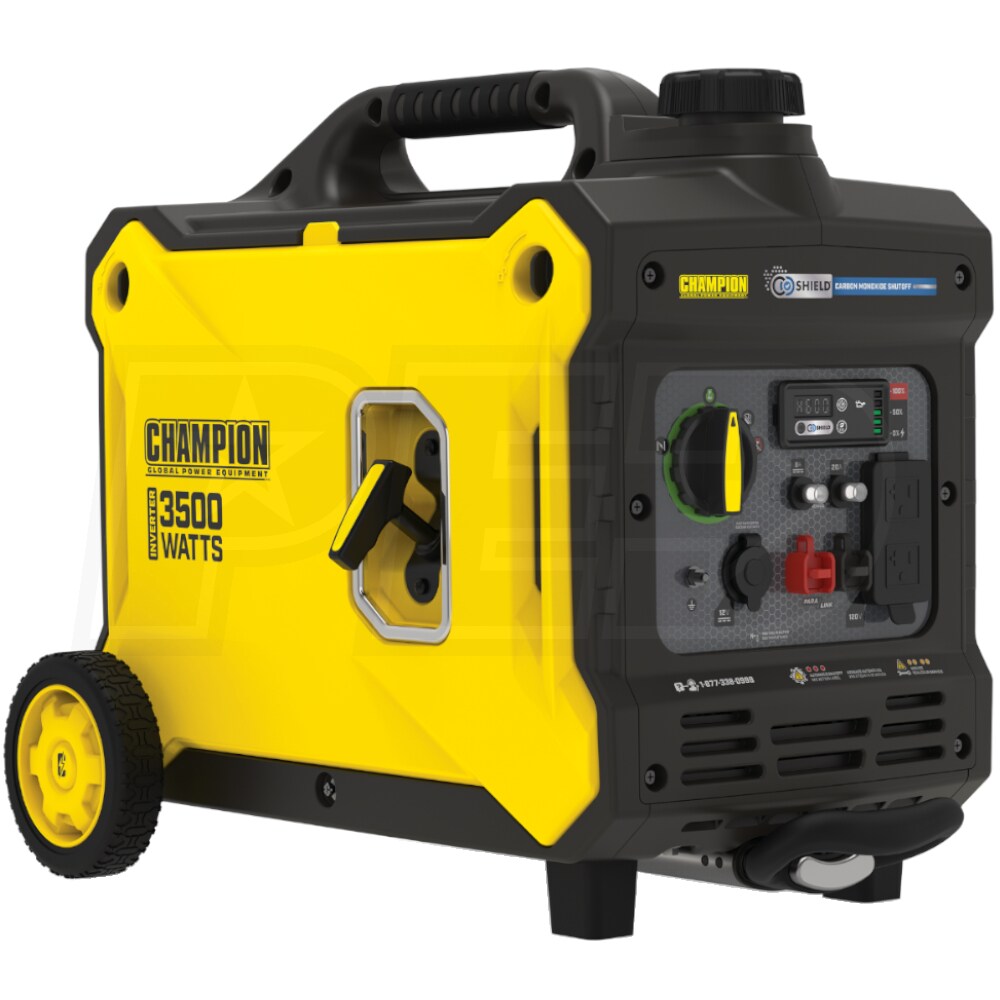

Champion 100571 - 2300 Watt Inverter Generator w/ Parallel Capability & CO Shield® (CARB)

Model:

100571

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100571 - 2300 Watt Inverter Generator w/  Parallel Capability & CO Shield® (CARB)
Champion 100571 - 2300 Watt Inverter Generator w/ Parallel Capability & CO Shield® (CARB)
Model: 100571
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

2,300 Rated Watts

Surge Watts

3,500
Starting Watts

Fuel

Gasoline

Engine

Champion

  • Champion Inverter Technology - Clean Power (<3% THD)

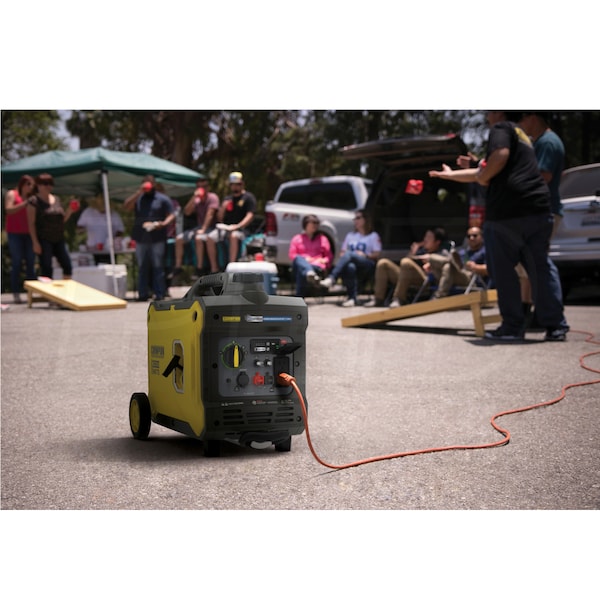

  • Clean, quiet power for campsites, RV's, cabins & tailgating

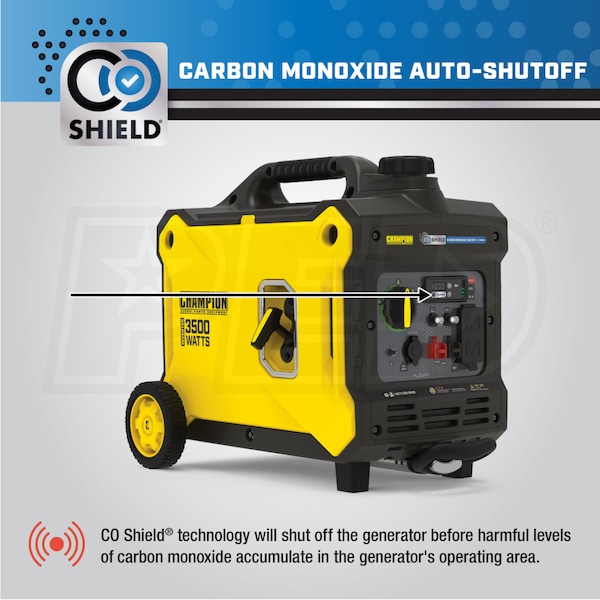

  • CO Shield® Technology^*^
  • Alerts and shut off the generator automatically
  • 3500 Max Rated Starting Watts
  • Ultralight design, one of the lightest in the industry
  • Champion 122cc OHV Engine w/ Low Oil Sensor
  • Provides added protection to extend engine life

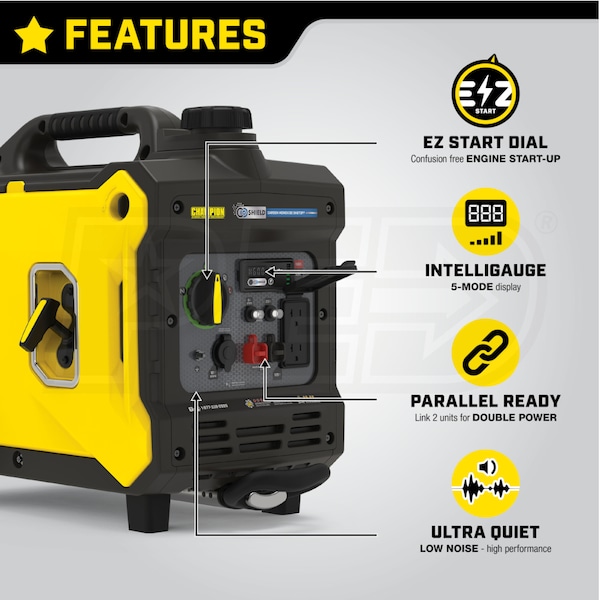

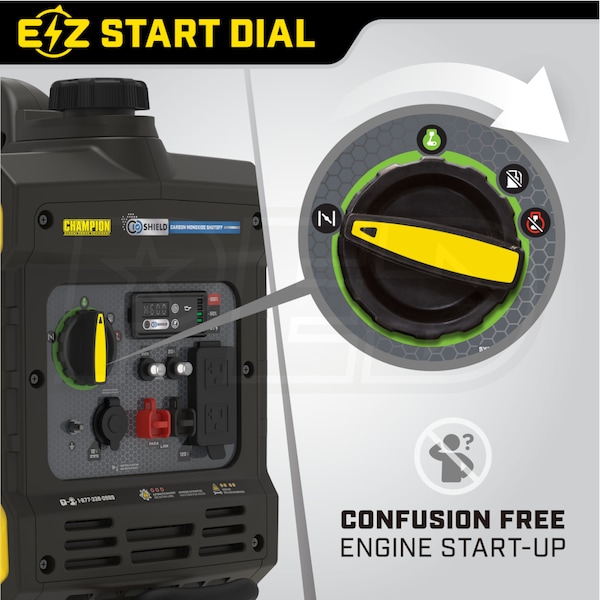

  • EZ Start Dial w/Cold Start Technology
  • Makes starting your generator an easy task
  • Allows for easier starting in cold weather
  • Economy Mode Switch
  • Adjusts engine speed to the optimum level depending on load
  • LED Status Lights
  • AC output, Low Oil and Eco mode
  • Quieter Operation
  • Fully enclosed durable housing reduces sound output

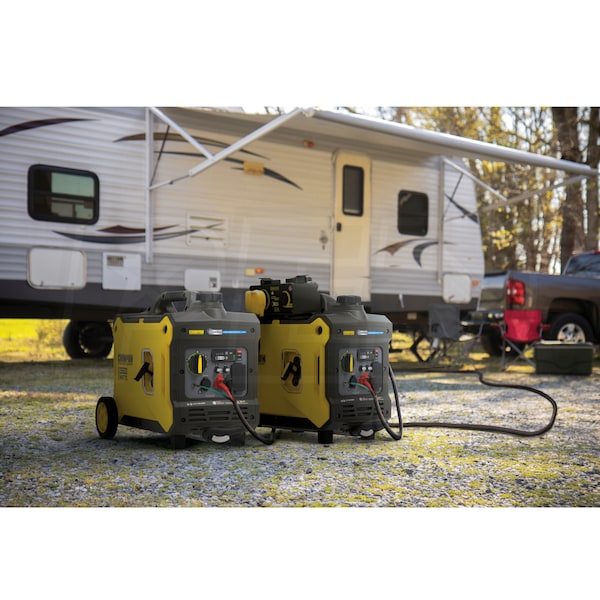

  • Parallel Operation Capability
  • Increase available wattage when linking 2 Champion inverter gens
  • Requires ParaLINK parallel kit (Sold Separately)

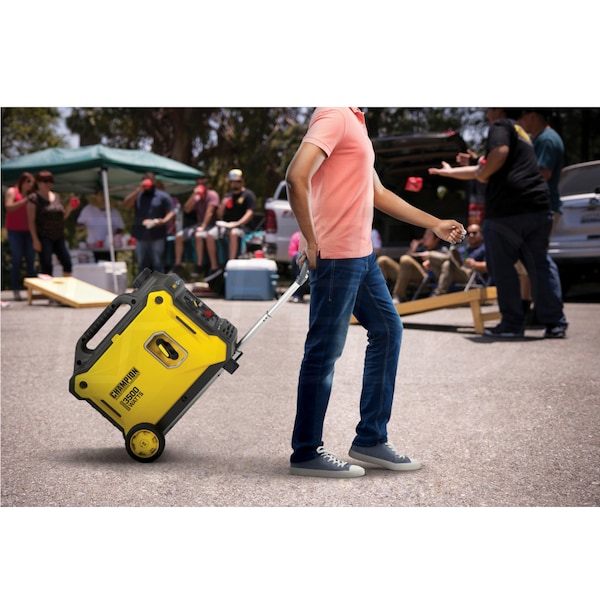

  • 5.5" Wheel Kit & Telescoping Handle
  • Allows you to roll the generator where you need it
  • Lightweight Design w/ Built-In Carrying Handle
  • Makes this generator easy to move where you need it most
  • Added Features
  • 12V DC Outlet & USDA-Approved Spark Arrestor/Muffler

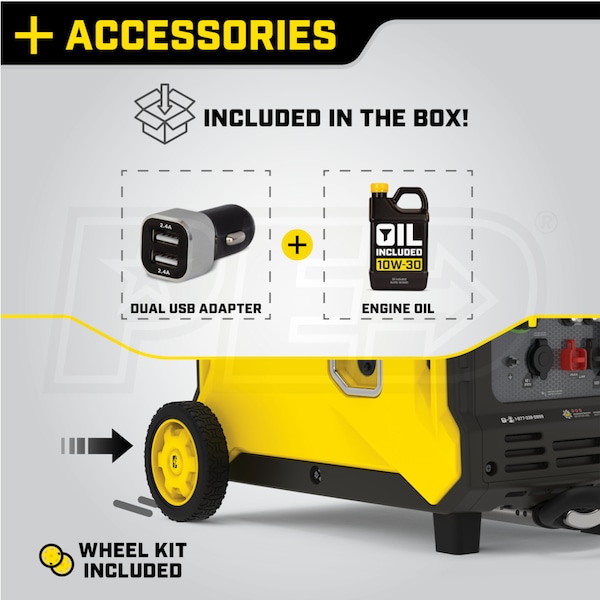

  • Also Includes:
  • USB Adapter, Engine Oil & Oil Funnel
  • 3-Year Limited Warranty
  • ^*^ Meets ANSI/PGMA G300-2018 Requirements
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

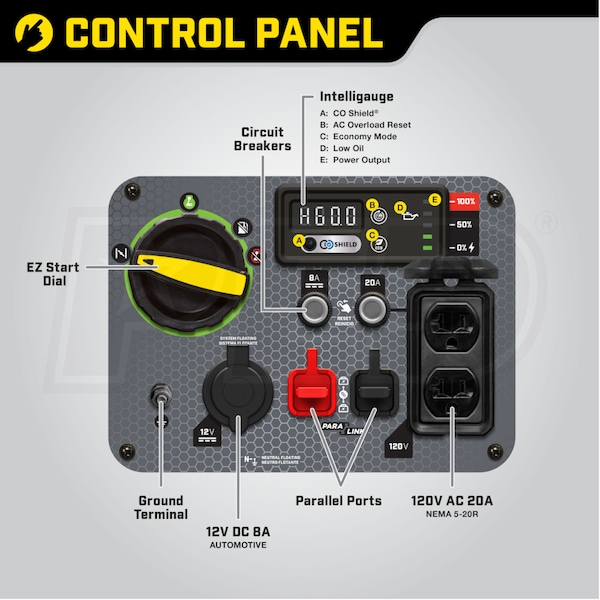

Plug Types
NEMA 5-20R (Wall-Type)
10-Amp DC - Cigarette Adapter
100571
specs product image PID-122938
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
57.8 Pounds
CARB Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator

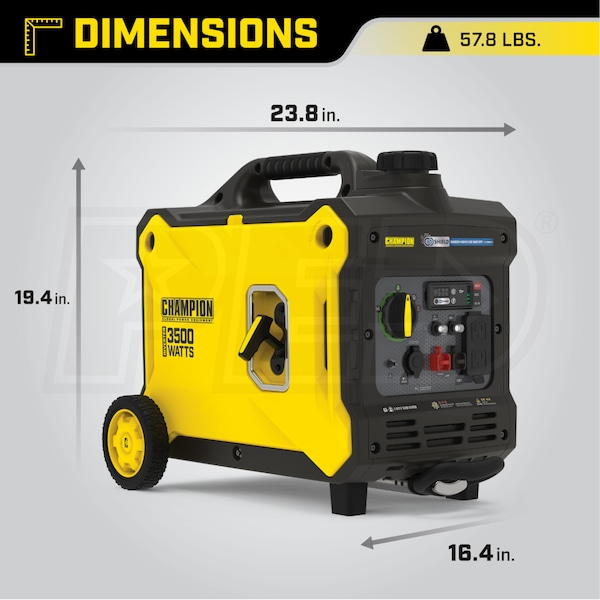

Product Length
23.8 Inches
Product Width
16.4 Inches
Product Height
19.4 Inches
UPC
817198025674
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
2300 Watts
Surge Watts
3500 Watts
Fuel Type
Gasoline
Rated Amps
19.2 Amps
Portability Kit
Never Flat Wheels
Tank Size
1.2 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Grade Type
Recreational
CO Sensing
Yes
Low THD
Yes
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
122 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
