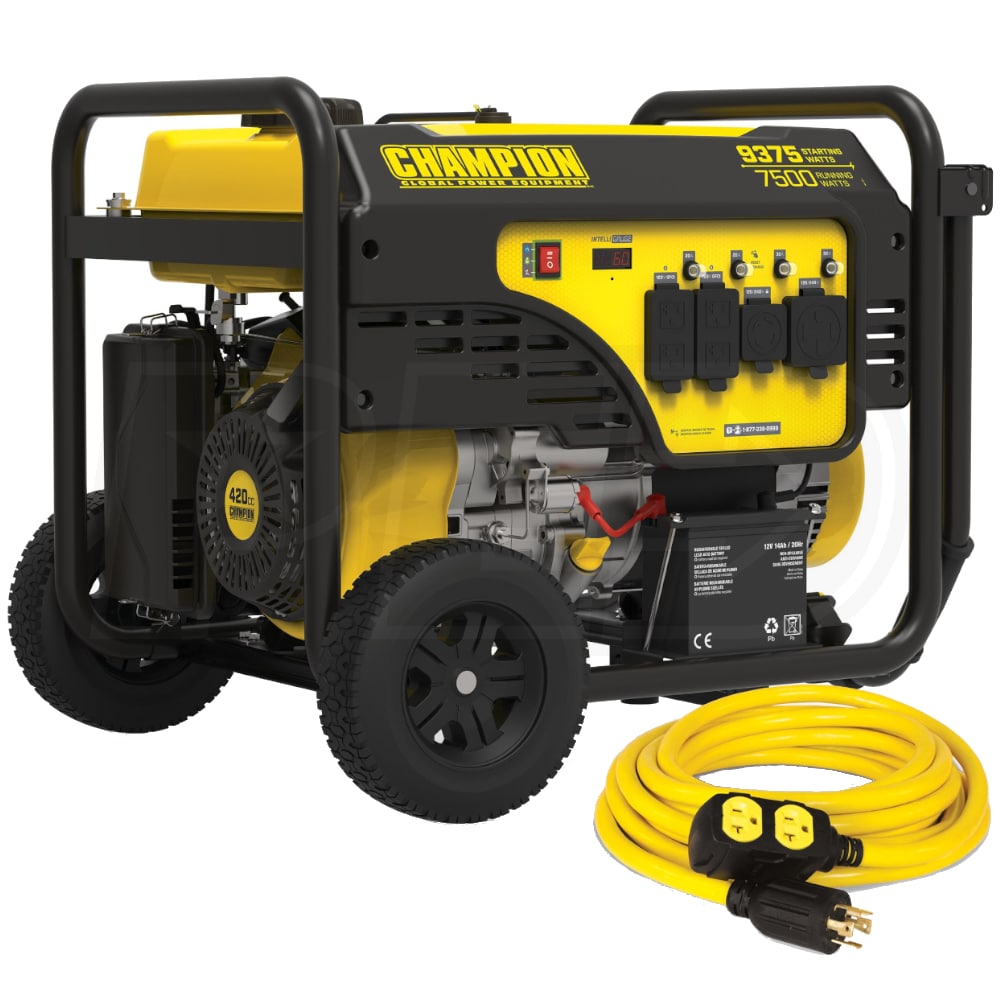

Champion 100704 - 7500 Watt Electric Start Portable Generator (CARB) w/ Convenience Cord

Model:

100704

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100704 - 7500 Watt Electric Start Portable Generator (CARB) w/ Convenience Cord
Champion 100704 - 7500 Watt Electric Start Portable Generator (CARB) w/ Convenience Cord
Model: 100704
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

7,500 Rated Watts

Surge Watts

9,375
Starting Watts

Fuel

Gasoline

Engine

Champion

  • Champion 7500 Watt Electric Start Portable Generator
  • Power for your home, recreational activities & emergencies

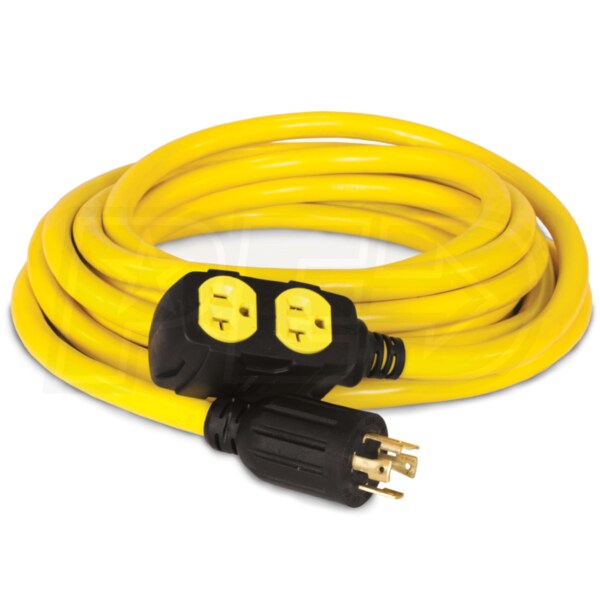

  • Includes 30-Amp (4-Prong) 25-Foot Convenience Cord
  • Split your power from 1 cord into (4) 5-15R / 5-20R outlets
  • Push-Button Electric Start (Battery Included)
  • Plus an easy-pull recoil starter, so you'll always be ready for an outage
  • 420cc OHV Champion 4-Stroke Engine w/ Low Oil Sensor
  • Cast iron sleeve for long life and easy maintenance
  • Provides extended protection during long run times
  • Cold-Start Technology
  • Makes starting your generator easy, even when temps are low

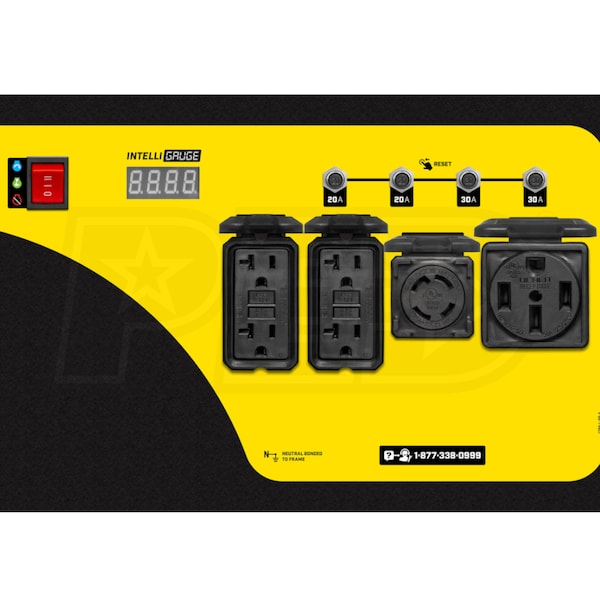

  • 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord (Included)
  • (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
  • Keeps your appliances protected while preventing overload to generator
  • Large 5.7-Gallon Fuel Tank
  • Provides up to 8-hours of run time @ 50% load
  • Volt Guard & Circuit Breaker Protection
  • Keeps your appliances protected while preventing overload
  • Intelligauge Digital Display
  • Easily monitor your voltage, frequency & operating hours
  • Never Flat Tires & Fold-Down Locking Handle
  • Makes this generator easy to move on even the most bumpy terrain
  • Includes Engine Oil & Oil Funnel
  • 3-Year Limited Warranty - CARB Compliant
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-50R
100704
specs product image PID-125337
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
203 Pounds
CARB Compliant
Yes
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.5 Inches
Product Width
20.6 Inches
Product Height
22.2 Inches
UPC
817198022352
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31.3 Amps
Portability Kit
Never Flat Wheels
Tank Size
5.7 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
420 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
