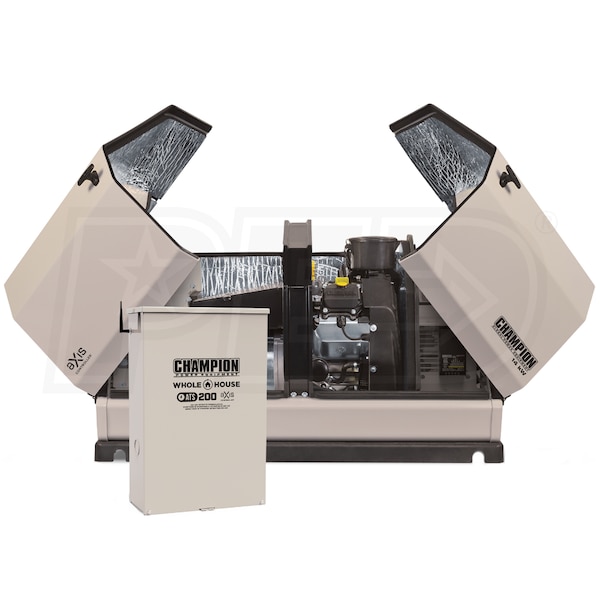

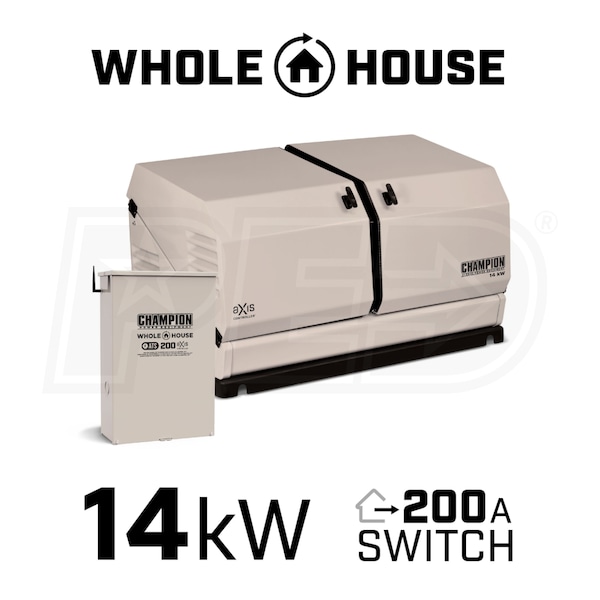

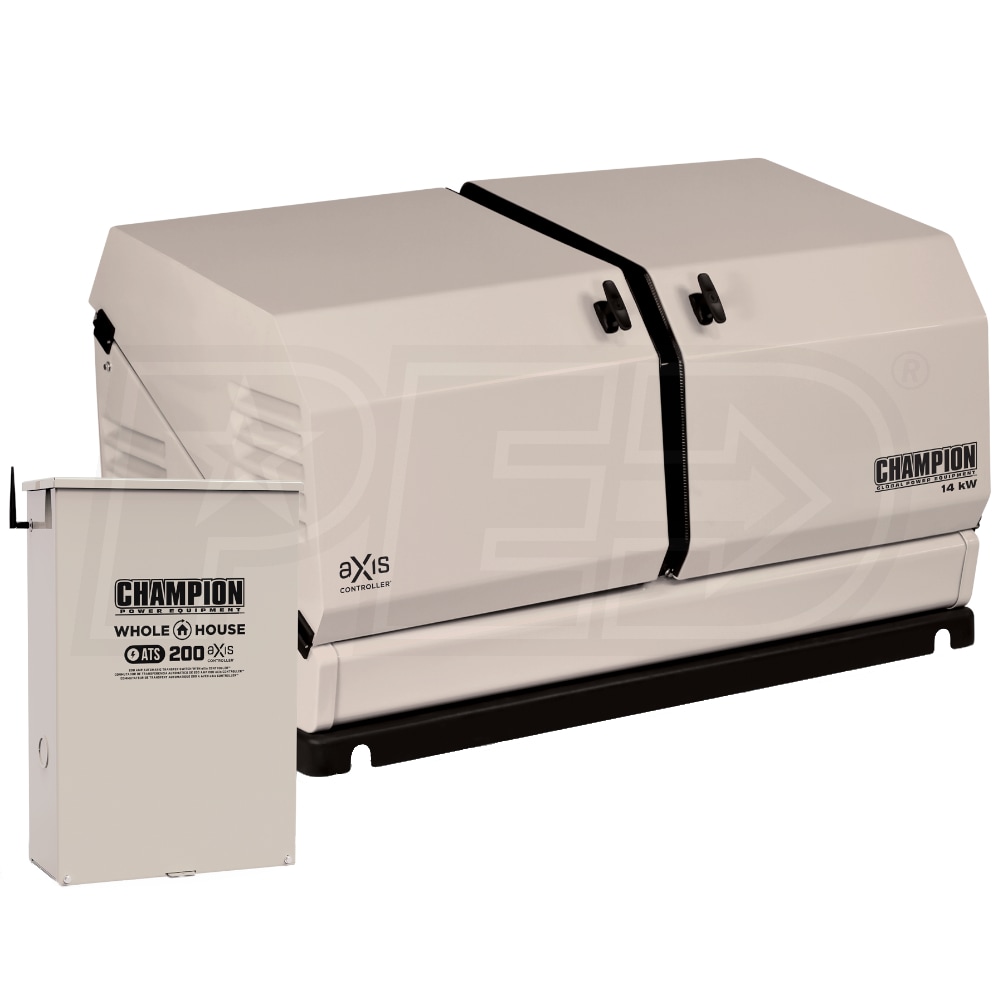

Champion 14kW Standby Generator System (200A Service Disc w/ aXis Load Management)

Model:

100837

Write A Review
$4,499.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Champion 14kW Standby Generator System (200A Service Disc w/ aXis Load Management)
Champion 14kW Standby Generator System (200A Service Disc w/ aXis Load Management)
Model: 100837
$4,499.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

14,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Champion

  • Champion 14kW (LPG) / 12.5kW (NG) aXis Home Standby Generator System
  • Enjoy totally automatic, seamless power to your home during an outage
  • 10-Year Limited Warranty* w/ FREE Lifetime Technical Support
  • Industry leading warranty keeps you protected for the long haul
  • aXis Generator Controller™ w/ 4" Color Display
  • Provides communication between generator and transfer switch
  • Power line carrier technology eliminates need to run separate wires

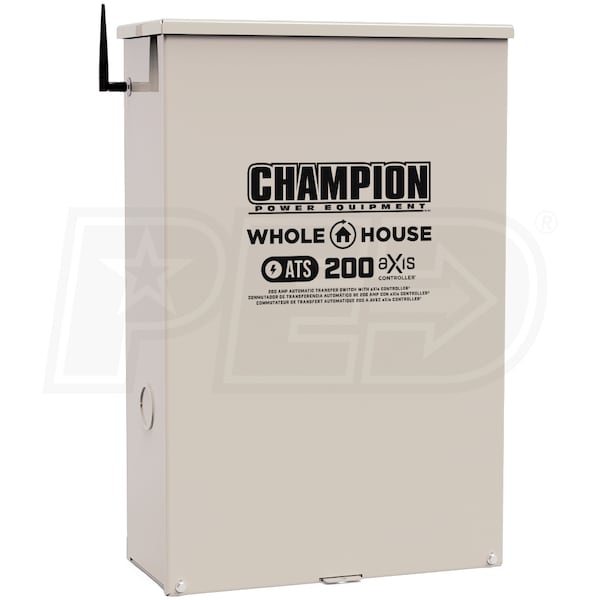

  • 200-Amp Axis Service Entrance Rated Automatic Transfer Switch
  • Installs between main meter & service panel for faster, less costly installation
  • NEMA 3R rated enclosure can be installed indoors or outdoors
  • Compatible w/ aXis load management modules
  • aXis Load Management Modules (Sold Separately)
  • Provides the ability to manage high-demand appliances
  • Less Than 5% Total Harmonic Distortion (THD)
  • Provides clean power safe for sensitive electronics

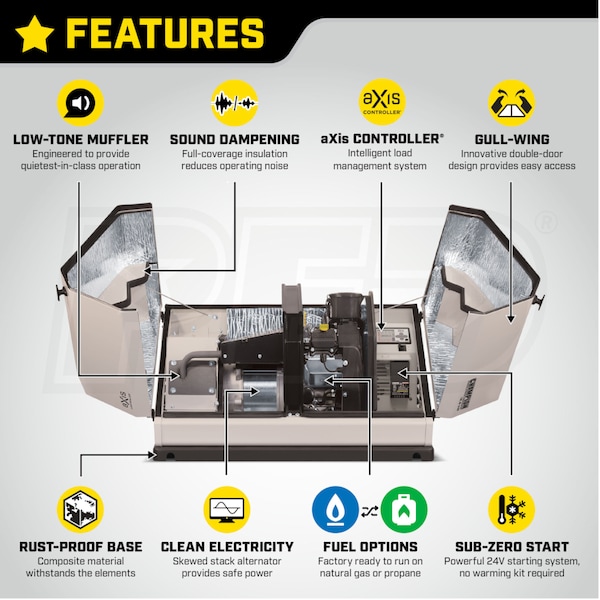

  • Aluminum-Zinc Coated Steel Enclosure
  • Gullwing-style door makes servicing this generator an easy task
  • Quiet Operation
  • Operates at a residential-friendly 62 dBA noise level
  • Advanced sound dampening and a specially designed low-tone muffler
  • 24-Volt Starting System (Batteries Not Included)
  • Operates in sub-zero or extreme heat (between -22° F and 104° F)
  • Provides reliable, easy starting without a battery warmer or cold weather kit
  • 754cc OHV Champion Engine
  • Innovative advanced airflow design for cooler operating temperatures
  • Also Includes:
  • Battery Jumper Wire, Gas Inlet Flex Hose & Gas Inlet Hose
  • Master Mixer Assembly & Keys for Door Lock
  • *Note - 2-Year Limited Warranty For Automatic Transfer Switch
  • *^*OIL NOT INCLUDED*^*
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

100837
specs product image PID-151252
Overview
Product Category
Generator - Standby
Weight
482 Pounds
CARB Compliant
Yes
Consumer Warranty
10 Years
Product Style
Standby Generator
Product Length
50 Inches
Product Width
30.3 Inches
Product Height
43.9 Inches
UPC
817198025001
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12500 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
116.5 ft³/hr
NG Fuel Consumption @ 100% Load
180.1 ft³/hr
LP Fuel Consumption @ 50% Load
1.6 gallons/hr
LP Fuel Consumption @ 100% Load
2.6 gallons/hr
Rated Amps
58.3 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
62
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
150-Amps
Battery
Not Included
Enclosure
Steel
Circuit Breaker Size
65 Amps
A/C Ton Rating
4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Sold Separately
ATS Service Disconnect
Yes
Cooling System
Air Cooled
Grade Type
Emergency
Wi-Fi Remote Monitoring
No
Prime Power
No
Low THD
Yes
Engine
Engine Brand
Champion
Starting System
24-Volt Auto Start
CC
754 CC
Consumer Engine Warranty
16 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
