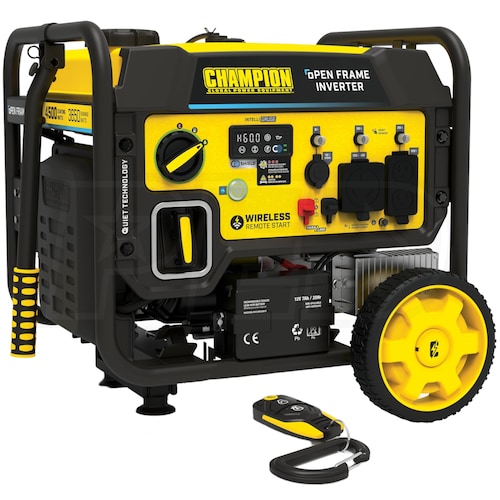

Champion 201054 - 3650 Watt Open-Frame Electric Start Inverter Generator w/ RV Outlet & Wireless Remote (CARB)

Model:

201054

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 201054 - 3650 Watt Open-Frame Electric Start Inverter Generator w/ RV Outlet & Wireless Remote (CARB)
Champion 201054 - 3650 Watt Open-Frame Electric Start Inverter Generator w/ RV Outlet & Wireless Remote (CARB)
Model: 201054
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

3,650 Rated Watts

Surge Watts

4,500
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion 3650W Remote Start Open Frame Inverter Generator
  • Ideal for a wide range of uses from RV power to emergency backup
  • Electric Start (Battery Included) w/ Wireless Remote Start
  • Start and stop from up to 80 ft. away
  • Auto-choke design for easy one-touch starting
  • Quiet Technology - 50% Quieter & 20% Lighter
  • Compared to a traditional 3650W Champion generator
  • Redesigned and reengineered for a more compact, quieter package
  • CO Shield™ Carbon Monoxide (CO) Detection
  • Automatically shuts engine down when high levels of CO are present
  • 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutdown
  • Fuel-efficient, reliable and made for easier starting (Recoil)
  • Provides added protection to extend the life of the generator
  • Clean Power Technology - Less Than 3% THD
  • Safer power for your electronics and equipment
  • Economy Mode - Up to 17 Hours of Run Time @ 25% Load
  • Adjusts engine speed to the optimum level depending on load
  • Reduces fuel use and engine wear for extended operation
  • TT-30 RV Receptacle
  • Easily connect your 30A RV cord (Not Included) for quiet power
  • Parallel Operation Capability*
  • Increase available wattage when linking (2) Champion generators
  • *Requires Champion parallel kit (Not Included)
  • Intelligauge Digital Display
  • Monitor voltage, frequency (Hz), run time and total run time
  • 8" Never-Flat Wheels & Folding Handle
  • Makes this generator extremely portable
  • 12V DC Outlet
  • Includes 12V/DC USB adapter for charging phones/tablets
  • Also Includes:
  • Engine Oil, Funnel and Spark Plug Wrench & Owner's Manual
  • 3-Year Limited Warranty - EPA & CARB/50 State Certified
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
RV Ready 30-Amp
8-Amp DC - Cigarette Adapter
201054
specs product image PID-114917
Overview
Assembly Required
Yes
Weight
96.8 Pounds
CARB Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.8 Inches
Product Width
23.5 Inches
Product Height
20.6 Inches
UPC
817198024493
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
3650 Watts
Surge Watts
4500 Watts
Fuel Type
Gasoline
Rated Amps
30.4 Amps
Portability Kit
Never Flat Wheels
Tank Size
2.9 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
CO Sensing
Yes
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
224 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
8-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
RV Ready 30-Amp
1
