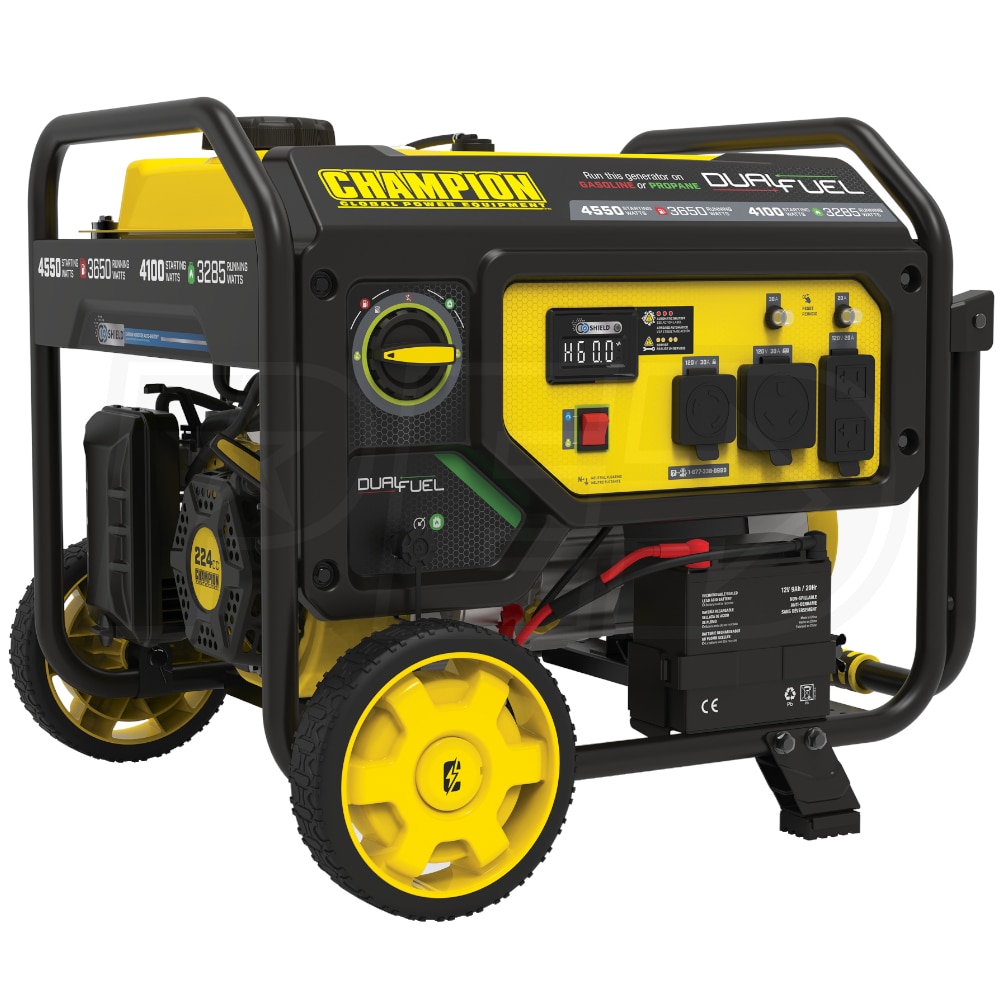

Champion 201157 - 3650 Watt Electric Start Dual Fuel Portable Generator w/ RV Outlet & CO Shield® (CARB)

Model:

201157

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Champion 201157 - 3650 Watt Electric Start Dual Fuel Portable Generator w/ RV Outlet & CO Shield® (CARB)
Champion 201157 - 3650 Watt Electric Start Dual Fuel Portable Generator w/ RV Outlet & CO Shield® (CARB)
Model: 201157
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

3,650 Rated Watts

Surge Watts

4,550
Starting Watts

Fuel

Gasoline/LP

Engine

Champion

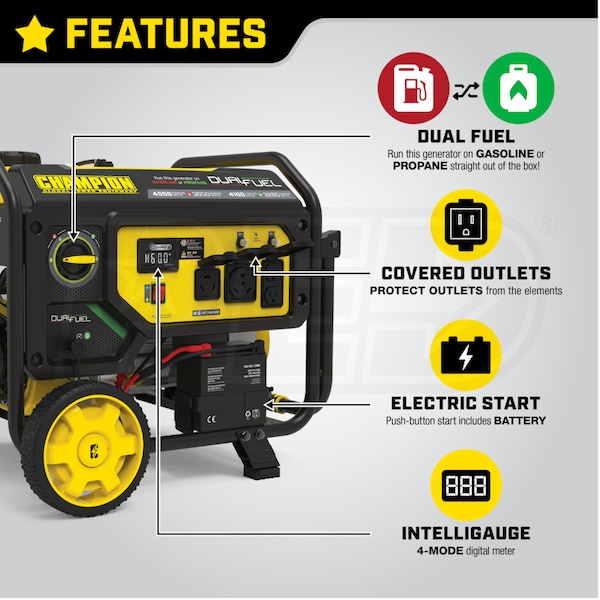

  • Champion Dual Fuel Portable Generator w/ RV Outlet
  • Designed to ensure ease of use with either gas or propane fuel
  • Dual Fuel Operation
  • 3650 Running watts & up to 4550 starting watts on gasoline
  • 3285 Running watts & up to 4100 starting watts on propane

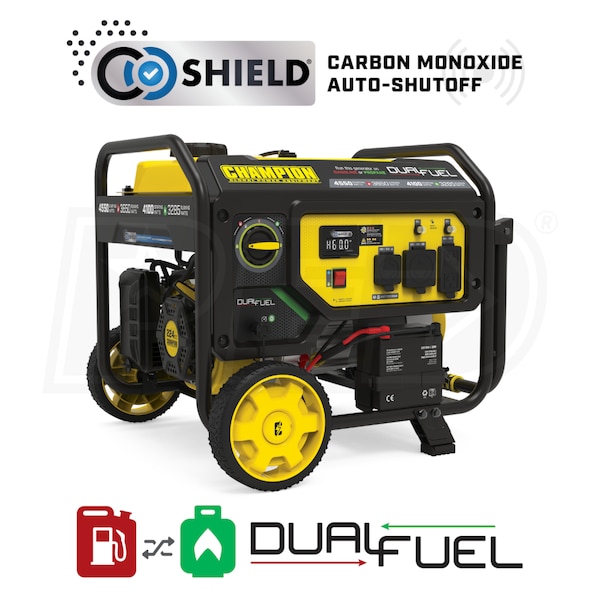

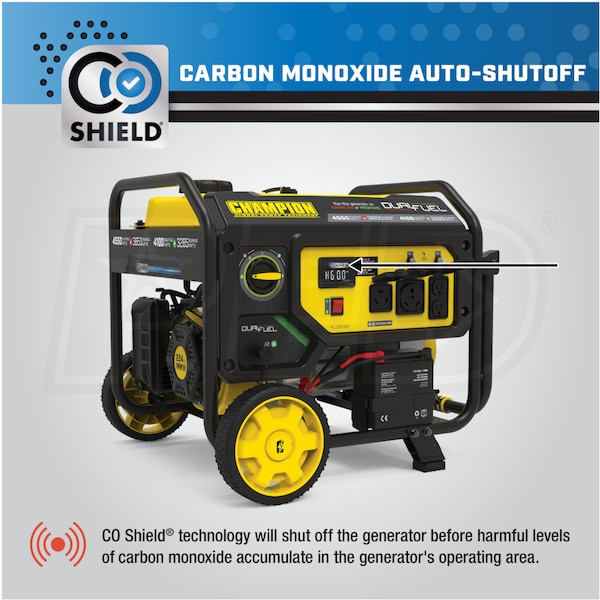

  • CO Shield® Technology^*^
  • Alerts and shut off the generator automatically
  • Electric Start (Battery Included) w/ Recoil Backup
  • Auto-choke design for easy one-touch starting
  • 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff
  • Provides added protection to extend the life of the generator
  • Easy Start Dial
  • Makes it extremely simple to select fuel type
  • Intelligauge Digital Display
  • Monitor voltage, frequency (Hz), run time and total run time
  • Volt Guard™
  • Built-in surge protector for added safety

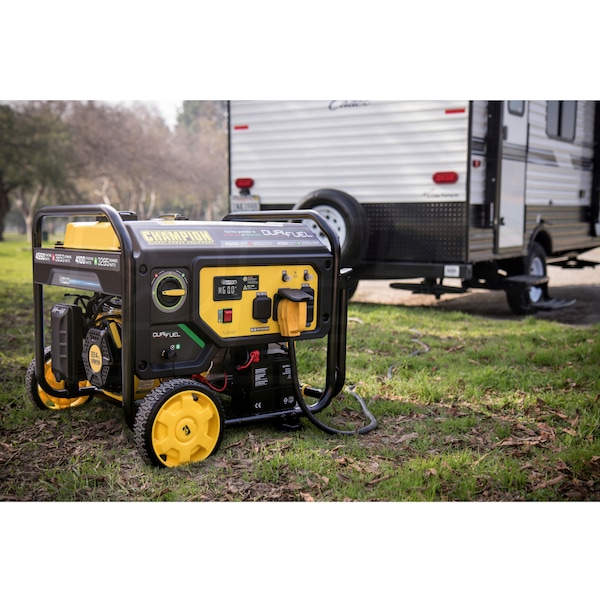

  • RV Ready - TT-30R Outlet
  • Power your RV without the need of an extra adapter
  • 30-Amp (5-30R) Outlet
  • Allows for connection to a manual transfer switch (MTS) (Not Included)
  • Allows for connection to a convenience cord (Not Included)
  • 4.7-Gallon Extended Run Fuel Tank
  • Provides up to 14 hours of runtime at 50% load
  • 20 or 30-lb Tank Compatible (Not Included)
  • Provides up to 10.5 hours of run time @ 1/2 load (20 lb. Tank)
  • Cold Start Technology
  • Provides easier starting during the colder months

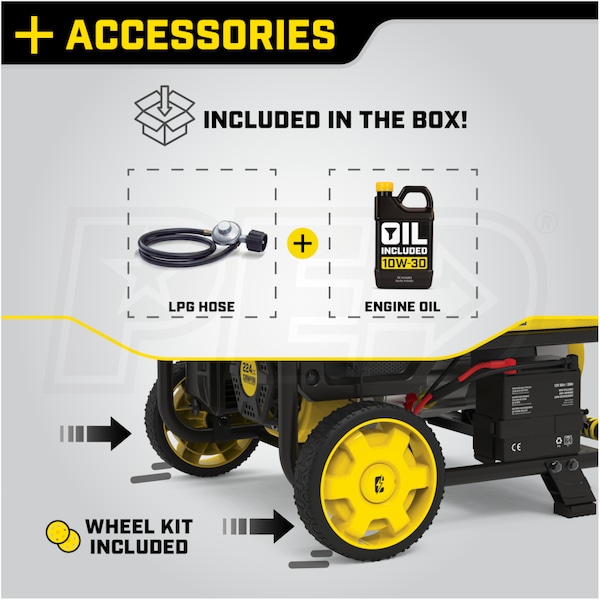

  • Also Includes
  • 6.5' LPG Hose w/ Regulator, Start-Up Engine Oil & Oil Funnel
  • 3-Year Limited Warranty - CARB Compliant - For Use In All 50 States
  • ^*^ Meets ANSI/PGMA G300-2018 Requirements
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA L5-30R
RV Ready 30-Amp
201157
specs product image PID-151417
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
110 Pounds
CARB Compliant
Yes
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.4 Inches
Product Width
19.7 Inches
Product Height
19.8 Inches
UPC
817198025629
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3650 Watts
Surge Watts
4550 Watts
Fuel Type
Gasoline/LP
Rated Amps
30.4 Amps
Tank Size
4.7 Gallons
Run Time @ 50% Load
14 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
CO Sensing
Yes
Low THD
No
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
224 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
