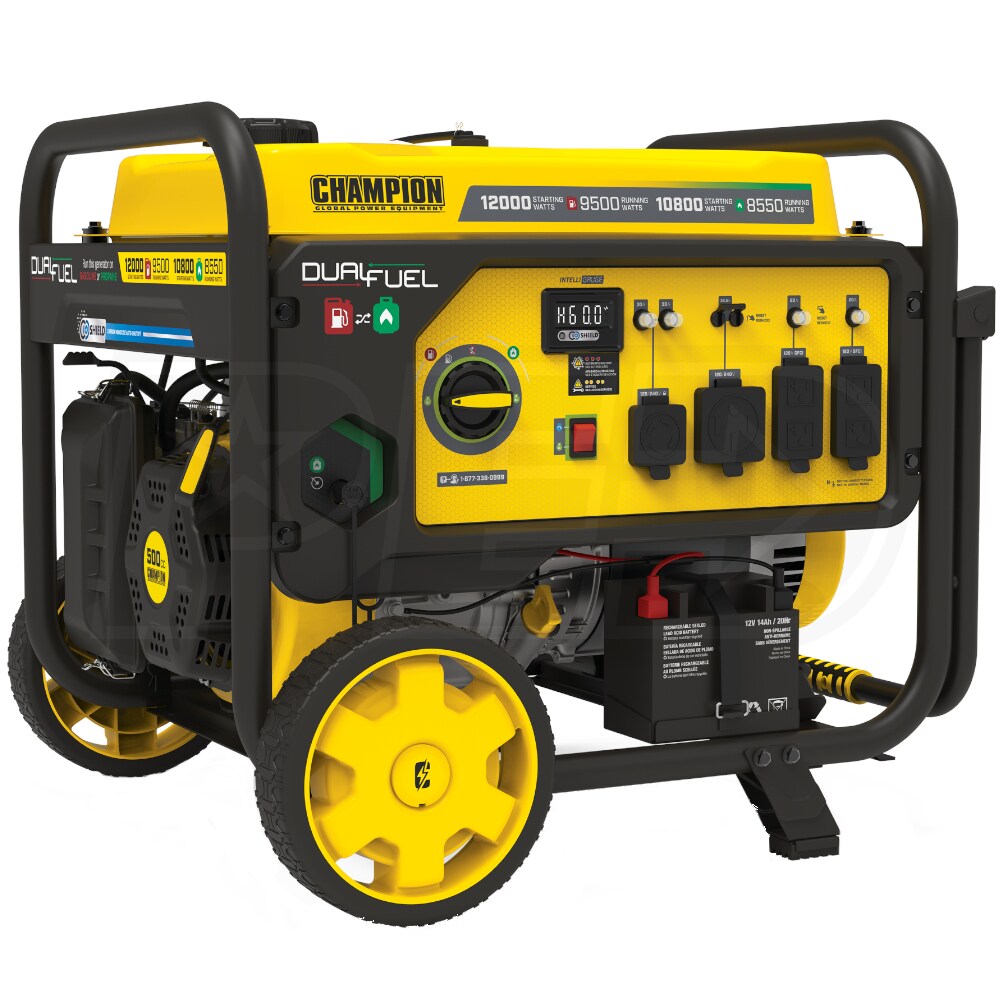

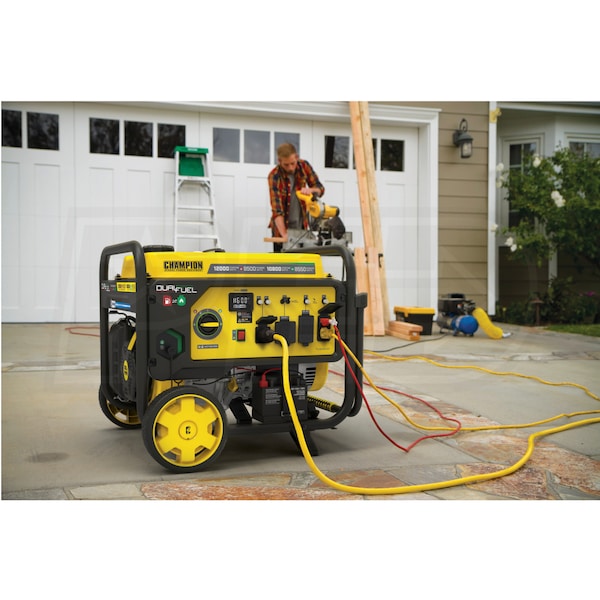

Champion 201159 - 9500 Watt Electric Start Dual Fuel Portable Generator w/ CO Shield® (CARB)

Model:

201159

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Champion 201159 - 9500 Watt Electric Start Dual Fuel Portable Generator w/ CO Shield® (CARB)
Champion 201159 - 9500 Watt Electric Start Dual Fuel Portable Generator w/ CO Shield® (CARB)
Model: 201159
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

9,500 Rated Watts

Surge Watts

12,000
Starting Watts

Fuel

Gasoline/LP

Engine

Champion

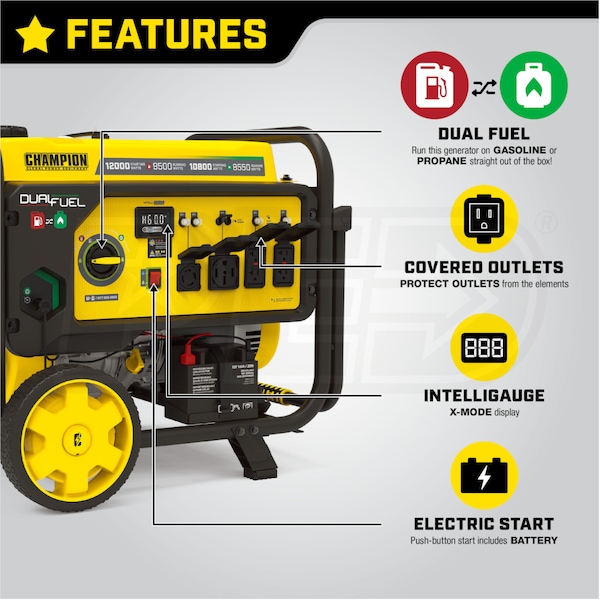

  • Champion Dual Fuel Electric Start Portable Generator

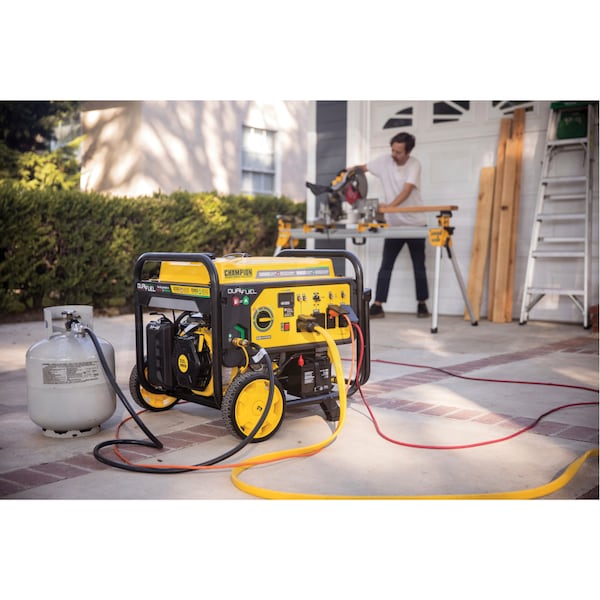

  • Ideal for home backup and big jobs around the yard

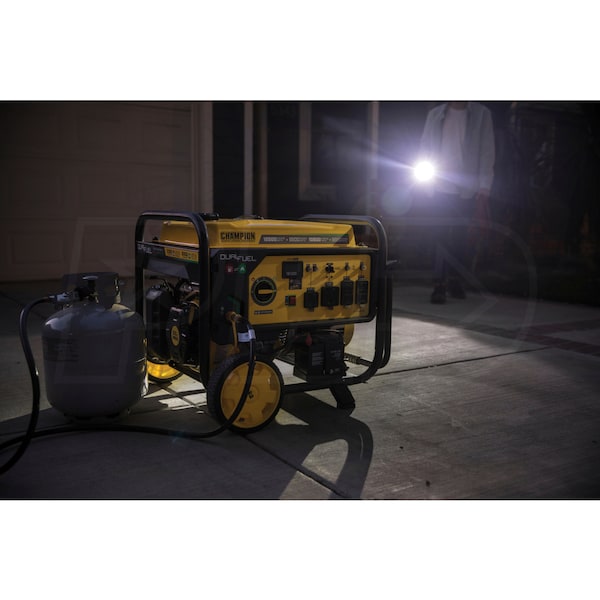

  • Versatile, Dual Fuel Operation w/ Fuel-Select Dial (Propane Tank Not Provided)
  • 12,000 W (Starting)/ 9500 W (Rated) when using Gasoline
  • 10,800 W (Starting)/ 8550 W (Rated) when using Propane

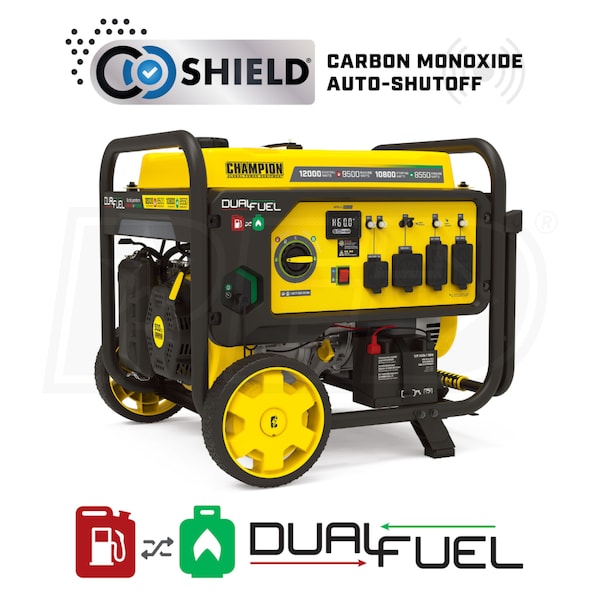

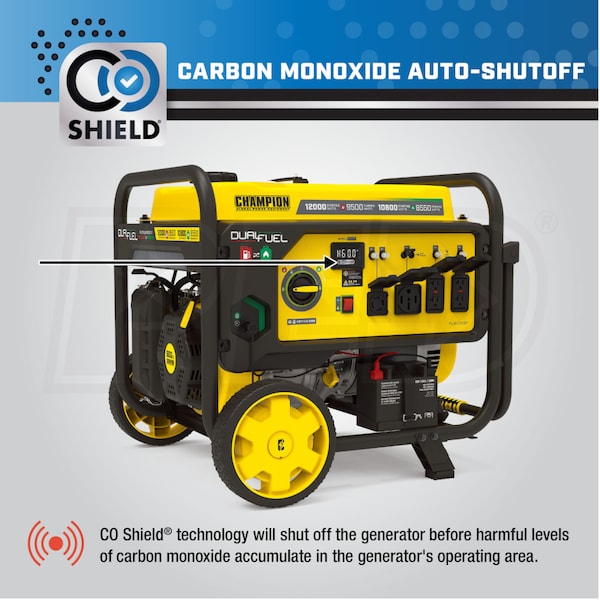

  • CO Shield® Technology^*^
  • Alerts and shut off the generator automatically
  • Push-Button Electric Start (Battery Included)
  • Plus an easy-pull recoil starter, so you'll always be ready for an outage
  • 500cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff Sensor
  • Provides added protection to extend the life of the generator
  • Cast iron sleeve for long life and easy maintenance

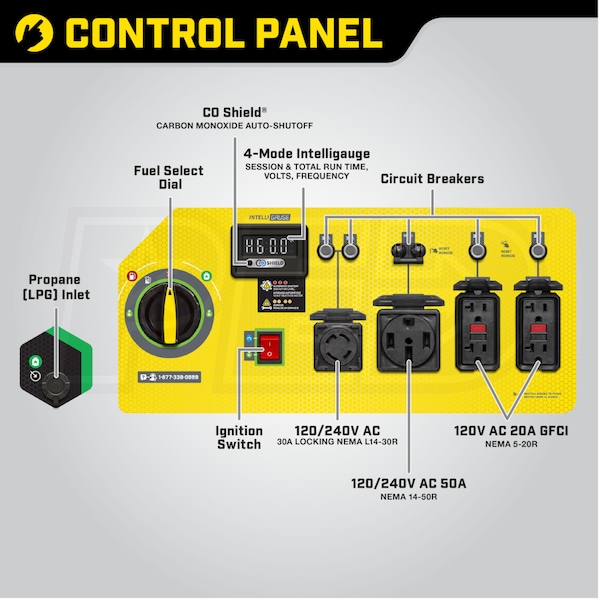

  • 120/240V 30-Amp (L14-30R) & 50-Amp (14-50R) (39.5 Max Amps) Outlet***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
  • Keeps your appliances protected while preventing overload to generator
  • Large 7.7-Gallon Fuel Tank
  • Provides up to 8-hours of run time @ 50% load
  • Volt Guard™ - Built-In Surge Protector
  • Protects from power surges that can damage you appliances
  • Intelligauge Digital Display
  • Easily monitor your voltage, frequency & operating hours
  • Never Flat Tires & Fold-Down Locking Handle
  • Makes this generator easy to move on the most bumpy terrain

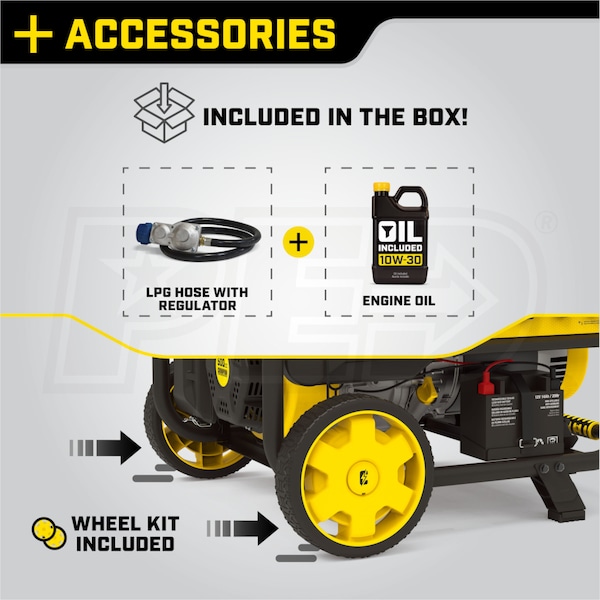

  • Also Includes 6.5' Propane Hose & Engine Oil
  • 3-Year Limited Warranty - CARB Compliant
  • ***Note - Allows You To Get Maximum Power From Generator
  • ^*^ Meets ANSI/PGMA G300-2018 Requirements
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-50R
201159
specs product image PID-151420
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
217 Pounds
CARB Compliant
Yes
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator

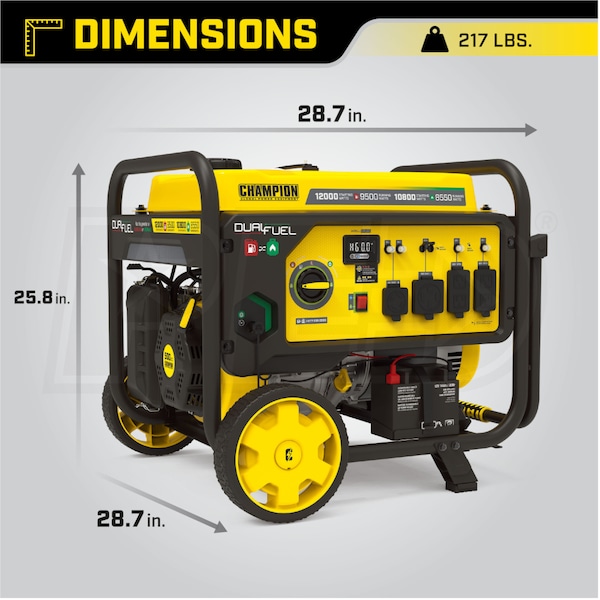

Product Length
28.7 Inches
Product Width
28.7 Inches
Product Height
25.8 Inches
UPC
817198025759
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9500 Watts
Surge Watts
12000 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
8550 Watts
Rated Amps
39.5 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.7 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
CO Sensing
Yes
Low THD
No
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
500 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
