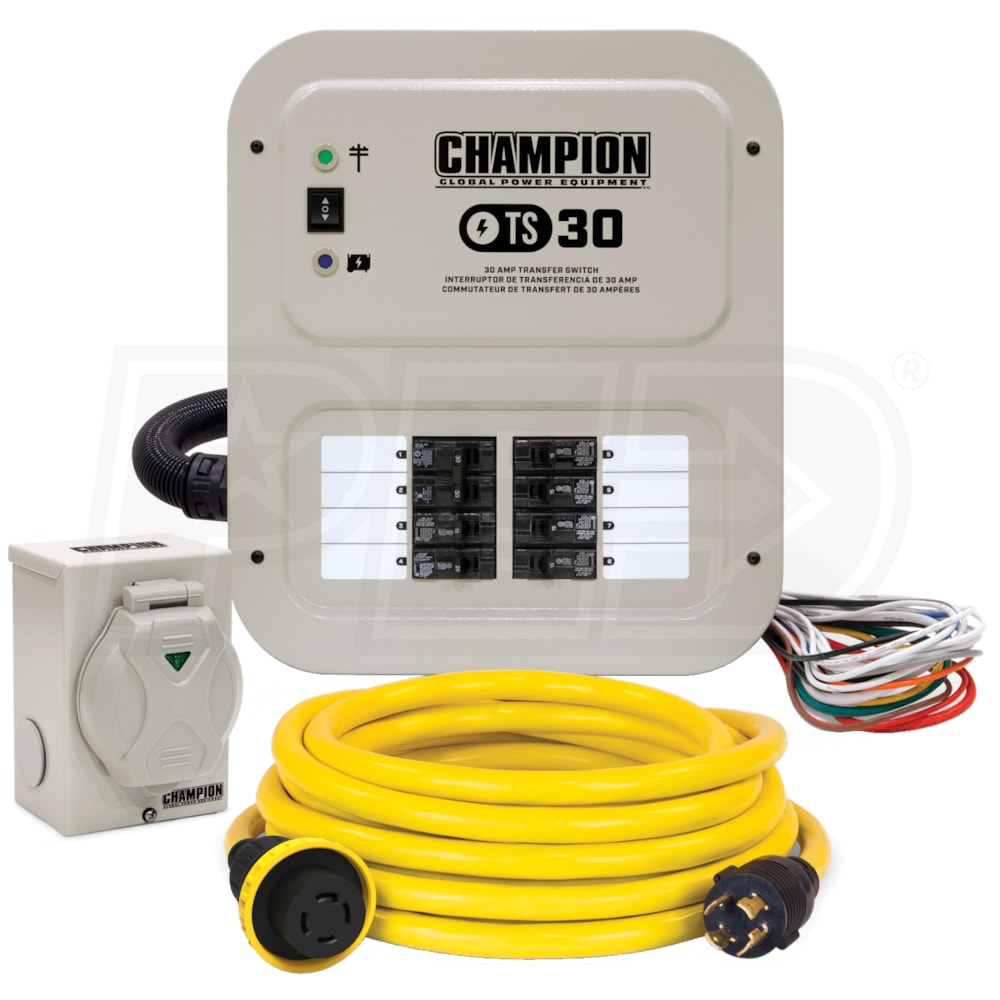

Champion 30-Amp Indoor Manual Transfer System (8-Circuit) w/ 25' Cord & PIB
Model:
201192
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Champion 30-Amp Manual Transfer Switch System (120/240V)
- No need for extension cords during an emergency
- Pre-Wired 30-Amp Indoor Manual Transfer Switch
- Allows for faster installation
- Also Includes
- (1) 25' 30-Amp (L14-30) Power Cord

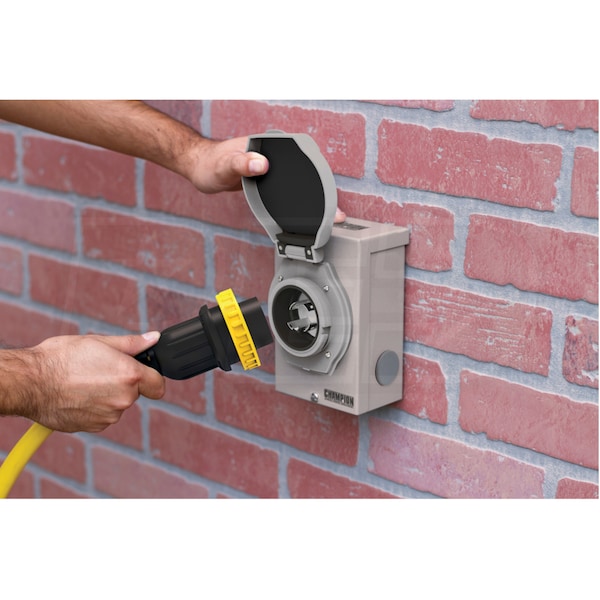

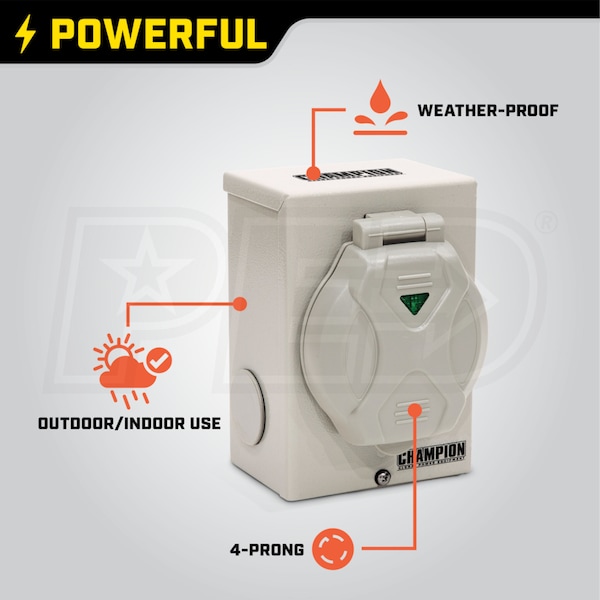

- (1) 30-Amp (L14-30) Power Inlet Box (must be hardwired)
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.

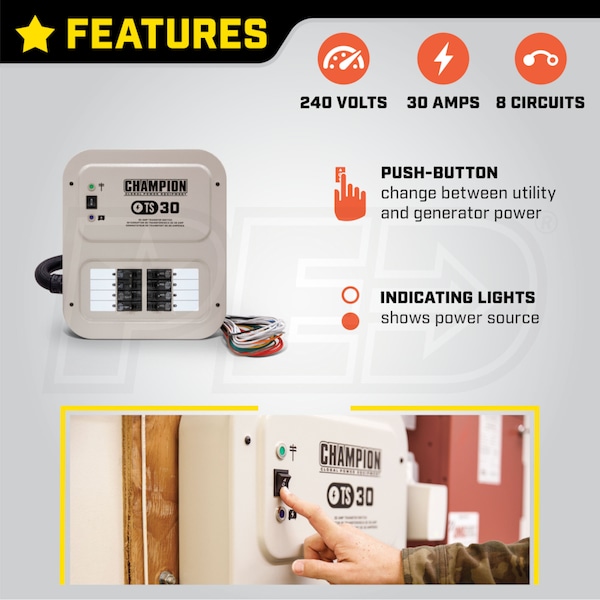

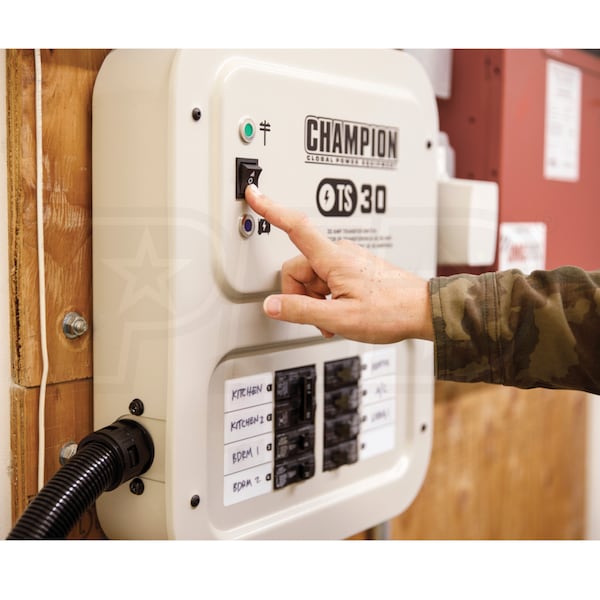

- Push-button change between utility and generator power
- Includes 8 Total Circuits
- (1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, & (5) 15-Amp 1-Pole
- LED Power Source Indicator Lights
- Makes it easy to identify power source
- *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
- Note - Should Be Installed By Licensed Electrician
- 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
201192
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
33.1 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
17.6 Inches
Product Width
15.3 Inches
Product Height
4.4 Inches
UPC
817198026015
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
