Cummins Onan 5.5 HGJAB-1038
Cummins Onan 5.5 HGJAB-1038
Hover to zoom
1 Of 5

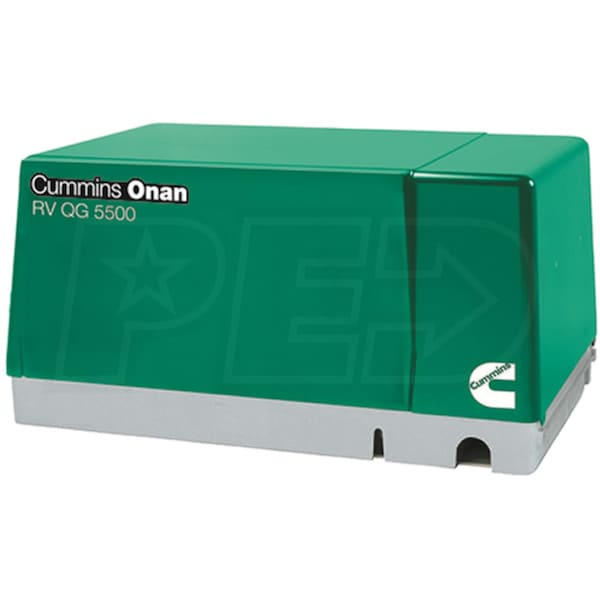

Cummins Onan RV QG 5500 - 5.5 HGJAB-1038 - 5.5kW RV Generator (Gasoline - (2) 30A Breakers)

Model:

5.5 HGJAB-1038

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

RV

Run Watts

5,500 Rated Watts

Voltage

120 Single-Phase

Fuel

Gasoline

Engine

Cummins Onan



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 5.5 kW Gasoline Powered RV Generator - 5.5 HGJAB-1038 (1049**)
  • More power for medium size RVs - (2) 30A Breakers
  • Runs two 13,500 BTU AC units w/ 1100 additional watts available
  • Cummins Onan 4-Cycle OHV V-Twin Engine (.6 Gal/H @ 1/2 Load)
  • Quietest in its class w/ excellent fuel economy
  • Microprocessor Controlled
  • Digital voltage regulator prevents damaging voltage spikes
  • Self-diagnostic capability to simplify troubleshooting
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Integral USDA Forest Service-approved spark-arrestor muffler
  • NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
  • Universal Mounting Tray
  • Structural capability to support the generator set in RV apps.
  • 4-Point focalized mounting system with vibration isolators
  • Integral Control Panel
  • Instant one-touch stop switch
  • Added Features
  • Fuel filter, oil filter, air filter & mechanical governor
  • Automotive type starter & electric fuel pump
  • 3 Year Limited Warranty (Please See Warranty Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

5.5 HGJAB-1038
specs product image PID-82991
Overview
Weight
279 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
33.6 Inches
Product Width
22.2 Inches
Product Height
16.7 Inches
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
Gasoline
Rated Amps
45.8 Amps
Decibel Rating @ 3m
67
Fuel Consumption
.3-.9 gallons/hr
Circuit Breaker Size
30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
