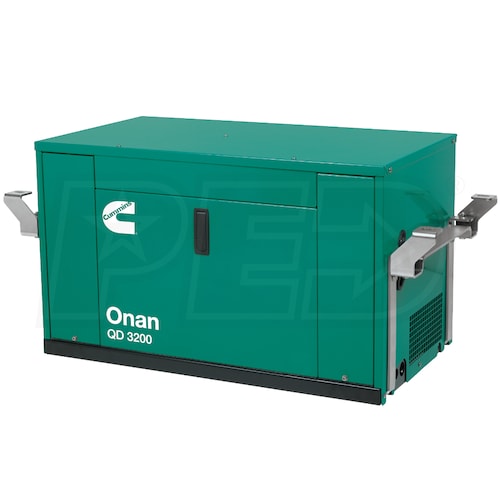

Cummins Onan RV QD 3200 - 3.2HDZAA-6508F - 3.2kW RV Generator (Diesel)

Model:

A066G703

Write A Review
$7,380.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$130 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins Onan RV QD 3200 - 3.2HDZAA-6508F - 3.2kW RV Generator (Diesel)
Cummins Onan RV QD 3200 - 3.2HDZAA-6508F - 3.2kW RV Generator (Diesel)
Model: A066G703
$7,380.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

RV

Run Watts

3,200 Rated Watts

Voltage

120 Single-Phase

Fuel

Diesel

Engine

Cummins Onan

    For Additional Models - Please Call Us @ 1-800-800-3317
  • RV Onan Generator Quiet Dieselâ„¢ Series - Onan QD 3200
  • Enough power to run one 13,500 BTU AC (30A 1-Pole Breaker)
  • Plus an additional load up to 1000 W at 100°F and 500 ft Alt.
  • 347cc Air-Cooled 1-Cylinder Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ oil & fuel filters (.3 Gal/h 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Constant Speed Operation
  • Provides the quiet diesel performance for smaller RVs
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels & provides cooling via inlet/outlet ducts
  • Double Isolation Mounting System
  • Engineered to Reduces vibration for quieter operation
  • Integrated Generator Set & Engine Control
  • LCD provides user friendly controls & safety features
  • Meets applicable U.S. EPA and CARB standards
  • Includes Remote Display Harness (26.2-FT)
  • 3 Year / 2000 Hour Warranty; Non-RV Applications 1 Year / 1000 Hour Warranty (Please See Warranty Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A066G703
specs product image PID-14358
Overview
Weight
205 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
30.2 Inches
Product Width
17.3 Inches
Product Height
18 Inches
Additional Model Numbers

RV QD 3200, A066G703

Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Rated Watts
3200 Watts
Fuel Type
Diesel
Rated Amps
26.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60
Hour Meter
Yes
Grade Type
Recreational
Low THD
Yes
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
CC
347 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
