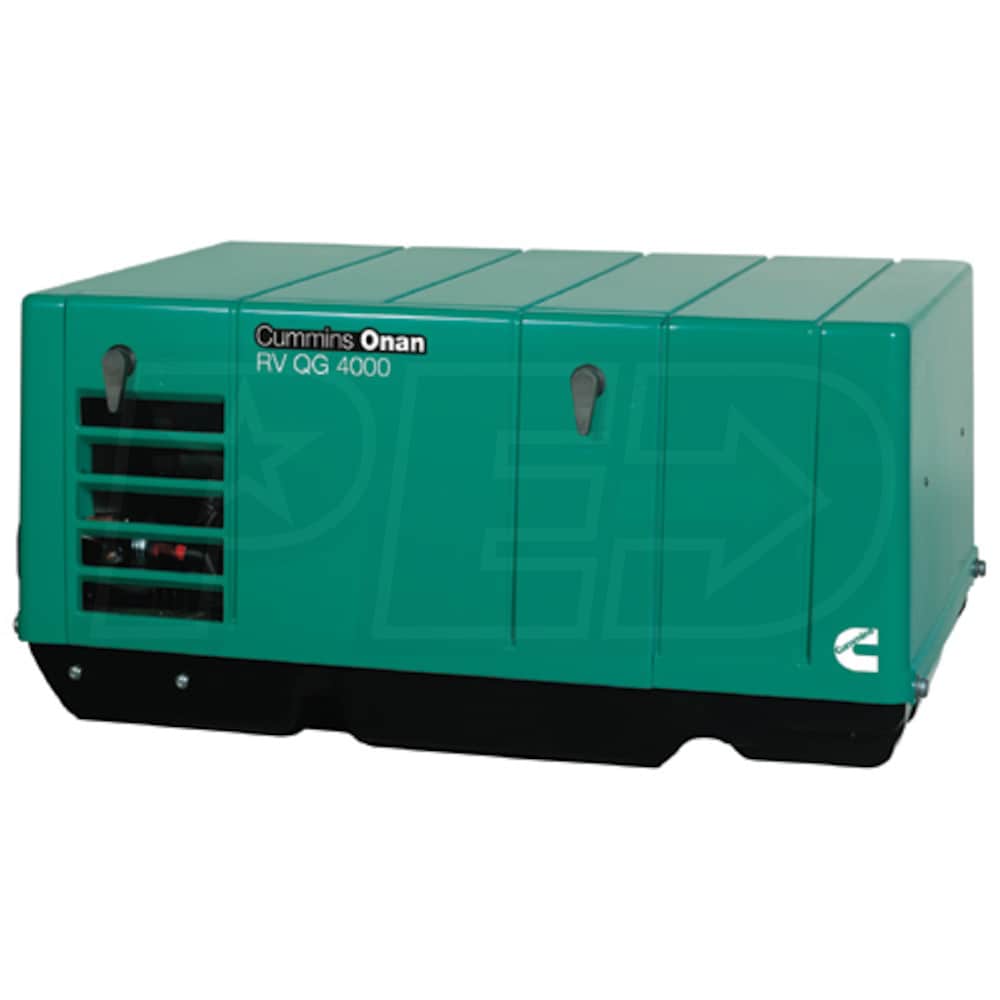

Cummins Onan RV QG4000 - 4KYFA-26100 - 4.0kW RV Generator (Gasoline)

Model:

A055E866

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

RV

Run Watts

4,000 Rated Watts

Voltage

120 Single-Phase

Fuel

Gasoline

Engine

Cummins Onan

    For Additional Models - Please Call Us @ 1-800-800-3317
  • 4.0 kW Gasoline Powered RV Generator (Model 26100)
  • Enough power to run a 15,000 BTU AC (30A 1-Pole Breaker)
  • Designed For Use With Multiple Applications
  • Fifth wheels, travel and sport utility trailers
  • Cummins Onan 4-Cycle OHV Engine (.5 Gal/H @ 1/2 Load)
  • Provides quiet operation w/ excellent fuel efficiency
  • Microprocessor Controlled
  • Digital voltage regulator prevents damaging voltage spikes
  • Provides added protection from overloads and faults
  • Sound-Attenuating Enclosure
  • Lowers noise levels while providing cross-flow cooling
  • Control Panel w/ LED Status Indicator Light
  • Start-Stop/Prime rocker switch
  • Provides set diagnostics
  • USDA Forest Service Approved Spark Arrestor Muffler
  • NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
  • Added Features
  • Magnetic circuit breaker & fused DC circuits (to protect wiring)
  • 125" generator set output leads
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A055E866
specs product image PID-6212
Overview
Weight
172 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
30 Inches
Product Width
19.7 Inches
Product Height
14.4 Inches
UPC
690781001220
Additional Model Numbers

RV QG 4000, A055E866

Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
33.6 Amps
Decibel Rating @ 3m
68
Fuel Consumption
.3-.7 gallons/hr
Circuit Breaker Size
30 Amps
Min. Air Inlet - Front
7.2" x 5.1"
Min. Air Outlet - Bottom
9.6" x 3.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
CC
304 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Cast Iron Sleeve
Yes
