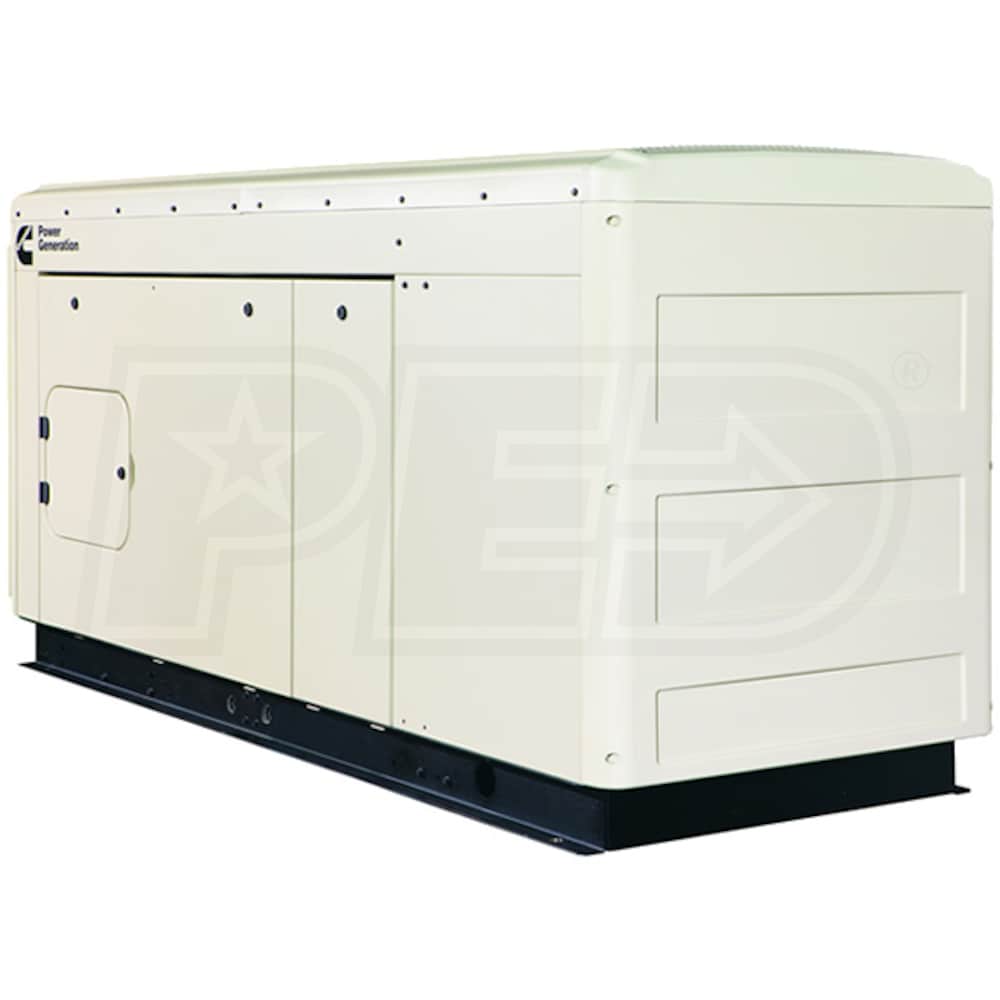

Cummins C20D6 - 20kW Automatic Standby Diesel Generator (No Fuel Tank) (120/240V Single-Phase)

Model:

A063P962-C20D6

Write A Review
$15,964.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$280 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins C20D6 - 20kW Automatic Standby Diesel Generator (No Fuel Tank) (120/240V Single-Phase)
Cummins C20D6 - 20kW Automatic Standby Diesel Generator (No Fuel Tank) (120/240V Single-Phase)
Model: A063P962-C20D6
$15,964.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Kubota

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Cummins 20kW Pre-Configured Diesel Generator
  • Great for home & light commercial applications
  • Designed for 120/240V Single Phase Service
  • Kubota 2.2L Liquid-Cooled Diesel Engine
  • 1800 RPM design provides reliability and fuel efficiency
  • EPA emissions certified and Tier IV Final compliant
  • PowerCommand® 1.1 Electronic Control
  • Provides industry-leading self-diagnostic capabilities
  • Meets NFPA 110 standards for level 1 systems
  • Factory-Installed Extreme Cold Weather Kit
  • Provides reliable cold-weather starting down to -40°
  • Brushless Alternator
  • Provides +/- 1% voltage & +/- 0.5% frequency regulation
  • As close to utility power as you can get in a standby generator
  • Flexible Exercise Mode
  • Exercise at a time, frequency and duration that suits you
  • Reducing unnecessary fuel consumption, emissions and noise
  • Advanced Design Sound Attenuated Aluminum Enclosure
  • Aesthetically appealing withstands winds up to 180 MPH
  • One of the quietest generators of its kind (68.4dB @ 7M)
  • Req. Cummins RA Series Automatic Transfer Switch (Sold Separately)
  • NOT Compatible w/ Cummins RSS Automatic Transfer Switches
  • 2-Year Limited Warranty
  • PLEASE NOTE - Requires Fuel Tank (Sold Separately)
  • *Not Designed For Prime Power Applications*
  • Fuel Consumption: 1.81 gal/hr @ 100% Load
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A063P962-C20D6
specs product image PID-104124
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1091 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
72 Inches
Product Width
34 Inches
Product Height
45.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
20000 Watts
Fuel Type
Diesel
Rated Amps
83.3 Amps
Diesel Fuel Consumption @ 50% Load
.97 gallons/hr
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
Grade Type
Emergency
Engine
Engine Brand
Kubota
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
