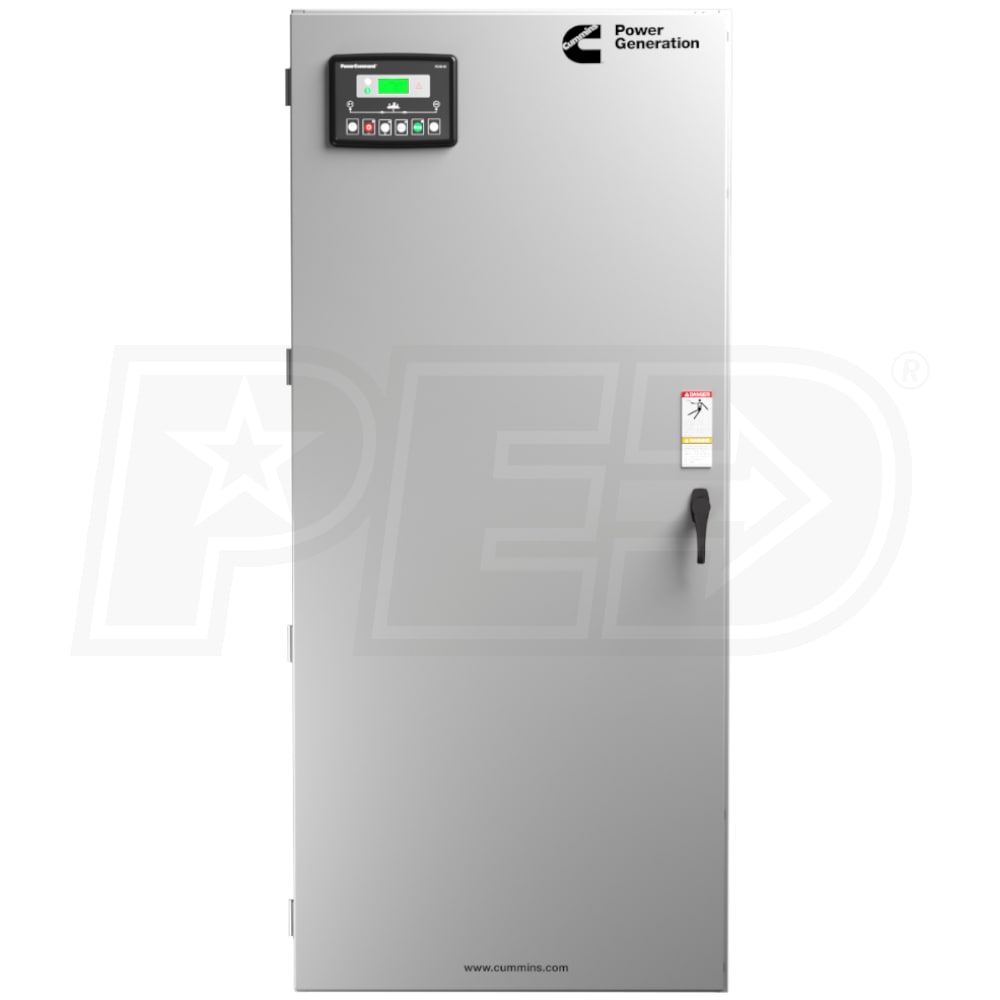

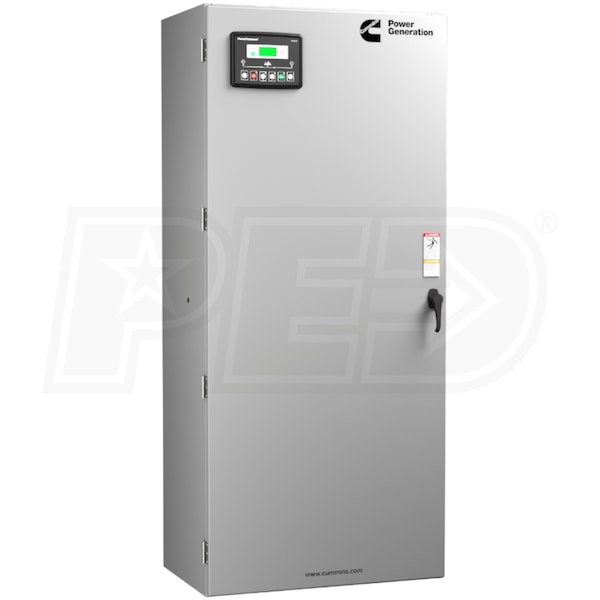

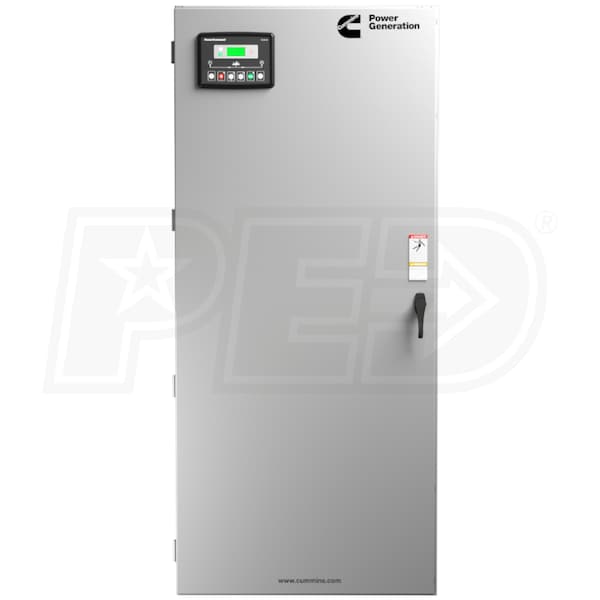

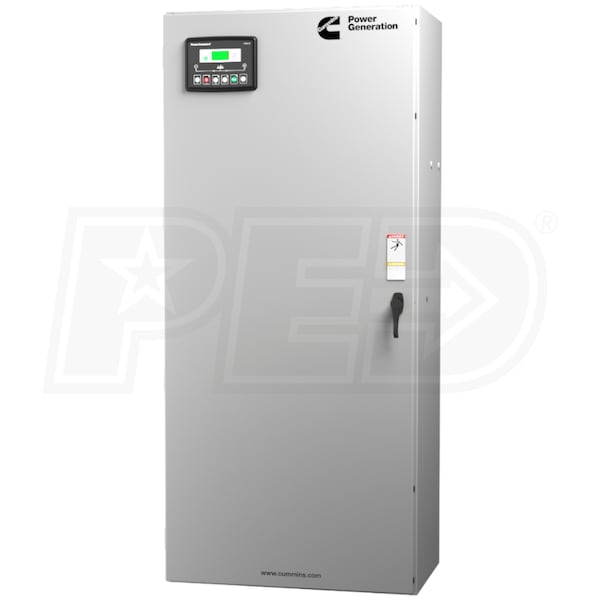

Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch (120/240V Single Phase)

Model:

A066Y105

Write A Review
$3,497.93
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 16-20 Weeks
synchrony card logo
$62 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch (120/240V Single Phase)
Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch (120/240V Single Phase)
Model: A066Y105
$3,497.93
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

400

Load Mgmt.

Not Compatible

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • Cummins PowerCommand® OTEC Automatic Transfer Switch
  • Features the New PowerCommand® 40 control
  • 400-Amp Automatic Transfer Switch (120/240V Single-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • Corrosion-Resistant NEMA 1R Enclosure
  • Approved for indoor applications
  • Lockable enclosure provides added Security
  • PowerCommand® 40-01 Control w/ LCD Digital Display
  • Microprocessor-based control, fully featured design
  • Front-panel PC software configuration w/ 3-Phase sensing on both sources
  • Event logging, synch check and manual restore to S1
  • Programmed Transition (Open Transition Timing)
  • Can be adjusted to completely disconnect the load from both sources
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programmable
  • UL/CSA
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A066Y105
specs product image PID-116996
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
225 Pounds
Consumer Warranty
1 Year
Product Length
54 Inches
Product Width
25.5 Inches
Product Height
18 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
