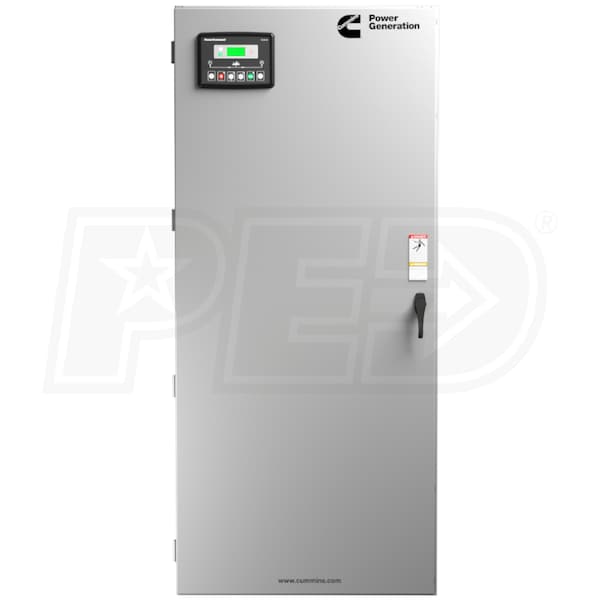

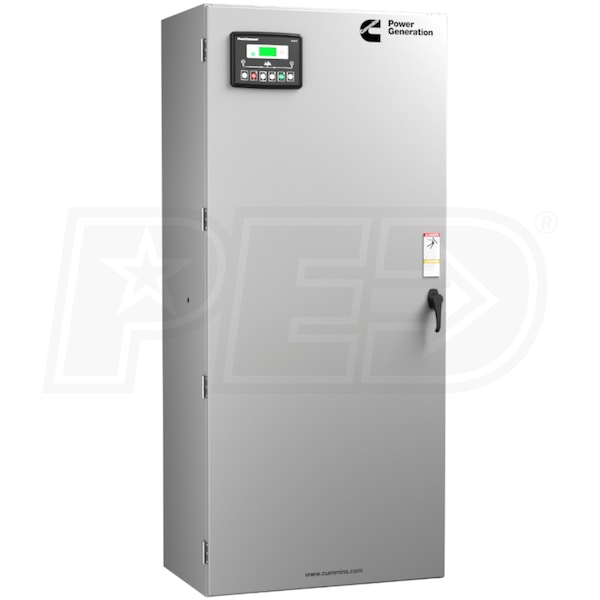

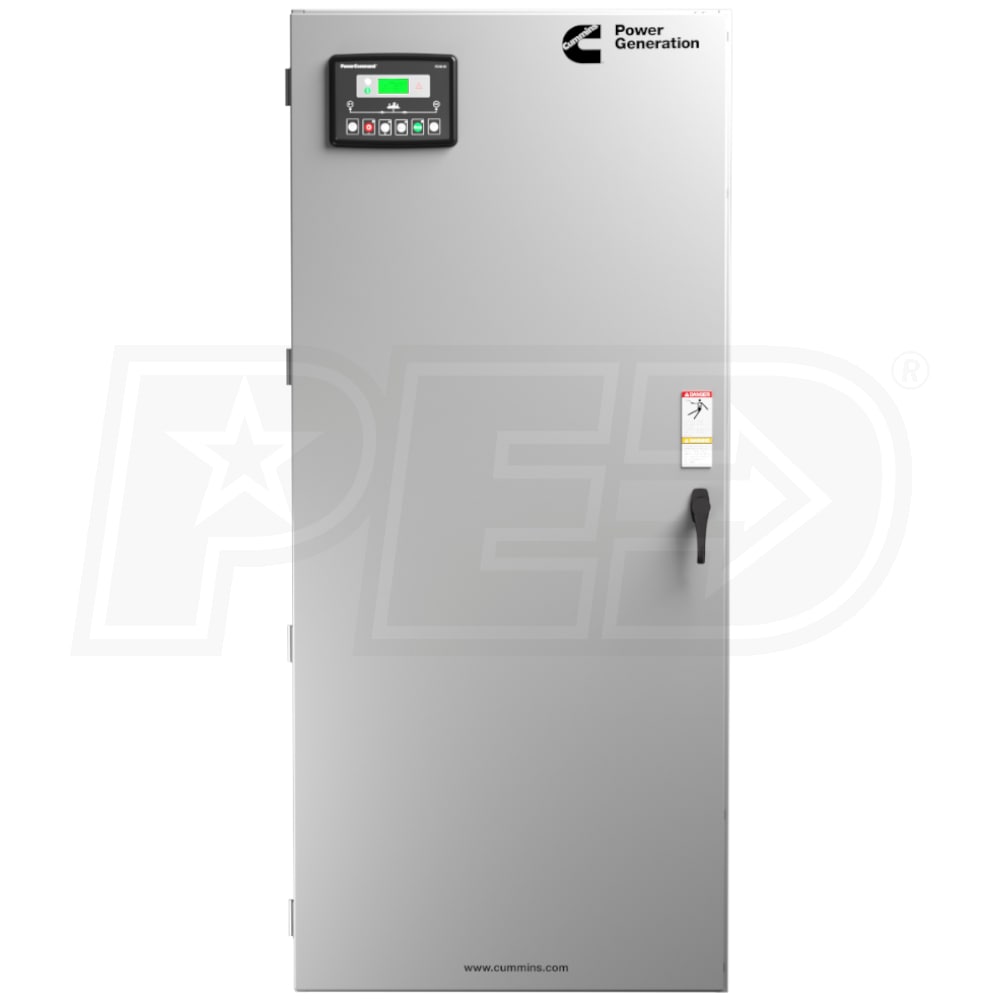

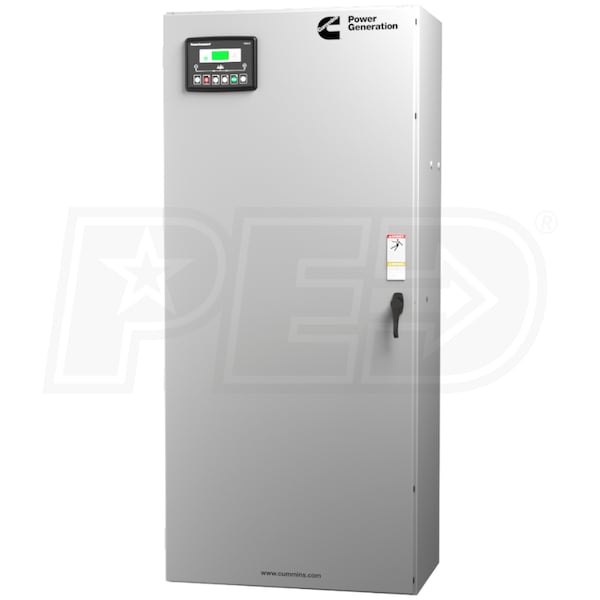

Cummins OTEC400 - 400-Amp PowerCommand® Outdoor Automatic Transfer Switch (120/240V Single Phase)
Model:
A066Y106
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Standard
Amp Rating
400
Load Mgmt.
Not Compatible
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- Cummins PowerCommand® OTEC Automatic Transfer Switch
- Features the New PowerCommand® 40 control
- 400-Amp Automatic Transfer Switch (120/240V Single-Phase)
- For use w/ Cummins Onan Liquid Cooled Standby Generators
- Designed For Standard Installation
- Requires a sub-panel for overload protection
- Corrosion-Resistant NEMA 3R Enclosure
- Approved for indoor or outdoor installations
- Lockable enclosure provides added Security
- PowerCommand® 40-01 Control w/ LCD Digital Display
- Microprocessor-based control, fully featured design
- Front-panel PC software configuration w/ 3-Phase sensing on both sources
- Event logging, synch check and manual restore to S1
- Programmed Transition (Open Transition Timing)
- Can be adjusted to completely disconnect the load from both sources
- Mechanical & Electrical Interlocking Design
- Prevents source-to-source connection through power/control wire
- Easy Service & Access
- Door mounted controls, single-plug harness & field programmable
- UL/CSA
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
A066Y106
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
275 Pounds
Consumer Warranty
1 Year
Product Length
59 Inches
Product Width
27.5 Inches
Product Height
16.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
