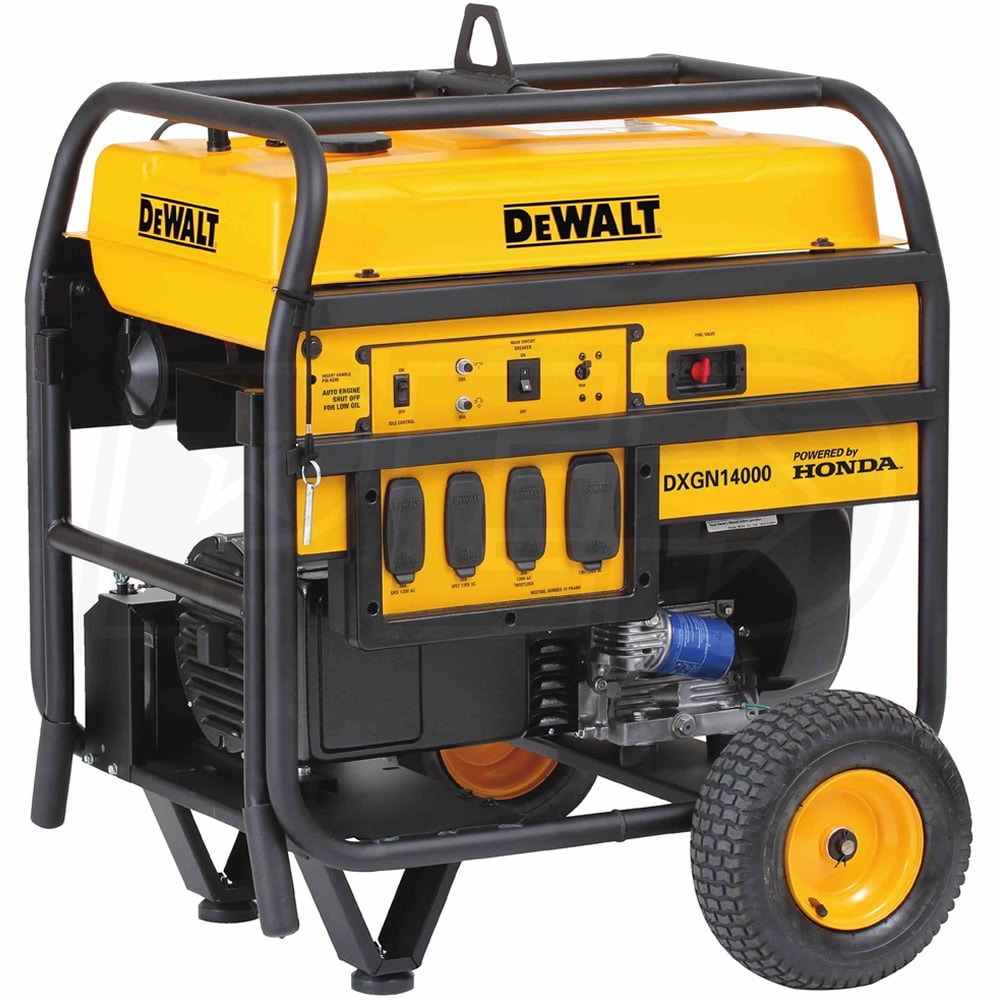

DeWalt DXGN14000 - 11,700 Watt Electric Start Professional Portable Generator w/ Honda GX Engine (CARB)
Model:
PD123MHB008
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
11,700 Rated Watts
Surge Watts
14,000
Starting Watts
Fuel
Gasoline
Engine
Honda GX
- Powered By Honda's GX630 Commercial Grade OHV Engine
- Reliable, incredibly rugged and plenty of power
- Electric Starting System (Battery Included)
- Easily start your generator with the turn of a key
- Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Premium Grade Alternator - Less than 6% THD
- Provides clean power for sensitive equipment
- Idle Control
- Reduces noise and saves fuel on the job site
- 10-Gallon Long Run Metal Fuel Tank w/ Fuel Gauge
- Provides up to to 7.8 hours of run time @ 1/2 load
- Hardened Steel Frame w/ Integrated Lifting Hook & Wheel Kit
- Protects the generator and makes it easy to move
- Hydraulic/Magnetic Circuit Breakers
- Provides superior overload protection
- Hour Meter & Easy To Read Panel w/ Outlet Cover Protection
- Easily monitor run time and track maintenance intervals
- 3-Year Limited Warranty
- Includes 12V DC - 35Ah Battery
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
PD123MHB008
Overview
Assembly Required
Yes
Weight
346 Pounds
Certification
CARB
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
37.5 Inches
Product Width
24.3 Inches
Product Height
31.1 Inches
UPC
801853906422
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
11700 Watts
Surge Watts
14000 Watts
Fuel Type
Gasoline
Rated Amps
49 Amps
Portability Kit
Pneumatic Wheels
Tank Size
10 Gallons
Run Time @ 50% Load
7.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
