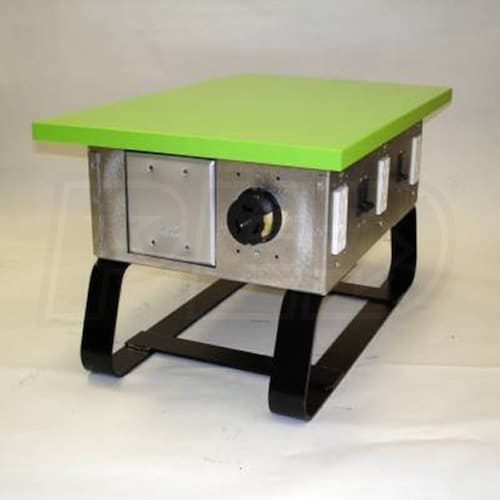

Gen-Tran 50-Amp PowerWeb Distribution Center (Indoor 10 Outlets)

Model:

S5010

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Gen-Tran 50-Amp PowerWeb Distribution Center (Indoor 10 Outlets)
Gen-Tran 50-Amp PowerWeb Distribution Center (Indoor 10 Outlets)
Model: S5010
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

Type

Standard

Amp Rating

50

Load Mgmt.

Voltage

120/240 Single-Phase

Enclosure

  • 50-Amps 10 Outlets PowerWeb™ Temporary Power Distribution Center
  • Indoor reliable way to distribute power from a genertaor
  • Ideal for trade show set up, concessions and special event set up
  • 12500 Watt PowerWeb to Satisfy Large-Sized Contractors
  • Includes (CS6365) 4-wire locking inlet to accommodate 50-Amps
  • Twistlock Outlets are Included for Downstean Feeds
  • Allows multiple 50Amp PowerWeb units to be daisy chained together
  • Includes 10 GFCI-protected NEMA 5-20Amp receptacles
  • GFCIs are mounted in the outlets they protect
  • GFCIs also detect open neutral conditions as well as polarity
  • Rounded Sled Frame with Aluminum Enclosure
  • Easy to maneuver and corrosion-resistant
  • Includes one L6-30Amp receptacle
  • Certifications
  • ETL Listed to UL standard 1640
  • Meets OSHA requirements

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
CS6364/5
S5010
specs product image PID-1907
Overview
Weight
35 Pounds
Consumer Warranty
1 Year
Product Length
22.5 Inches
Product Width
14.5 Inches
Product Height
11 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 5-20R - GFCI
5
NEMA L6-30R
1
CS6364/5 - 50-Amp Twistlock
1
