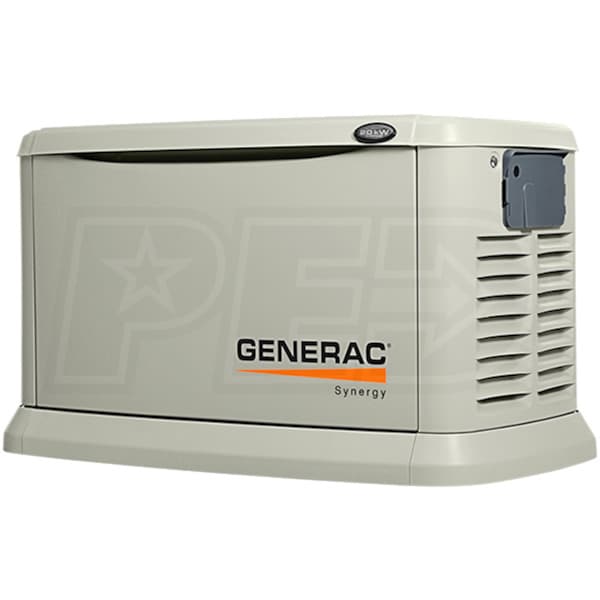

Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.)
Model:
6055-0
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Generac Synergy™ Variable Speed Standby Generator System
- Quiet, tests at only 57 dB(A) & runs at 63 dB(A) @ 23 feet
- G-Flex™ Variable Speed Technology (2700-3600 RPM)
- Varies engine RPMs based on demand; unlike traditional standbys
- Automatic Voltage Regulator (AVR) - Less Than 2.0% THD
- Monitors demand & adjusts engine speed; Save $ & use less fuel
- Ensures 60 Hz output, even at lower speeds for very clean power

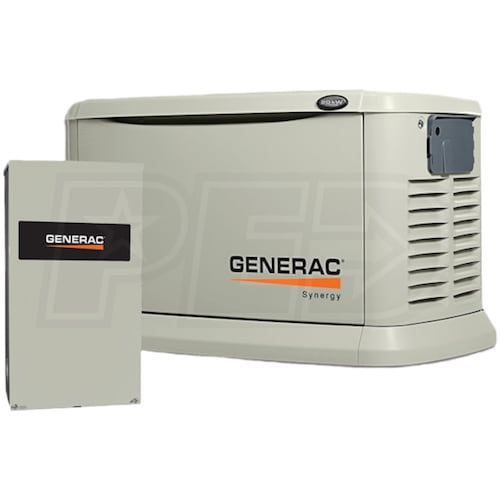

- 200-Amp Generac Synergy™ Smart Switch w/ Power Mgmt. RTSB200A3
- DPM technology allows for the smart control of 2 air conditioners
- Intelligently manage 4 more loads w/ add. PMM Kit/Mods. (Sold Separately)
- Service Entrance Rated w/ NEMA 3R Aluminum Enclosure
- Mounts between meter & main service panel; Load & Line breakers
- Evolution™ Controller w/ 2-Line LCD Display & Illuminated Buttons
- Monitors for service and maintenance intervals
- Aluminum Sound-Attenuated Weather Proof Enclosure
- Exceptional protection from the elements: Rec'd for coastal areas
- Generac OHVI Air-Cooled Engine w/ Full-Pressure Lubrication
- 12" Flexible fuel line & owner's manual included
- Includes Mobile Link™ Cellular Monitoring System
- 5-Year Limited Warranty & 24/7/365 Customer Care
Specifications
6055-0

Overview
Weight
471 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
UPC
696471060553
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
174 ft³/hr
NG Fuel Consumption @ 100% Load
285 ft³/hr
LP Fuel Consumption @ 50% Load
1.64 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Run dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (525 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
90 Amps
