Sorry, this product is no longer available.
Try this product instead

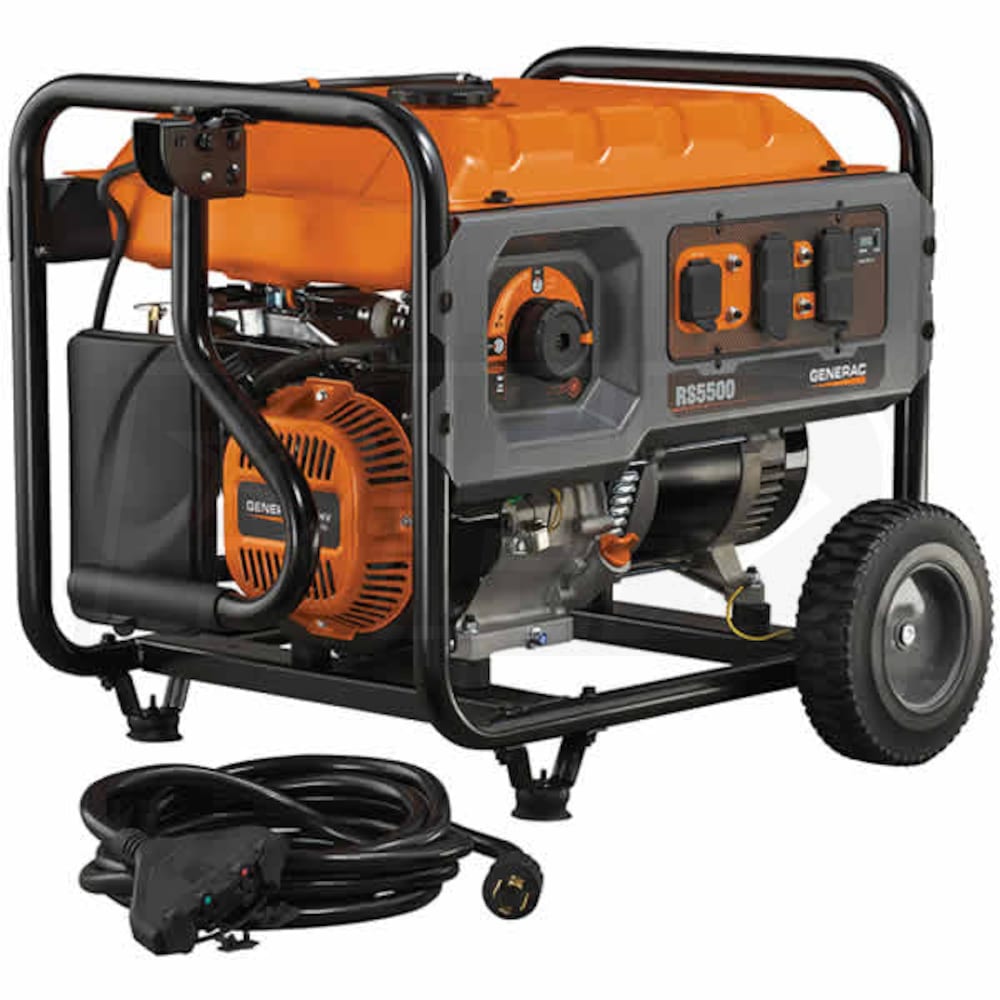

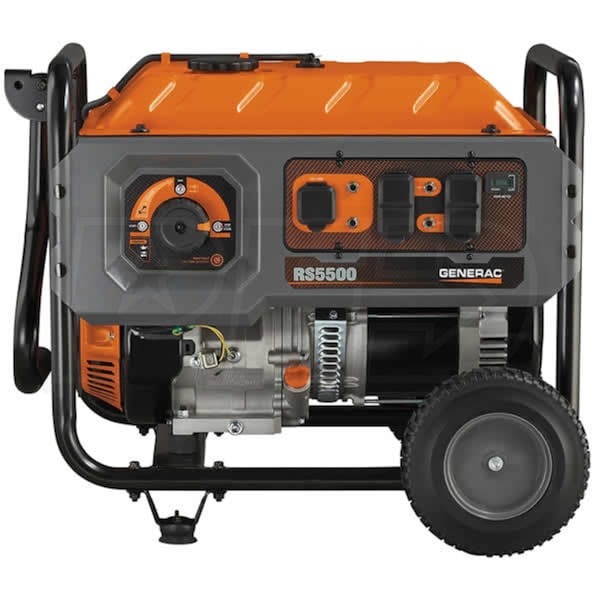

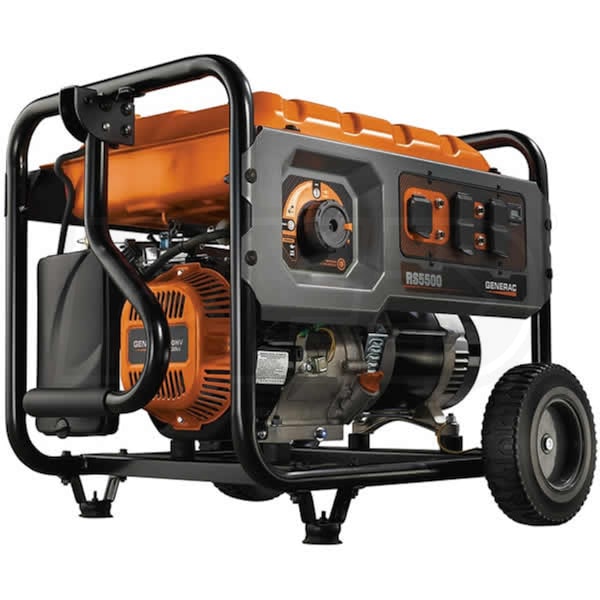

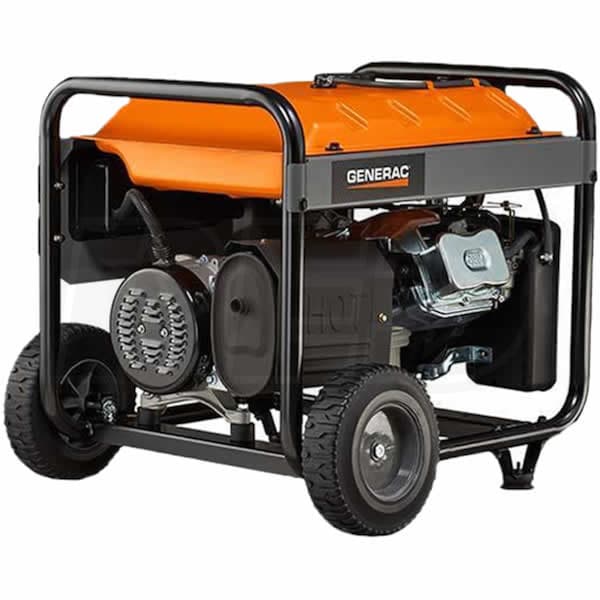

Generac RS5500 - 5500 Watt Rapid Start Portable Generator w/ Convenience Cord
Generac RS5500 - 5500 Watt Rapid Start Portable Generator w/ Convenience Cord
Model: RS5500
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

5,500 Rated Watts

Surge Watts

6,875
Starting Watts

Fuel

Gasoline

Engine

Generac



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Generac Rapid Start Portable Generator w/ Convenience Cord
  • Power your refrigerator, sump pump, lights & more

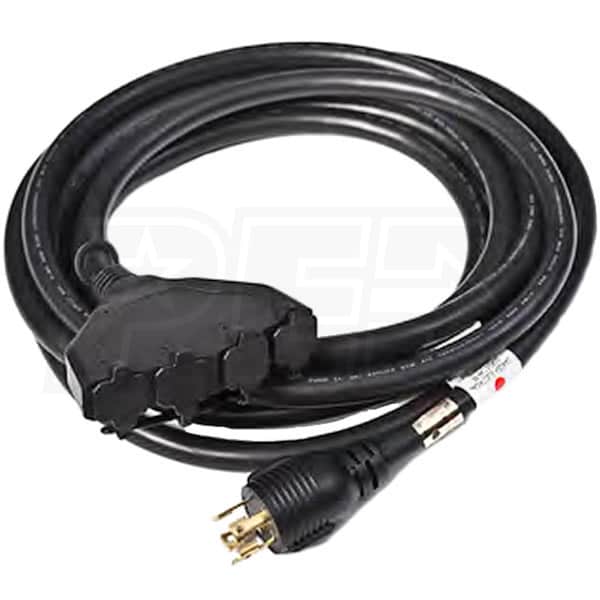

  • 20-Foot 30-Amp (4-Prong) Convenience Cord (Model # 6112)
  • Utilize all your power when not using a transfer switch
  • Split your power from 1 cord into 4 outlets

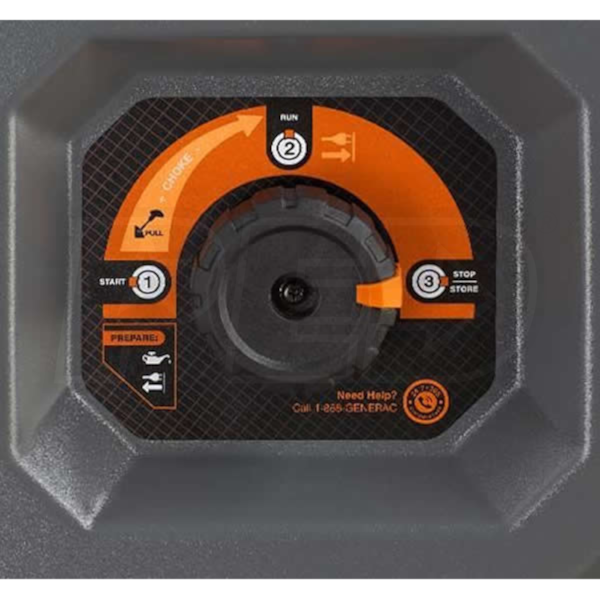

  • PowerDial™ - All Controls, One Dial
  • Streamlines the start-up process; no separate run, fuel or choke
  • Eliminates the search for separate controls in an emergency
  • 389cc Generac OHV Air-Cooled Engine w/ Low Oil Shutdown
  • Splash lubrication provides longer engine life
  • Automatically safeguards engine from damage
  • 6.7-Gallon Extended Run Fuel Tank w/ Built-In Fuel Gauge
  • Allows for up to 11 hours of run time @ 1/2 load
  • 9.5" Never-Flat Wheels & Fold Down, Locking Handle
  • Makes transporting and storage almost as easy as starting it
  • 1-1/4" Hardened Steel Tube Cradle & Covered Outlets
  • Provides added protection from the elements & while stored
  • Hour Meter
  • Easily monitor run time for accurate service/maintenace
  • 2-Year Limited Warranty - UL Listed - Non-CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
RS5500
specs product image PID-17680
Overview
Weight
171 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
UPC
696471066722
Additional Model Numbers

6672, RS5500

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6875 Watts
Fuel Type
Gasoline
Rated Amps
23 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.7 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
