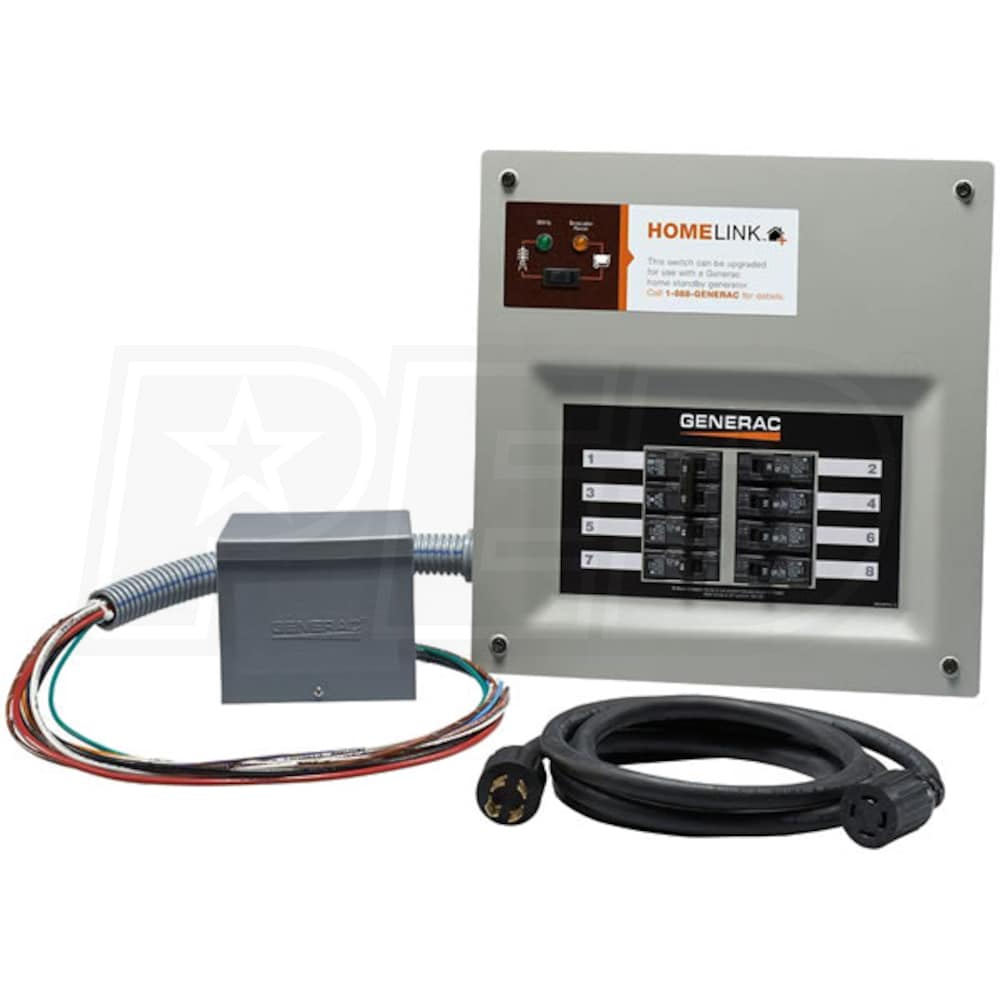

Generac 6853 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System
Model:
6853
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Generac 30A HomeLink
- Meets your needs today & when you're ready to upgrade
- Pre-Wired 30-Amp Manual Transfer Switch
- Interchangeable breakers make it easy to reconfigure or expand
- Also Includes
- (1) 10' 30-Amp (L14-30) Power Cord
- (1) 30-Amp (L14-30) Non-Metallic Power Inlet Box (must be hardwired)
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
- From Manual to Automatic - Essential Circuit Coverage
- From a portable to a standby generator (11kW Max)
- Ready When You Are (By Cert Electrician)
- Field-upgradable to an automatic switch panel & new faceplate
- Includes 8 Total Circuits (Expands up to 10)
- (1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, & (5) 15-Amp 1-Pole
- Versatile Design & Flexible & Cost Effective Installation
- Can be used w/ GFCI and Non-GFCI portable generators
- Uses 1" standard, tandem, GFCI & AFCI breakers
- *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
6853
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
27.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471068535
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
