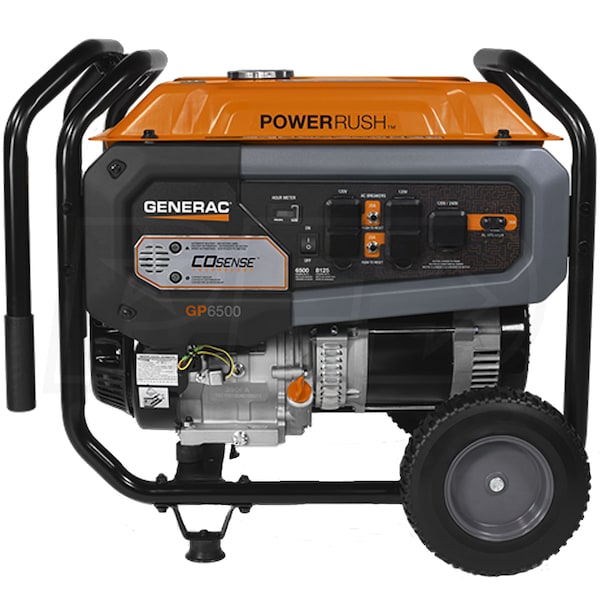

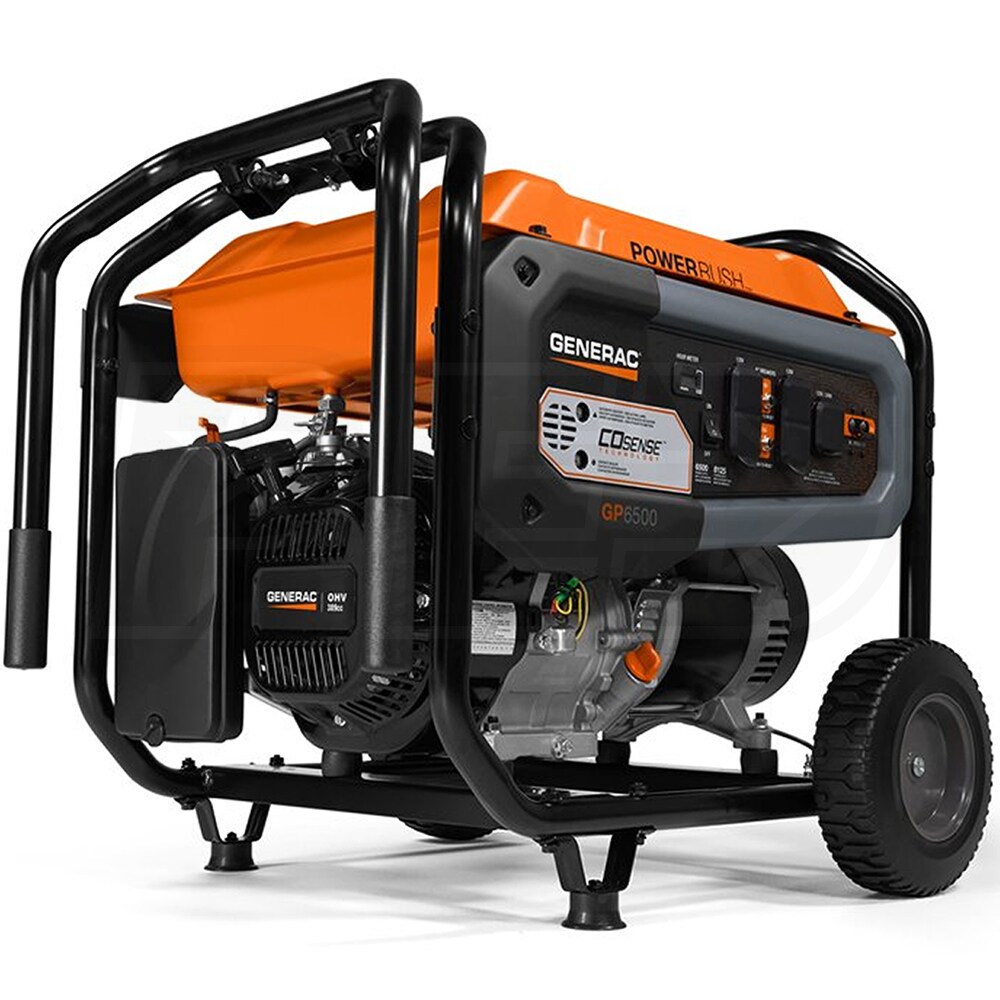

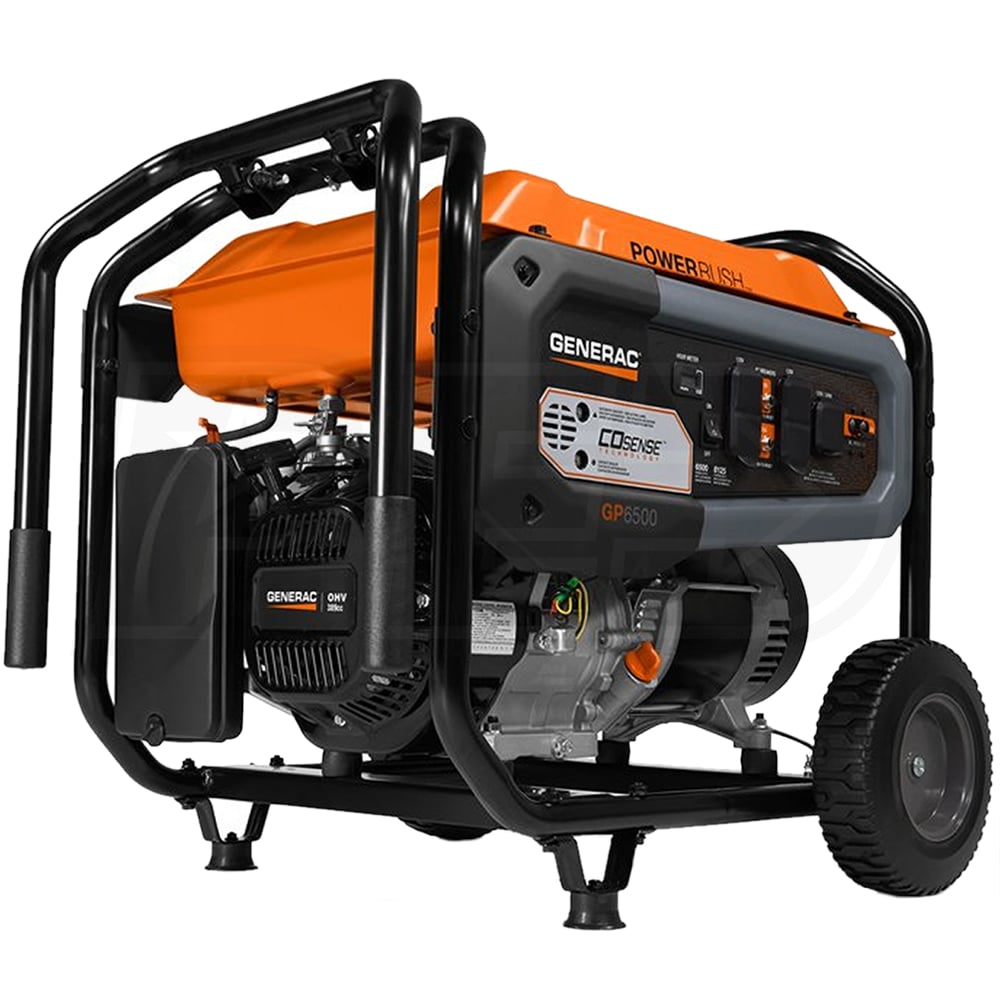

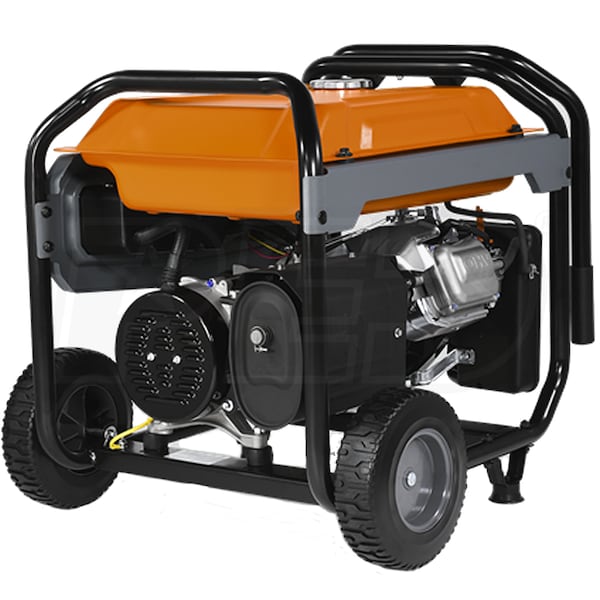

Generac GP6500 - 6500 Watt Portable Generator w/ CO-SENSE™ (CARB)

Model:

7683

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac GP6500 - 6500 Watt Portable Generator w/ CO-SENSE™  (CARB)
Generac GP6500 - 6500 Watt Portable Generator w/ CO-SENSE™ (CARB)
Model: 7683
Was $949.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

6,500 Rated Watts

Surge Watts

8,125
Starting Watts

Fuel

Gasoline

Engine

Generac



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Generac GP6500 Portable Emergency Generator
  • EPA / CARB Compliant
  • Great for power small tools and essentials around the house
  • CO-SENSE™ Technology - STOPS, ALERTS, SAVES
  • Protects against harmful carbon monoxide
  • PowerRush™ Technology*
  • Provides 40% + motor starting capacity
  • 389cc Generac® 4-Stroke OHV Engine w/ Low Oil Shutdown
  • Designed for long life with safeguards in-place for peace of mind
  • 6.9-Gallon Fuel Tank w/ Fuel Gauge
  • Up to 10.5 hours of runtime @ 50% load
  • 30-Amp 120/240V (L14-30) Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Built-In Hour Meter
  • Makes it easy to track run-time & maintenance intervals
  • Hardened Steel-Tube Cradle
  • Protects the generator during transportation & operation
  • Heavy-Duty, Never-Flat Wheels
  • Makes this generator easy to move over uneven terrain
  • Fold-Down Handle
  • Allows for easy, compact storage
  • *NOTE - Increases electrical current upon demand; above rated output
  • 3-Year Limited Residential & 1-Year Limited Commercial Warranty
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
7683
specs product image PID-99342
Overview
Assembly Required
Yes
Weight
190 Pounds
CARB Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
28.3 Inches
Product Width
21.7 Inches
Product Height
28.1 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Surge Watts
8125 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.9 Gallons
Run Time @ 50% Load
10.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Grade Type
Emergency
Low THD
No
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
