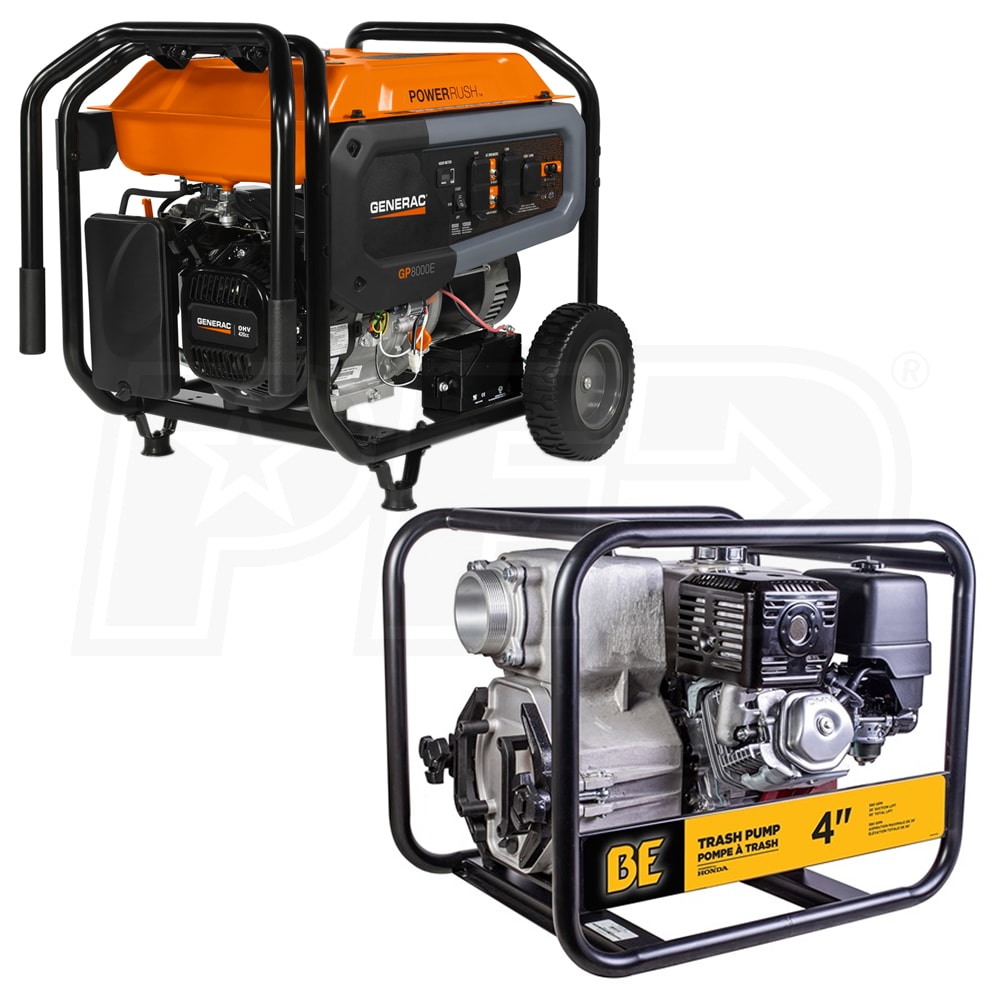

Generac 8000 Watt Electric Start Portable Generator (49-State) & BE 580 GPM (4") Trash Pump w/ Honda GX Engine
Model:
7686-TP-4013HM-KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
8,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Gasoline
Engine
Generac
- Portable Electric Start Emergency Generator & 4" Trash Pump Package
- Generac® GP8000E Electric Start Portable Emergency Generator
- Energizes mission-critical appliances - except central A/C
- PowerRush™ Advanced Technology*
- Provides 30% + motor starting capacity
- Electric Start w/ Recoil Backup
- Start the generator with the press of a button (Battery Included)
- Plug-in battery charger jack keeps battery charged and ready
- 420cc Generac® 4-Stroke OHV Engine w/ Low Oil Shutoff
- Designed for long life with safeguards in-place for peace of mind
- 7.9-Gallon Fuel Tank w/ Fuel Gauge
- Up to 11 hours of runtime @ 50% load
- 30-Amp 120/240V (L14-30) Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- Built-In Hour Meter & 1-1/4" Hardened Steel-Tube Cradle
- Makes it easy to track run-time & maintenance intervals
- Protects the generator during transportation & operation
- Heavy-Duty, Never-Flat Wheels & Fold-Down Handle
- Makes this generator easy to move over uneven terrain
- Allows for easy, compact storage
- *NOTE - Increases electrical current upon demand; above rated output
- 3-Year Limited Residential & 1-Year Limited Commercial Warranty
- Non-CARB Compliant - Not For Sale In CA
- ***Note - Allows You To Get Maximum Power From Generator

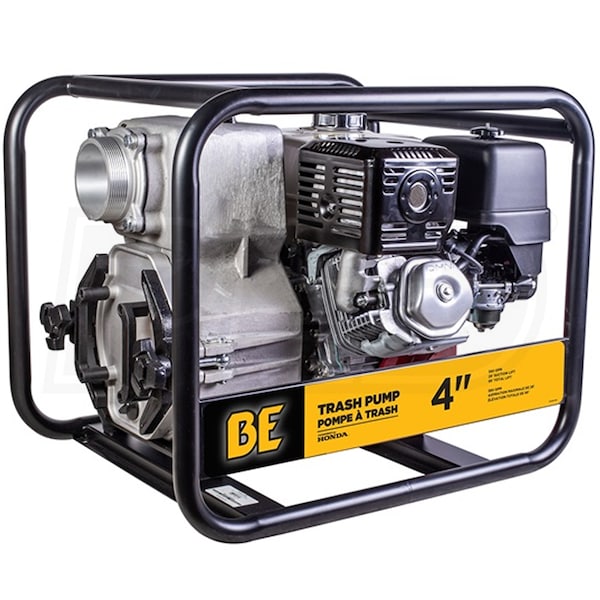

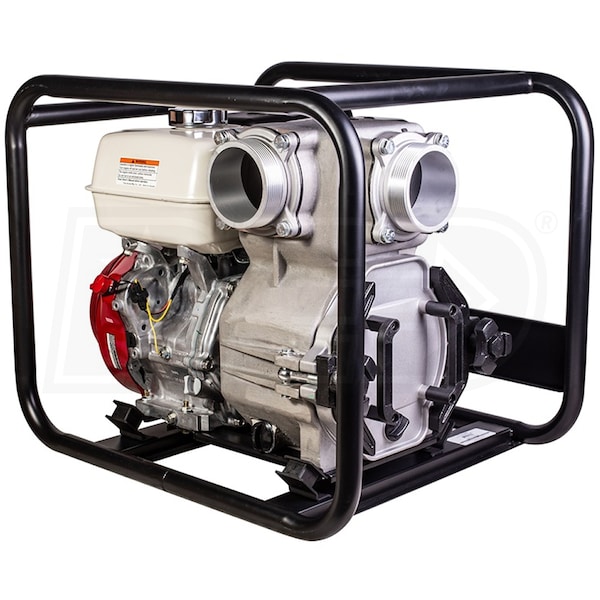

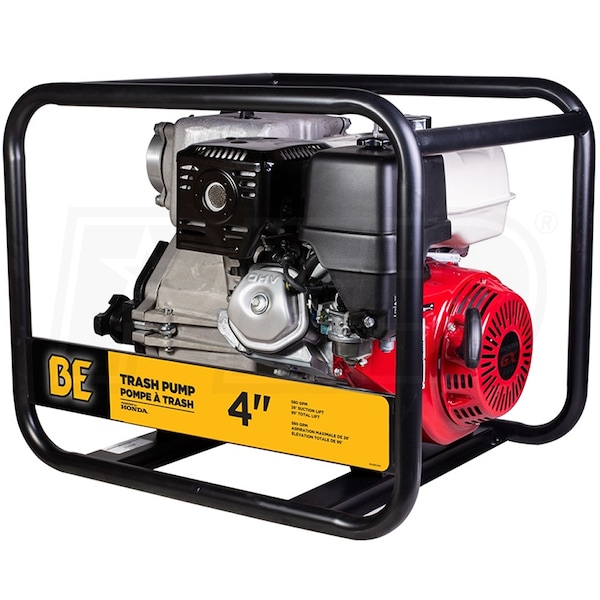

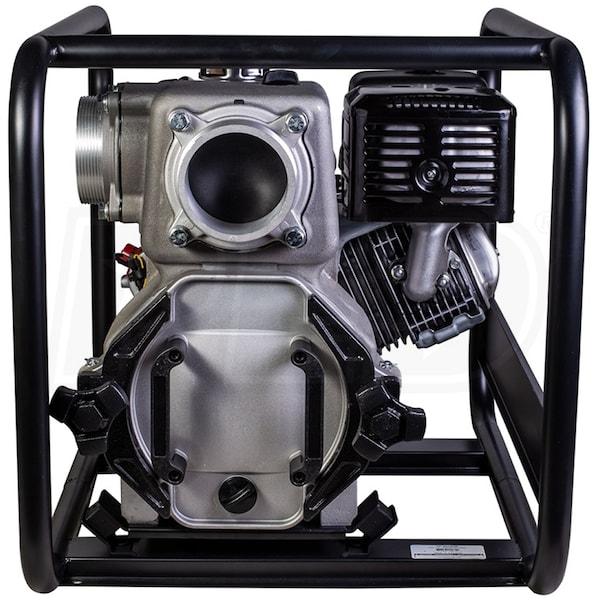

- BE 4" Centrifugal Trash Pump
- Handles up to 1" solids
- Commercial-Grade 389cc Honda GX Series 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Aluminum Pump Housing & Cast Iron Impeller
- Extends the life of the pump
- Self-Priming Design (*Requires Initial Priming)
- Priming-plug allows for quick fill-up of pump chamber for quick starting
- 1.8-Gallon Fuel Tank
- Allows for plenty of run-time to get the job done
- Engine and Pump Vibration Isolators
- Rubber feet minimize vibration for quieter operation, less walking
- Includes:
- Strainer & Clamps
- Excellent Consumer Warranty
- 1-Year Pump and 3-Year Honda GX Engine
- EPA Approved & CARB Compliant
- (1) BE TP-4013HM - 580 GPM (4") Trash Pump w/ Honda GX Engine (TP-4013HM)
- (1) Generac GP8000E - 8000 Watt Electric Start Portable Generator (49-State) (7686)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) BE TP-4013HM - 580 GPM (4") Trash Pump w/ Honda GX Engine (TP-4013HM)
- (1) Generac GP8000E - 8000 Watt Electric Start Portable Generator (49-State) (7686)
7686-TP-4013HM-KIT
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
8000 Watts
Combined Kit Watts
1000 Watts
Fuel Type
Gasoline
Grade Type
Emergency
Engine
Engine Brand
Generac
TP-4013HM
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
580 Gallons
Inlet Diameter
4 Inch
Outlet Diameter
4 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1 inch
Handles Solids
Yes
Suction Head
26 Feet
Maximum PSI
38

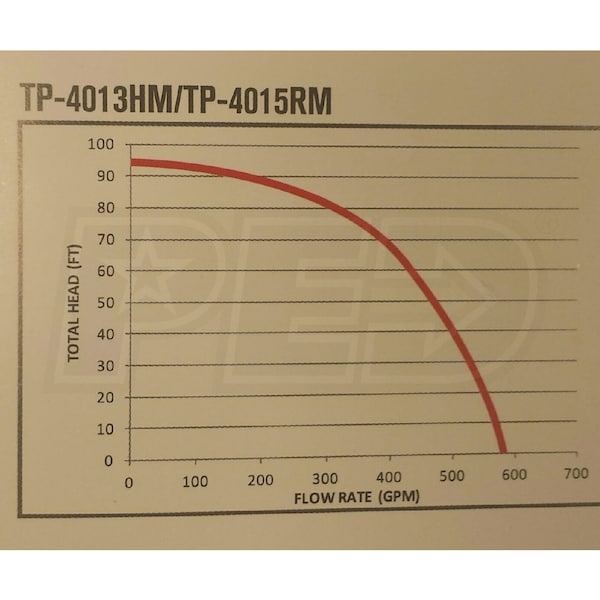

Total Head Lift
95 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
CC
389 cc
Fuel Tank Size
1.8 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
152 Pounds
CARB Compliant
No
Made in USA
No
Consumer Warranty
1 Year
Product Length
27 Inches
Product Width
20 Inches
Product Height
22 Inches
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
Yes
Transport Handle
No
Wheel Kit
No
GP8000E
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
198 Pounds
CARB Compliant
No
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
28.8 Inches
Product Width
21.7 Inches
Product Height
26.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.9 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Low THD
No
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
