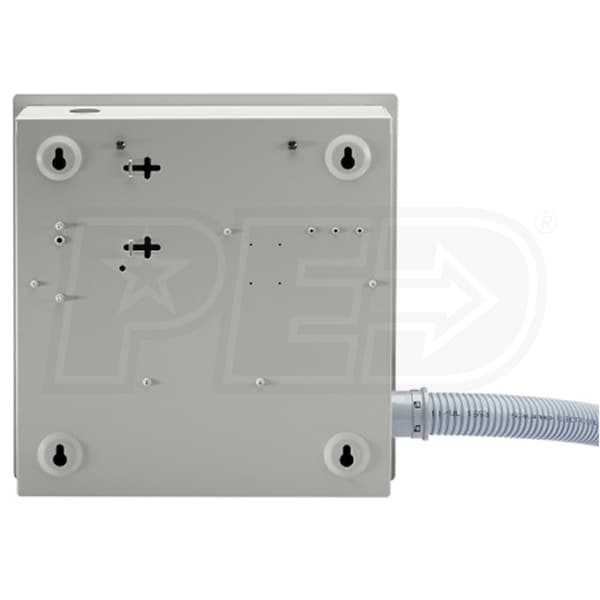

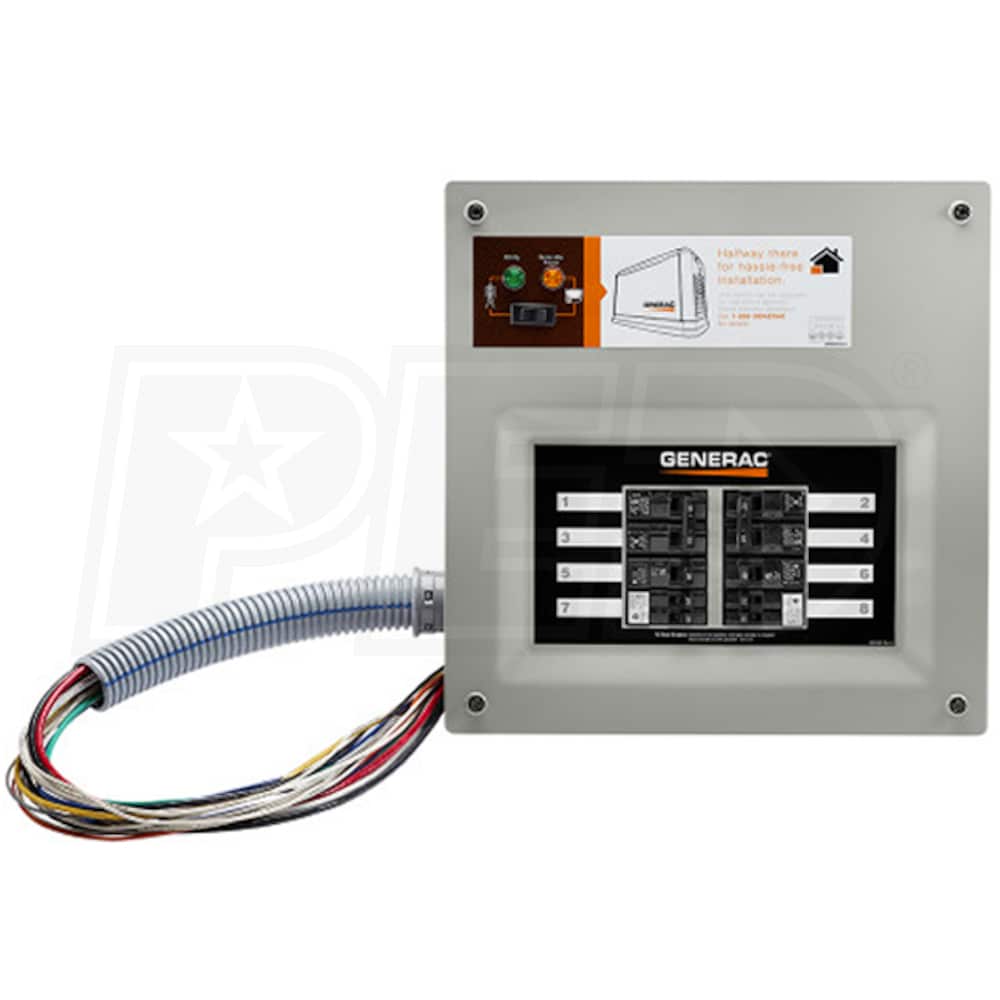

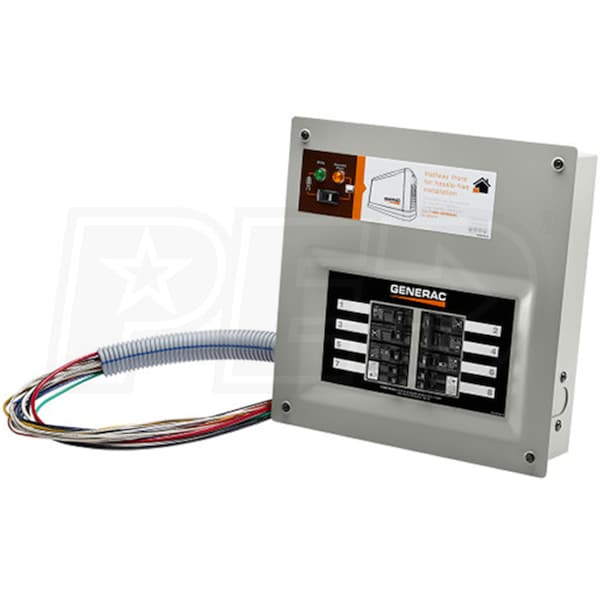

Generac 9854 - 50-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch (10-16 Circuits)
Model:
9854
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Manual
Amp Rating
50
Circuits
10
Voltage
120/240 Single-Phase
Enclosure
NEMA 1R
- Generac 50A HomeLink™ Upgradeable Manual Transfer Switch
- Meets your needs today & when you're ready to upgrade
- Pre-Wired 50-Amp Manual Transfer Switch
- Interchangeable breakers make it easy to reconfigure or expand
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
- From Manual to Automatic - Essential Circuit Coverage
- From a portable to a standby generator (11kW Max)
- Ready When You Are (By Cert Electrician)
- Field-upgradable to an automatic switch panel & new faceplate
- Includes 10 Total Circuits (Expands up to 16)
- (1) 30-Amp 2-Pole & (1) 20-Amp 2-Pole
- (2) 20-Amp 1-Pole & (2) 20-Amp 1-Pole Tandem
- Power Indicator Lights
- Easily see if you're on utility or generator power
- Versatile Design & Flexible & Cost Effective Installation
- Can be used w/ GFCI and Non-GFCI portable generators
- Uses 1" standard, tandem, GFCI & AFCI breakers
- Requires Power Inlet Box & Cord For Connection (Sold Separately)
- Allows you to plug your generator into an exterior wall outlet
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
9854
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
27.2 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471071481
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
20A 120V
4
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
