Generac 9855 - 50-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (Alum.)
Model:
9855
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
6
$76.50
In-Stock
$229.99
Only 3 In-Stock
Model: 08732-0800
$6.50
In-Stock
Model: THP103
$44.99
Only 5 In-Stock
Model: THP207M
$24.99
$40.99
Only 2 In-Stock
Features

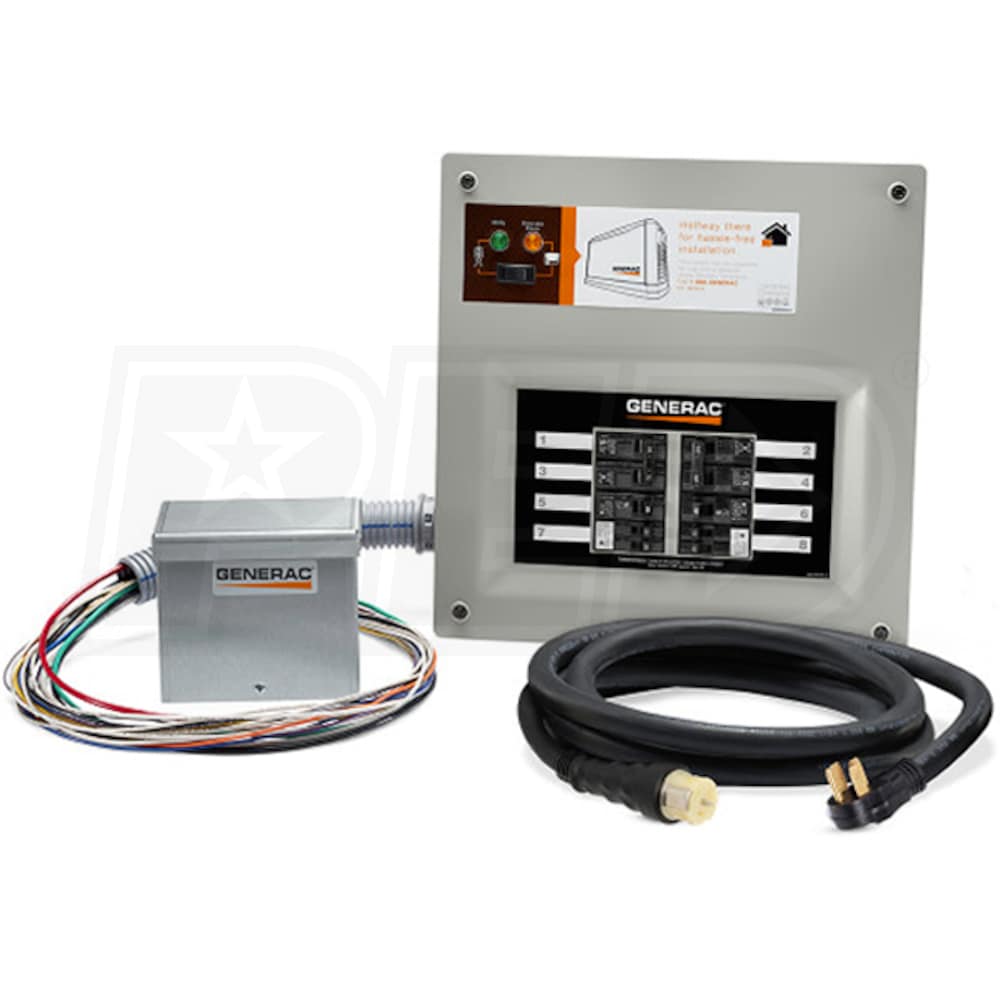

- Generac 50-A HomeLink™ Upgradeable Manual Transfer Switch
- Meets your needs today & when you're ready to upgrade
- Pre-Wired 50-Amp Manual Transfer Switch
- Interchangeable breakers make it easy to reconfigure or expand
- Also Includes
- (1) 10' 50-Amp (CS6364) & NEMA 14-50P Power Cord
- (1) 50-Amp (CS6364) Aluminum Power Inlet Box (must be hardwired)
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
- From Manual to Automatic - Essential Circuit Coverage
- From a portable to a standby generator (11kW Max)
- Ready When You Are (By Cert Electrician)
- Field-upgradable to an automatic switch panel & new faceplate
- Includes 10 Total Circuits (Expands up to 16)
- (1) 30-Amp 2-Pole & (1) 20-Amp 2-Pole
- (2) 20-Amp 1-Pole & (2) 20-Amp 1-Pole Tandem
- Versatile Design & Flexible & Cost Effective Installation
- Can be used w/ GFCI and Non-GFCI portable generators
- Uses 1" standard, tandem, GFCI & AFCI breakers
- *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types

9855

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
33 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471071498
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
20A 120V
4
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Plug Type
14-50R
Reviews
(4)
Generac 9855 Reviews & Ratings

Transfer Switch
By Edwin P.
Hyattsville, Maryland
Purchased 02/14/2022 |
Review Posted 03/08/2022
Yes
Edwin P. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!

Rating Breakdown
4/5
5/5
4/5
4/5
Pros:
Easy To Use
Cons:
The flex conduit are to Stiff

Owner
By Geoffrey S.
EAST NORWICH, New York
Purchased 09/24/2020 |
Review Posted 01/10/2021
Great.
Geoffrey S. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!

Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use

Good Product
By Amaury P.
Fort Myers, Florida
Purchased 06/22/2020 |
Review Posted 07/13/2020
Great product.
Amaury P. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the rating, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).

Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, Fast, High Quality

Definitely A Heavy Duty Generator.
By Jesus F.
Miami, Florida
Purchased 06/02/2020 |
Review Posted 07/03/2020
Generator arrived fast. The assembly was fast although it’s a heavy beast! Don’t take it off the pallet for easier assembly. I have a large house with 2 a/c units. Runs 3ton a/c unit and about 3/4 of the rest of the house. Enough Emergency power for a hurricane aftermath here in South Florida. Had the transfer box installed and powered up the generator. It’s a true workhorse. Hope I don’t need it but if I do I’m ready.
Jesus F. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the rating, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).

Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, High Quality, Id Buy It Again
Cons:
You need to have gasoline stored
