Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) w/ GenTent® Stormbracer® Rain/Wet Weather Safety Canopy

Model:

EGD-5735-GTKIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) w/ GenTent® Stormbracer® Rain/Wet Weather Safety Canopy
Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) w/ GenTent® Stormbracer® Rain/Wet Weather Safety Canopy
Model: EGD-5735-GTKIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

17,500 Rated Watts

Surge Watts

26,250
Starting Watts

Fuel

Gasoline

Engine

Generac



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

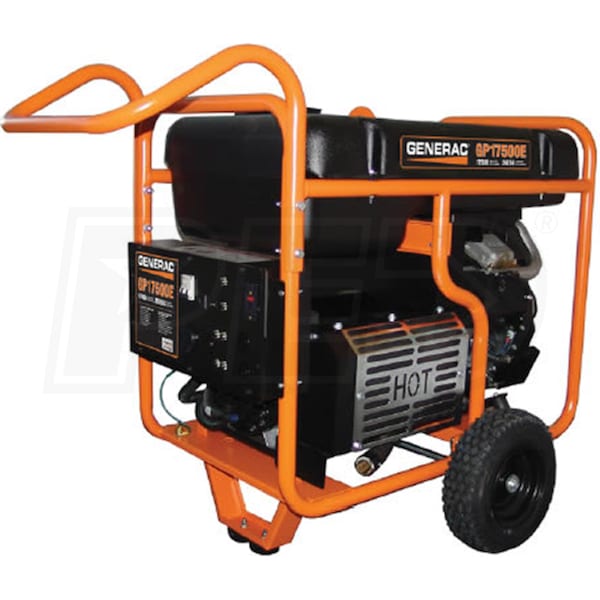

  • Generac GP Series 17500E Portable Generator
  • Ideal for job site or home backup power
  • Electric Start (12VDC 365-CCA Battery Included)
  • Simple, push-button design for easy starting
  • Easily charge the battery during use via 12-Volt outlet on panel
  • 992cc Generac OHVI® Engine
  • Designed specifically for generators
  • Provides longer life and longer maintenance intervals
  • Full Pressure Lubrication w/ Low Oil Shutdown
  • Automotive style spin-on oil filter
  • Prevents engine damage during a low-oil event
  • 16-Gallon Fuel Tank w/ Built-In Fuel Gauge
  • Allows for up to 10 hours of run time @ 50% load
  • Fuel-shut off switch helps prevent stale fuel in carb
  • Automatic Idle Control
  • Reduces noise, increase fuel efficiency and extends life
  • Panel Mounted Hour Meter
  • Makes it easy to track run time and maintenance intervals

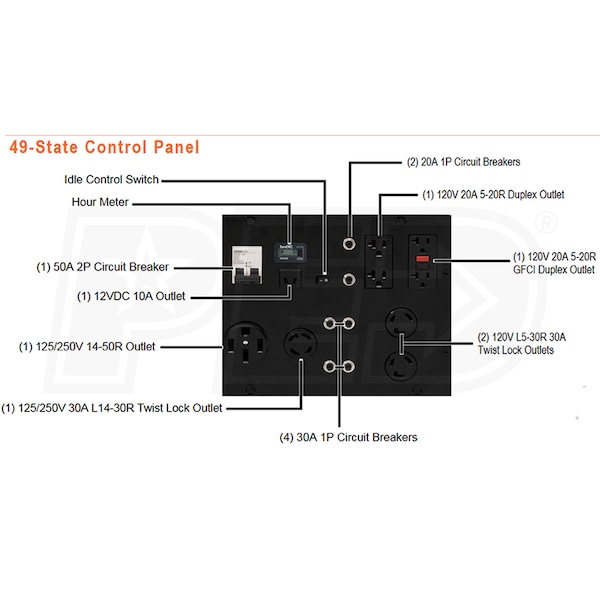

  • 120/240V 30-Amp (L14-30R) & 50-Amp (14-50R) Receptacles
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Portability Kit
  • 12" Pneumatic wheels and integrated lifting eye
  • 2-Year Residential & 1-Year Commercial Limited Warranty
  • Non-CARB Compliant - Not For Sale In CA
  • ***Note - Allows You To Get Maximum Power From Generator
  • Product Includes
    • (1) Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) (5735)

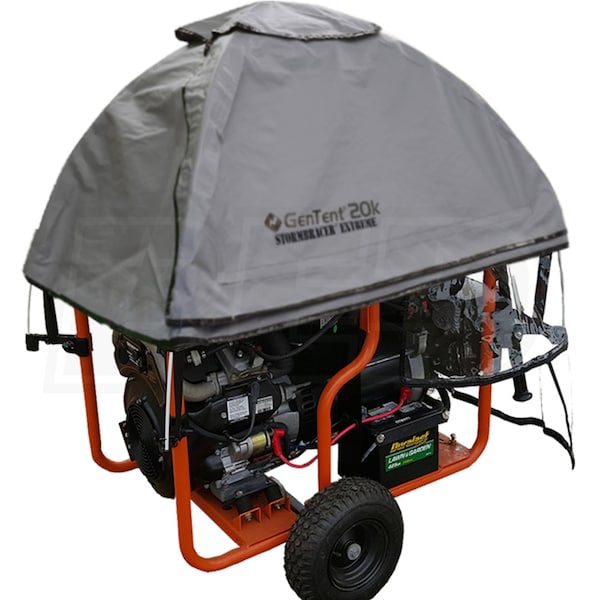

    • (1) GenTent® 20k Stormbracer® Extreme Rain/Wet Weather Safety Canopy For Portable Generators (10kW+ w/ Square / Round Tube Frame) (Grey) (GT20KB4UGB)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
12-Amp DC
NEMA 5-20R (Wall-Type)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Product Includes
  • (1) Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) (5735)
  • (1) GenTent® 20k Stormbracer® Extreme Rain/Wet Weather Safety Canopy For Portable Generators (10kW+ w/ Square / Round Tube Frame) (Grey) (GT20KB4UGB)
EGD-5735-GTKIT
specs product image PID-92957
Overview
Assembly Required
Yes
Weight
400 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
48.5 Inches
Product Width
31 Inches
Product Height
39.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
17500 Watts
Surge Watts
26250 Watts
Fuel Type
Gasoline
Rated Amps
73 Amps
Portability Kit
Pneumatic Wheels
Tank Size
16 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start
CC
992 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
GP17500E
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
400 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
48.5 Inches
Product Width
31 Inches
Product Height
39.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
17500 Watts
Surge Watts
26250 Watts
Fuel Type
Gasoline
Rated Amps
73 Amps
Portability Kit
Pneumatic Wheels
Tank Size
16 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Grade Type
Emergency
Low THD
No
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start
CC
992 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
GT20KB4UGB
Overview
Weight
8 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Specs
Frequency
60 Hertz
Tent Size
X-Large
