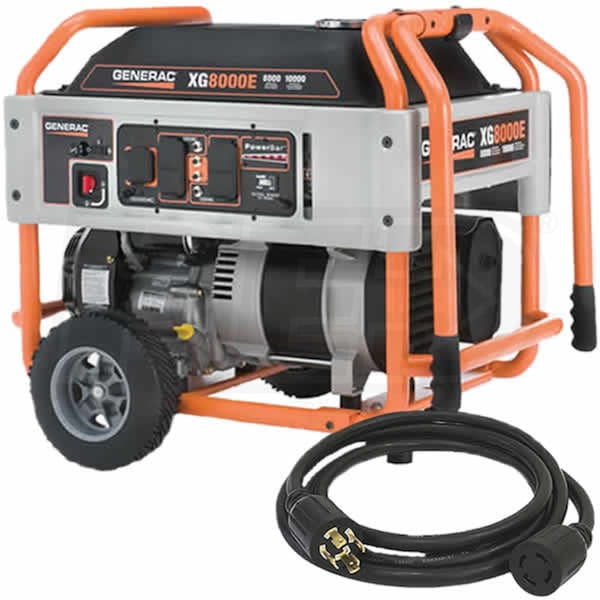

Generac XG8000E 8000 Watt Electric Start Portable Generator with 30 Amp Power Cord (40ft)
Model:
EGD-5747CORDKIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Semi-Pro
Style
Portable
Run Watts
8,000 Rated Watts
Surge Watts
10,000
Starting Watts
Fuel
Gasoline
Engine
Generac OHVI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- *Bonus* 30-Amp (4-Prong 40-Foot) Generator Power Cord
- Connect a generator and transfer switch with a single cord
- Generac OHVI Engine
- Provides premium quality power
- Engineered for high performance
- Full Pressure Oil Lubrication System
- Oversized Full-Wrap Frame Tubing & Impact Resistant Corners
- Durable construction which minimizes damage from rough handling
- Illuminated Control Panel
- Brightens up controls for better visibility
- Power Bar
- Keeps an eye on your wattage output for improved performance
- Covered Outlets
- Protects your connection from the environment
- Start/Stop Fuel Shut-Off & Choke Controls
- Easy to reach on the control panel for better control
- Low-Oil Shut Down & Hour Meter
- Protects engine from damage & tracks usage for maintenance
- External Battery Charge Jack (Includes Charger)
- Plug in your generator when not in use to keep battery charged
- (1) Generac XG8000E - 8000 Watt Electric Start Portable Generator (5747)
- (1) Gen-Tran 30-Amp (4-Prong 40-Foot) Generator Power Cord (RJB10440)
Product Includes
Specifications
Plug Types
Product Includes
- (1) Generac XG8000E - 8000 Watt Electric Start Portable Generator (5747)
- (1) Gen-Tran 30-Amp (4-Prong 40-Foot) Generator Power Cord (RJB10440)
EGD-5747CORDKIT
Overview
Assembly Required
Yes
Weight
250 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
25.5 Inches
Product Height
28 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
9 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start w/ Recoil
CC
410 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
XG8000E
Overview
Assembly Required
Yes
Weight
250 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
25.5 Inches
Product Height
28 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
9 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start w/ Recoil
CC
410 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
RJB10440
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-30R
1
Cord
Cord Length
40 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
