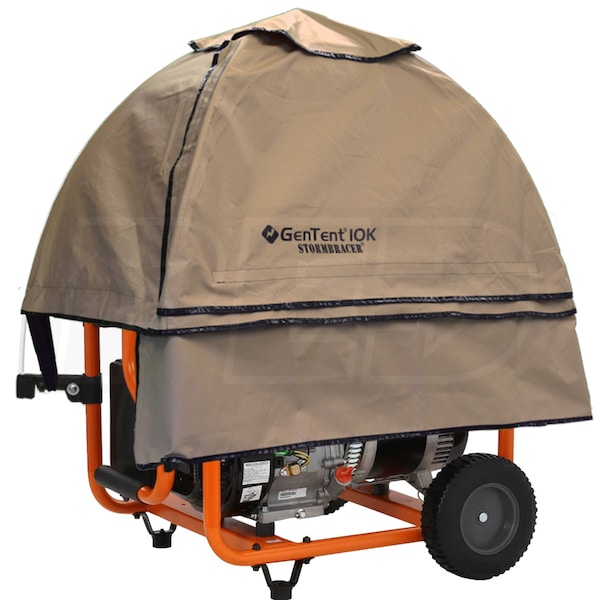

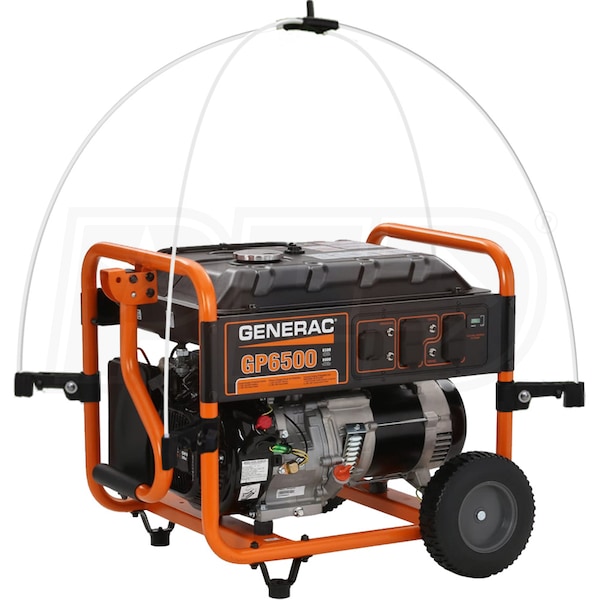

Generac 5940 GP6500 - 6500 Watt Portable Generator w/ GenTent® Stormbracer® Rain/Wet Weather Safety Canopy

Model:

EGD-5940-GTKIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac 5940 GP6500 - 6500 Watt Portable Generator w/ GenTent® Stormbracer® Rain/Wet Weather Safety Canopy
Generac 5940 GP6500 - 6500 Watt Portable Generator w/ GenTent® Stormbracer® Rain/Wet Weather Safety Canopy
Model: EGD-5940-GTKIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

6,500 Rated Watts

Surge Watts

8,000
Starting Watts

Fuel

Gasoline

Engine

Generac

  • Emergency Generator
  • Generates plenty of electricity to weather the storm
  • Powers refrigerator, sump pump, furnace fan, lights and more
  • Generac OHV Engine
  • High-quality engine with automatic low oil shutdown
  • 30A 120/240V (L14-30R) Twist-Lock Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Covered Outlets
  • Provides added safety and extends the life of the generator
  • Hour Meter
  • Built-in resets remind you of scheduled maintenance
  • Steel Fuel Tank and Gauge
  • Generates power up to 9 hours at half load
  • Mobility Kit
  • Never-flat tires and locking fold-down handles
  • ***Note - Allows You To Get Maximum Power From Generator
  • Product Includes

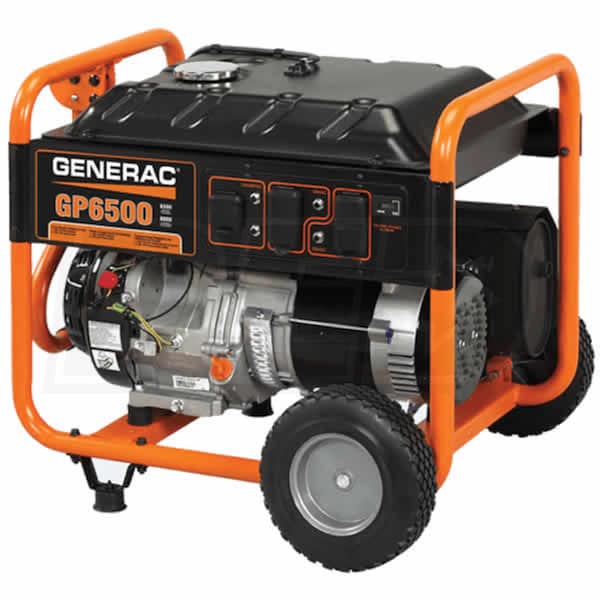

    • (1) Generac 5940 GP6500 - 6500 Watt Portable Generator (5940)
    • (1) GenTent® Direct Connect (Tan) (GT10KB00TB)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Product Includes
  • (1) Generac 5940 GP6500 - 6500 Watt Portable Generator (5940)
  • (1) GenTent® Direct Connect (Tan) (GT10KB00TB)
EGD-5940-GTKIT
specs product image PID-92956
Overview
Assembly Required
Yes
Weight
184 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Surge Watts
8000 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Assembly Required
Yes
Weight
184 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Surge Watts
8000 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
GTOPFDCSTN
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
6 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Specs
Frequency
60 Hertz
Rated Watts
10000 Watts
Maximum Wattage
10000 Watts
Tent Size
Large
