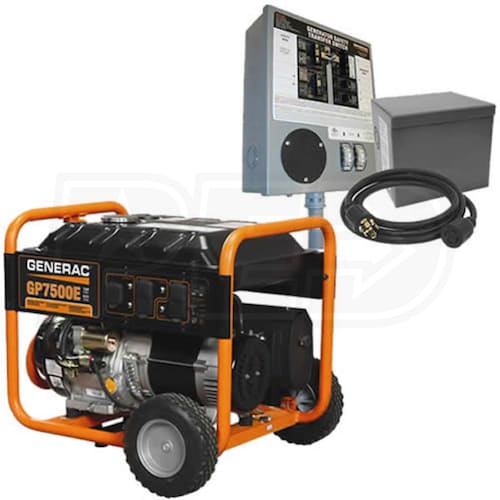

Generac GP7500E - 7500 Watt Electric Start Portable Generator w/ Power Transfer Kit
Model:
EGD-5943KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
7,500 Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Gasoline
Engine
Generac
- Emergency Power Bundle (Generator & Power Transfer Kit)
- Provide emergency power to your panel when you need it most
- 7500 Watt Electric Start Portable Generator (Battery Included)
- Start the generator with the press of a button w/ recoil backup
- Generac OHV Engine w/ Low Oil Shutdown
- Prevents engine damage and provides longer engine life
- 8-Gallon Steel Fuel Tank w/ Fuel Gauge
- Provides up to 12 hours of power at 1/2 load
- Heavy-Duty Cradle & Mobility Kit
- Protects the generator and makes it easy to move
- Pre-Wired 30-Amp Manual Transfer Kit For 6-10 Circuits (6294)
- Interchangeable breakers make it easy to reconfigure or expand
- Power Transfer Kit Includes:
- 30-Amp Manual Transfer Switch
- 30-Amp Non-Metallic Power Inlet Box (Must Be Hardwired)
- 10' 30-Amp (L14-30) Power Cord
- Wiring Harness & Connectors, Conduit and Fittings
- Installation Manual
- PLEASE NOTE - Requires 2-Pole 60-Amp Breaker in Main Load Center
- 2 Year Warranty (Generator) & 1 Year Warranty (Transfer Switch)

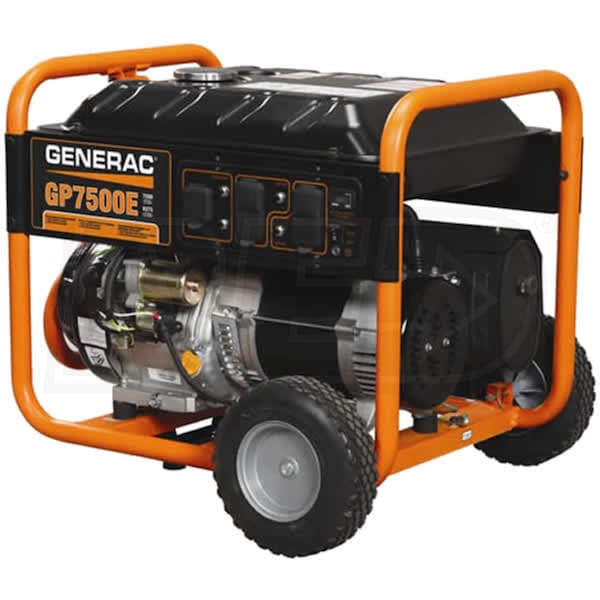

- (1) Generac 5943 - GP7500E 7500 Watt Electric Start Portable Generator (5943)
- (1) Generac 30-Amp Power Transfer Switch System (6-10 Circuits) (6294)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
Product Includes
- (1) Generac 5943 - GP7500E 7500 Watt Electric Start Portable Generator (5943)
- (1) Generac 30-Amp Power Transfer Switch System (6-10 Circuits) (6294)
EGD-5943KIT
Overview
Assembly Required
Yes
Weight
220 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Never Flat Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Transfer Switch
Manual (Included)
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
GP7500E
Overview
Assembly Required
Yes
Weight
201 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Never Flat Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
6294
Overview
Weight
19 Pounds
Consumer Warranty
1 Year
Product Length
9.25 Inches
Product Width
11.125 Inches
Product Height
3.375 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Neutral Type
Floating
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
