Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) (Scratch & Dent)

Model:

7040-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) (Scratch & Dent)
Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) (Scratch & Dent)
Model: 7040-SD
Was $5,097.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI

  • ***Scratch & Dent*** - Cosmetic Damage - Small Dents/Scratches on Back & Top Panels
  • 12" Flexible fuel line, Direct-To-Dirt composite mounting pad & Built-in Battery Charger (Battery Sold Separately)
  • Additonal Features:
  • 20kW (LPG) / 18kW (NG) Generac Synergy™ Variable Speed Standby Generator System
  • Quiet, tests at only 57 dB(A) & runs at 63 dB(A) @ 23 feet
  • 5-Year Limited Warranty
  • Plus 24/7•365 Customer Support so you have you questions answers when its convient for you
  • G-Flex™ Variable Speed Technology (2700-3600 RPM)
  • Varies engine RPMs based on demand; unlike traditional standbys
  • Automatic Voltage Regulator (AVR) - Less Than 1.5% THD
  • Monitors demand & adjusts engine speed; Save $ & use less fuel
  • Ensures 60 Hz output, even at lower speeds for very clean power

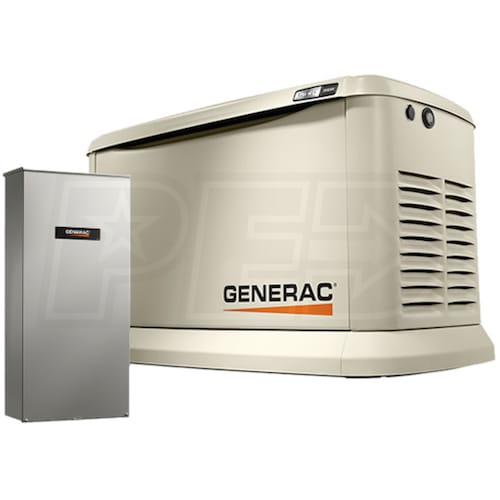

  • 200-Amp Generac Synergy™ Smart Switch w/ Power Mgmt. RTSB200A3
  • DPM technology allows for the smart control of 2 air conditioners
  • Intelligently manage 4 more loads w/ add. PMM Kit/Mods. (Sold Separately)
  • Service Entrance Rated w/ NEMA 3R Aluminum Enclosure
  • Mounts between meter & main service panel; Load & Line breakers
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straighforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enslosure protected from the elements

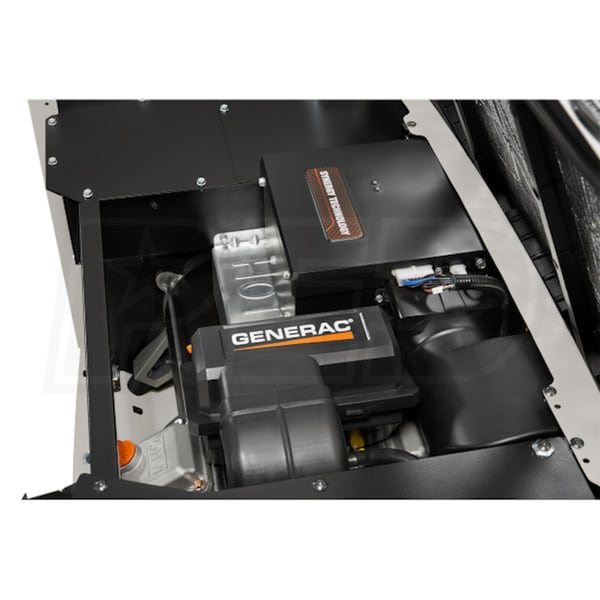

  • Generac OHVI Air-Cooled Engine
  • Full pressure lubrication system w/ 2 year oil change interval
  • Optimized muffler and resonator for dramatically quiter operation

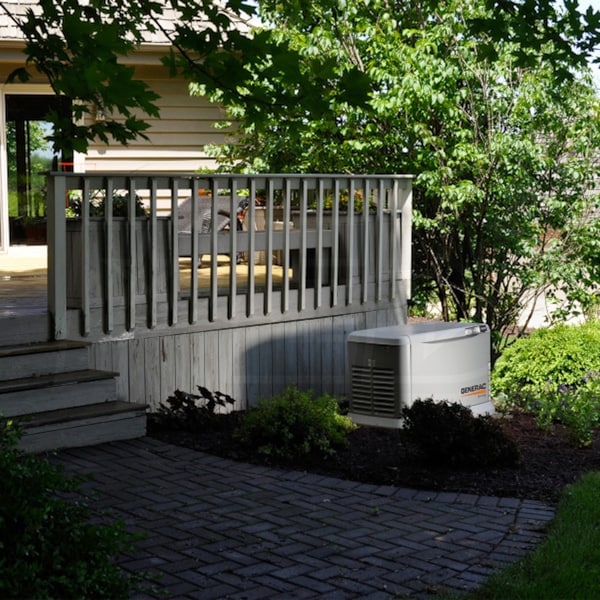

  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local bulding codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

7040-SD
specs product image PID-79528
Overview
Weight
471 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
200 ft³/hr
NG Fuel Consumption @ 100% Load
282 ft³/hr
LP Fuel Consumption @ 50% Load
1.84 gallons/hr
LP Fuel Consumption @ 100% Load
3.5 gallons/hr
Rated Amps
83.3 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Run dbA
Idle Control
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Low Oil Alert/Shutdown
Yes
