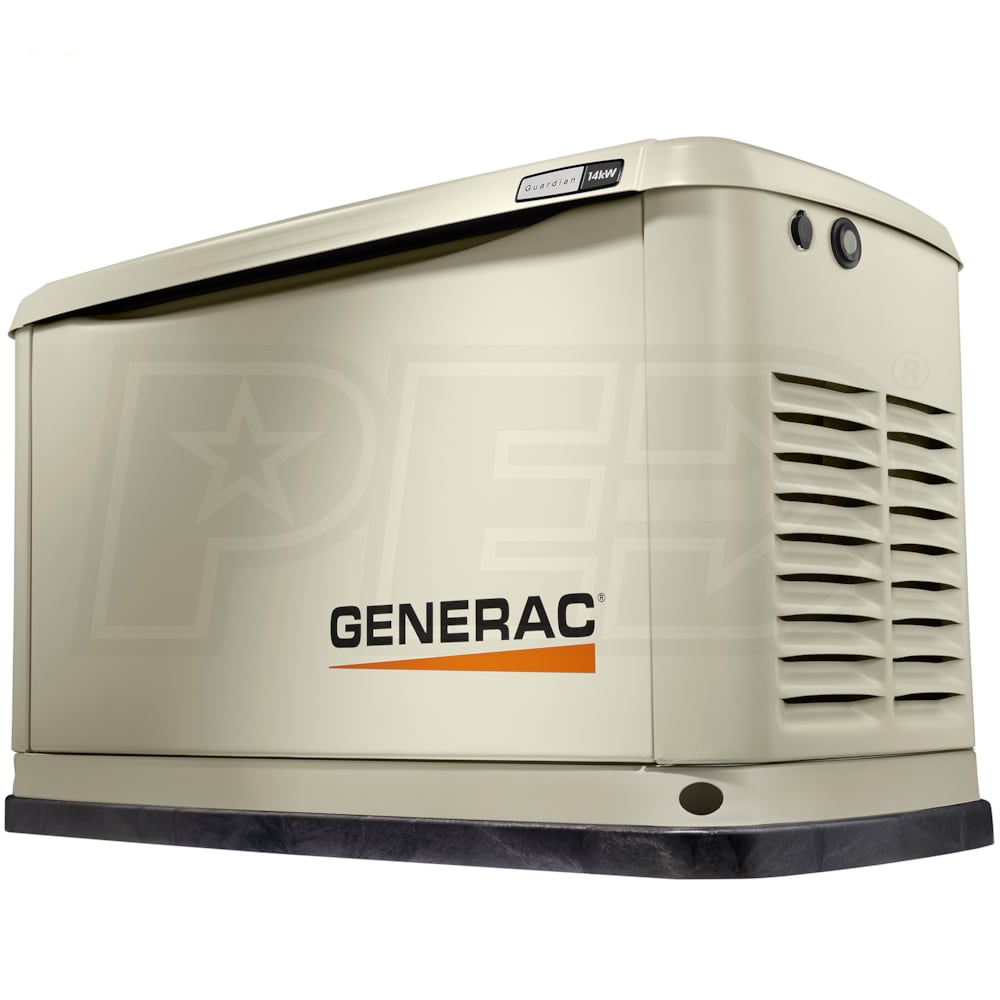

Generac Guardian® 14kW Aluminum Home Standby Generator w/ Wi-Fi

Model:

7223

Write A Review
$4,177.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601
synchrony card logo
$233 / Month
With our 18 months 0.00% APR*
18 fixed monthly payments required.
Generac Guardian® 14kW Aluminum Home Standby Generator w/ Wi-Fi
Generac Guardian® 14kW Aluminum Home Standby Generator w/ Wi-Fi
Model: 7223
$4,177.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

14,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    *Please Note - Some product images display optional fascia base trim kit*
  • 14kw Guardian® Air-Cooled Standby Generator
  • Protects your home and family during a power outage
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • *Automatic Operation Only*
  • Fully automatic operation when paired with Generac Smart Switch
  • NEW Generac G-Force 800 Series Engine
  • Hydraulic lifters for improved performance & less maintenance
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • TRUE POWER™ Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser helps prevent oil seal drying and damage
  • QUIET-TEST™ Self-Test Mode
  • Runs at a lower RPM for a five or twelve minute test
  • Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
  • Corrosion resistant design for all weather conditions
  • Installation Flexibility*
  • Can be installed within 18" of a building
  • *Always check local building codes
  • 5-Year Limited Warranty
  • Plus 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Also Includes
  • Smart battery charger & 14" Flexible fuel line connector
  • Please Note - Battery Not Included (Sold Separately)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

7223
specs product image PID-111024
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
385 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
UPC
696471082548
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
14000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
195 ft³/hr
NG Fuel Consumption @ 100% Load
256 ft³/hr
LP Fuel Consumption @ 50% Load
1.81 gallons/hr
LP Fuel Consumption @ 100% Load
3.07 gallons/hr
Rated Amps
58.3 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55-65
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
60 Amps
A/C Ton Rating
3-Tons
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
816 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes

Reviews

(19)
Generac Guardian 7223 Reviews & Ratings

Product Q&A

(3)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
How large of a generator is needed when installing it as a backup to a battery and solar array?
Tony
from Texas
May 20, 2022
video response icon
Video Response Available
How much fuel does this unit use?
Tom
from Pennsylvania
October 08, 2021
Can a standby generator be operated with a manual transfer switch?
Andy
from Virginia
December 02, 2020

How-To Articles

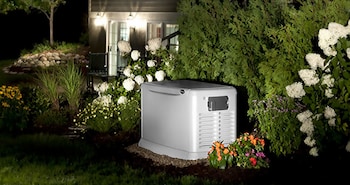

How to Pick the Perfect Home Standby Generator
