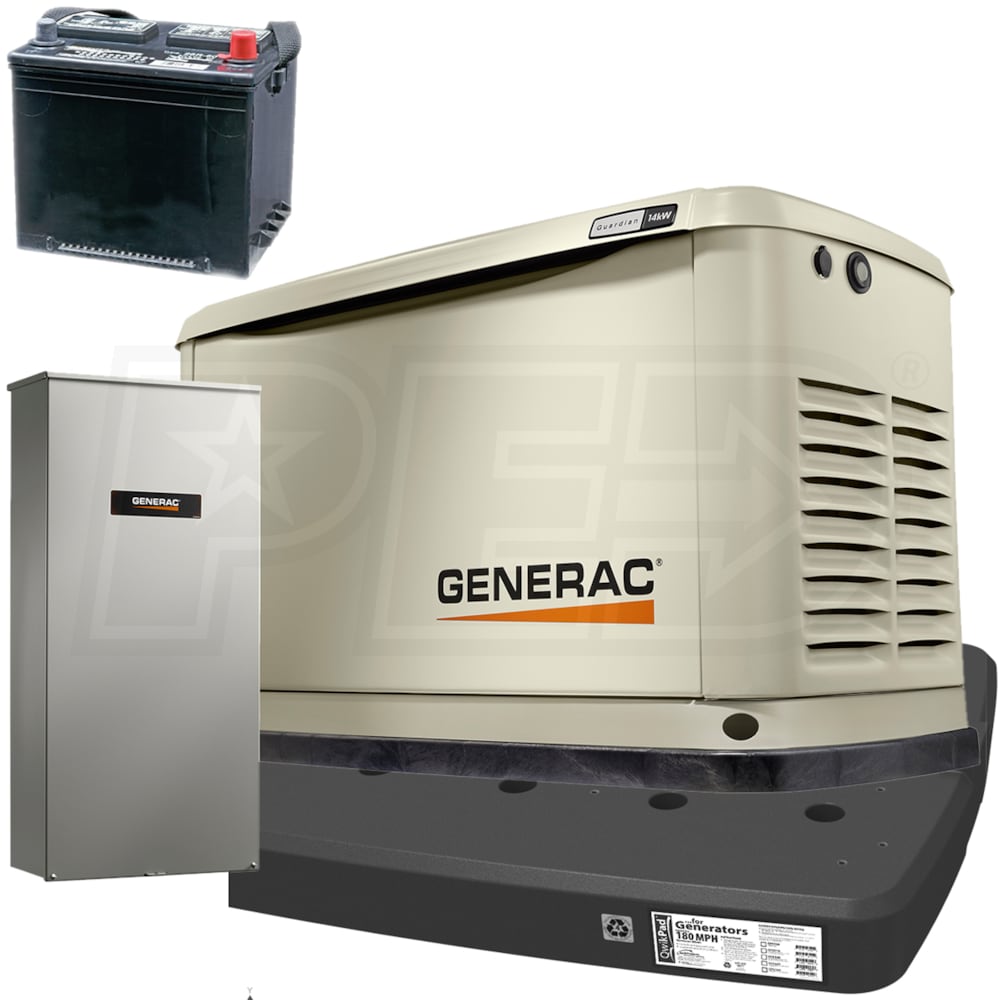

Generac Guardian® 14kW Aluminum Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi + QwikHurricane® Pad + Battery
Model:
EGD-7225-KIT-QP
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
14,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 14k® Guardian Air-Cooled Standby Generator System Package
- Protects your home and family during a power outage
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you

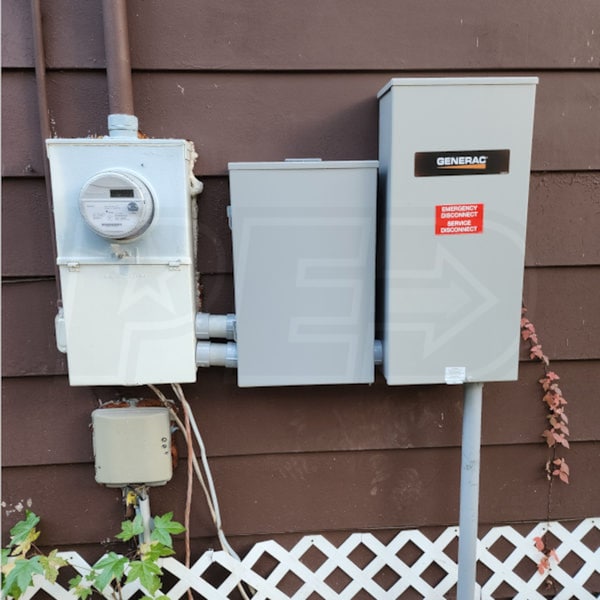

- Includes 200-Amp Service Entrance Rated Automatic Smart Switch
- Installs between main meter & service panel
- Allows for faster and less costly installation
- Standard Smart A/C Management Module
- Allows for the Smart Control of (4) A/C units
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Add Up To (8) Generac Load Managers (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- NEW Generac G-Force 800 Series Engine
- Hydraulic lifters for improved performance & less maintenance
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- TRUE POWER™ Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time & maximum motor starting ability
- Evolution™ Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser helps prevent oil seal drying and damage
- QUIET-TEST™ Self-Test Mode
- Runs at a lower RPM for a five or twelve minute test
- Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
- Corrosion resistant design for all weather conditions
- Installation Flexibility*
- Can be installed within 18" of a building
- *Always check local building codes
- Generac Standby Generators & Engines - Built In The USA*
- Built in the USA using domestic & foreign parts
- Includes Smart Battery Charger & 14" Flexible Fuel Line Connector
- Also Includes

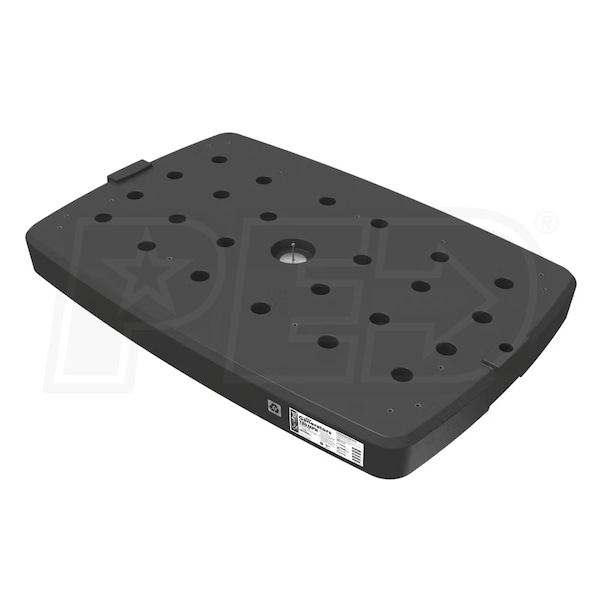

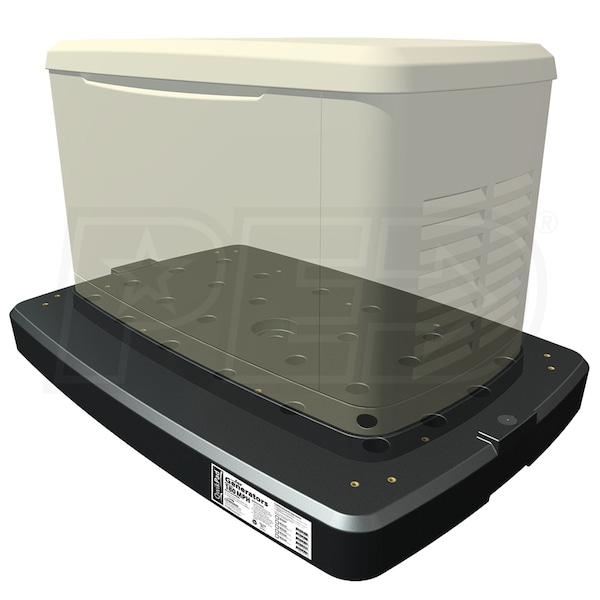

- QwikHurricane® Generator Pad & Starting Battery
- Automatic Transfer Switch Model # RXSW200A3
*Please Note - Some product images display optional fascia base trim kit*
Product Includes
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
EGD-7225-KIT-QP

General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
385 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25.1 Inches
Product Height
28.5 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
14000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
195 ft³/hr
NG Fuel Consumption @ 100% Load
256 ft³/hr
LP Fuel Consumption @ 50% Load
1.81 gallons/hr
LP Fuel Consumption @ 100% Load
3.07 gallons/hr
Rated Amps
58.3 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55-65
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Aluminum
Circuit Breaker Size
60 Amps
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
816 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
7225
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
385 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25.1 Inches
Product Height
28.5 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
14000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
195 ft³/hr
NG Fuel Consumption @ 100% Load
256 ft³/hr
LP Fuel Consumption @ 50% Load
1.81 gallons/hr
LP Fuel Consumption @ 100% Load
3.07 gallons/hr
Rated Amps
58.3 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55-65
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
60 Amps
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
816 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
QT8230
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Product Length
56.5 Inches
Product Width
38 Inches
Product Height
5 Inches
5819
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
